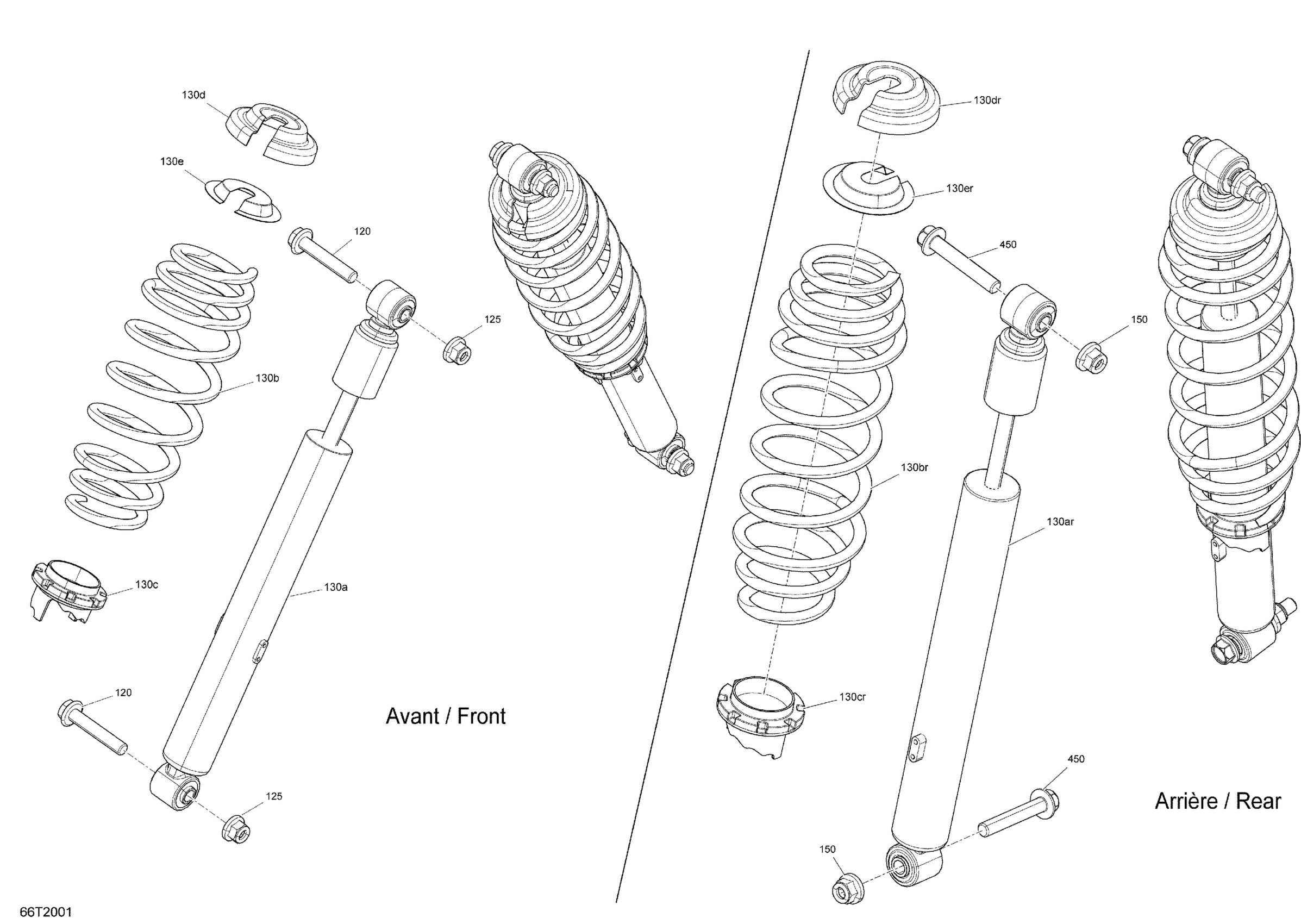

Can-Am Outlander 450 EFI - 2020 Shocks - DPS Diagram

Description

Price

120

Hex. Flange Screw M10 X 55

207605546

$2.00

125

Hex. Flange Elastic Nut M10

233201436

$2.00

130a

Front Shock

706201163

$148.48

130b

Deep Black, Compression Spring

706205113

$108.18

130c

Adjuster Ring

706002356

$16.39

130d

Spring Stopper

706200881

$11.82

130e

Cap

706200785

$4.28

130ar

Rear Shock

706001524

$129.07

130br

Deep Black, Compression Spring

706004873

$72.36

130cr

Adjuster Ring

706002356

$16.39

130dr

Spring Stopper

706200881

$11.82

130er

Cap

706200785

$4.28

150

Hex. Flange Elastic Nut M10

233201436

$2.00

450

Hex. Flange Screw M10 X 6

207606046

$3.88
