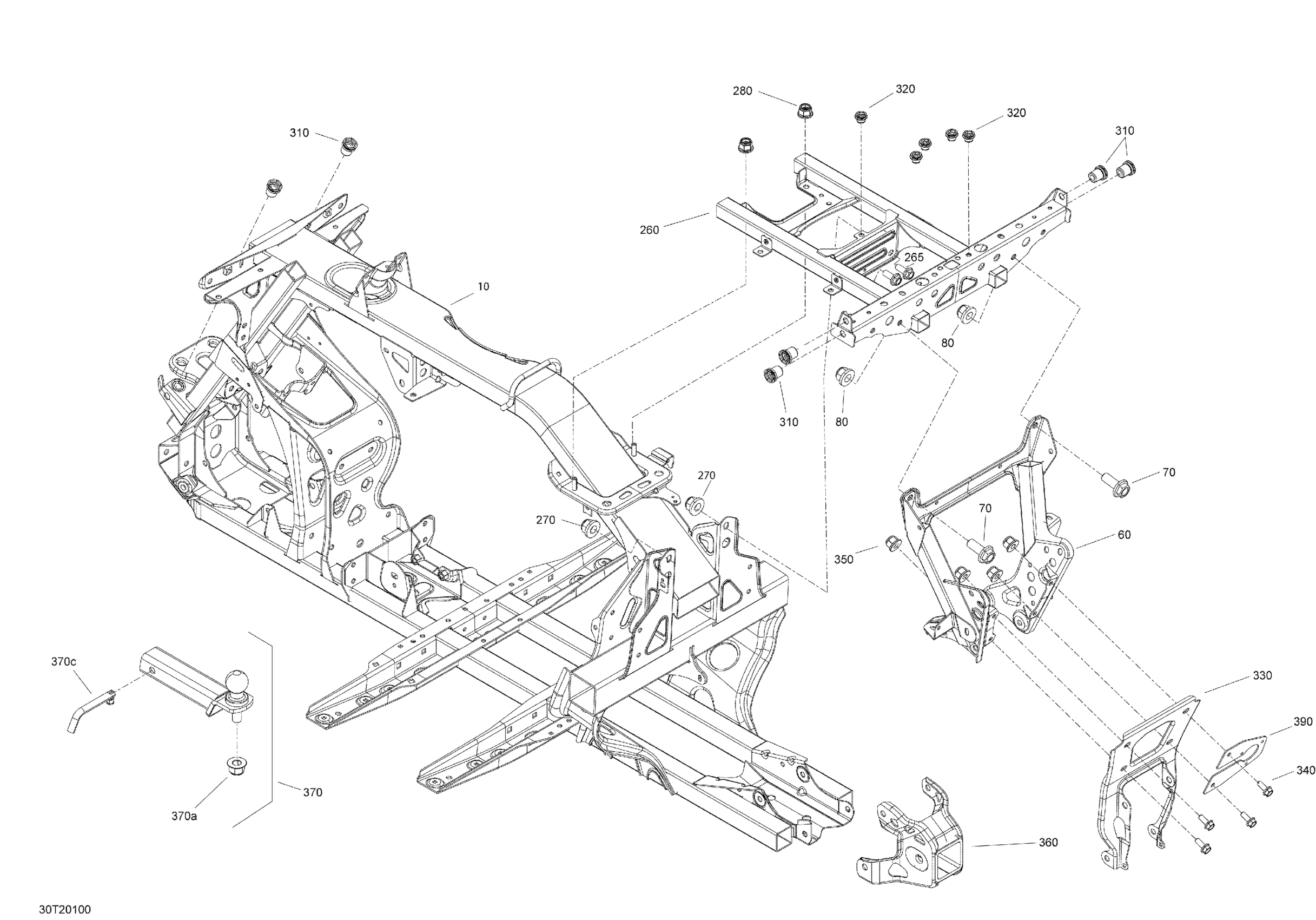

Can-Am Outlander T 1000 EFI - T Regulation, 2020 Frame Diagram

#

Description

Price

10

Chassis

705210815

Unavailable

60

Rear Pillar

705210818

Unavailable

70

Hex. Flange Screw M10 X 25

207602546

Unavailable

80

Hex. Flange Elastic Nut M10

233201436

Unavailable

260

Chassis Extension

705210821

Unavailable

265

Hex. Flange Screw M10 X 25

207602546

Unavailable

270

Hex. Flange Elastic Nut M10

233201436

Unavailable

280

Hex. Flange Elastic Nut M8

233281414

Unavailable

310

Insert Half Hex Body M8 x 1.25

293450307

Unavailable

320

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

330

Rear Support

705203301

Unavailable

340

Hex. Flange Screw M8 X 20

207682046

Unavailable

350

Hex. Elastic Flange Nut M8

233281416

Unavailable

360

Trailer Hitch

715005186

Unavailable

370

Trailer Hitch Kit | Includes 7 To 11

705210320

Unavailable

370a

Elastic Flange Nut M20

250100104

Unavailable

370c

Hitch Pin

705204490

Unavailable

390

Trailer connector Support

705206416

Unavailable
