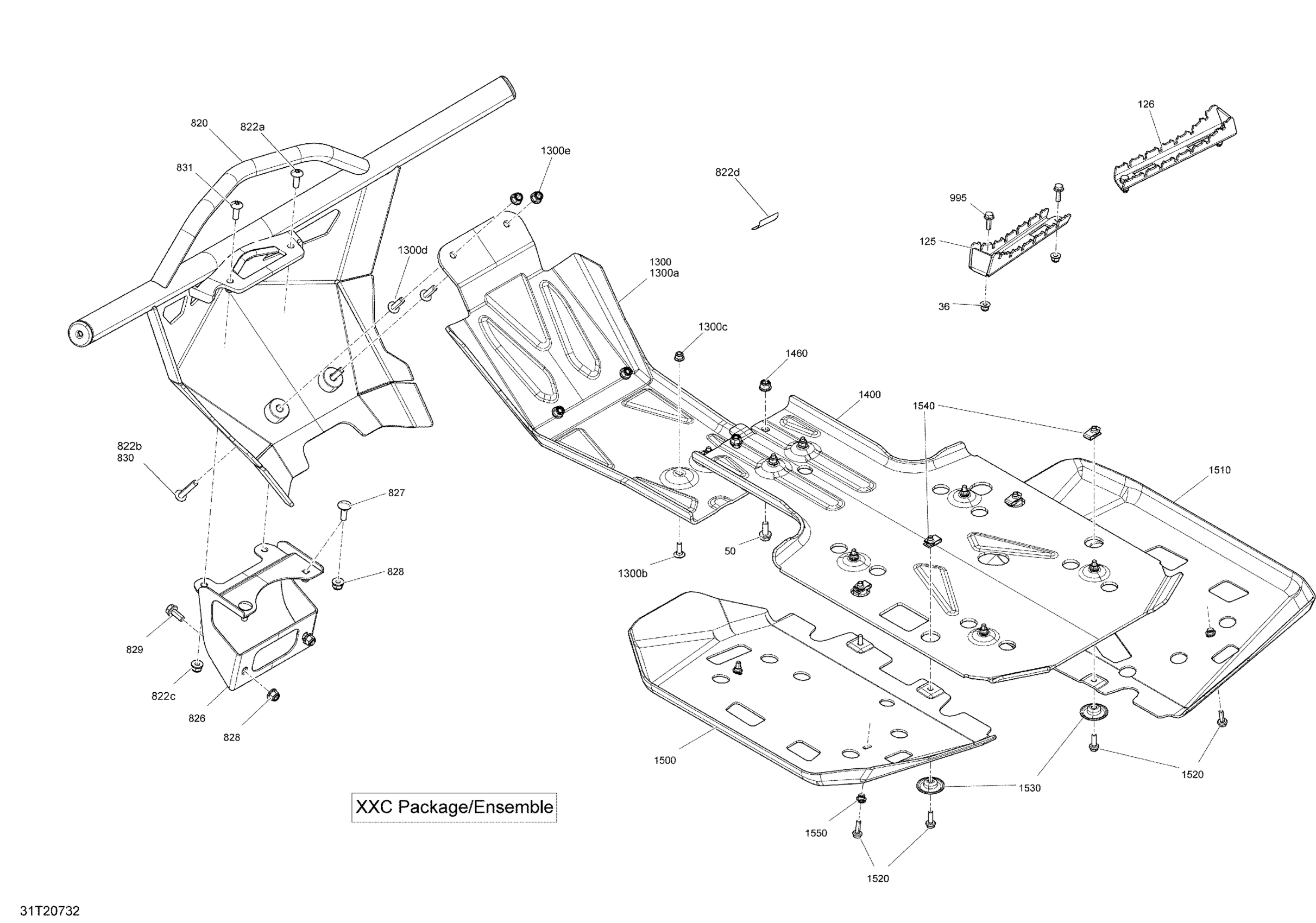

Can-Am Outlander 1000R EFI - XT_XTP_XXC - 2020 Body - Front Bumper And Skid Plate - XXC Diagram

Description

Price

Flange Elastic Nut M6

233261434

$3.61

Hex. Flange Screw M8 X 20

207682044

$0.92

125

LH Footrest

705004352

$34.58

126

RH Footrest

705005395

$39.97

820

Front Bumper Kit | Package XXC

715005863

$859.97

822a

Torx Truss M8 X 25

250000874

$1.74

822b

Torx Truss Screw M8 X 50

250000761

$6.18

822c

Hex. Flange Elastic Nut M8

233281434

$1.74

822d

Warning Decal Bumper

704906938

Unavailable

826

Bumper Support

705012722

$73.82

827

Carriage Bolt, M8 X 25 | XXC

207782544

$1.31

828

Hex. Flange Elastic Nut M8

233281434

$1.74

829

Hex. Flange Screw M8 X 25

207682534

$1.06

830

Torx Truss Screw M8 X 50

250000761

$6.18

831

Torx Truss M8 X 25

250000874

$1.74

995

Hex. Flange Screw M6 X 20

207662034

$1.74

1300

Front Skid Plate | Package Hunter

715000926

$104.99

1300a

Decal "Can-Am" | Not Shown

704904566

$9.25

1300b

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

1300c

Flange Elastic Nut M6

233261434

$3.61

1300d

Hex Torx Truss M8 X30

250000745

$3.05

1300e

Hex. Flange Elastic Nut M8

233281434

$1.74

1400

Central Skid Plate | Package-XXC

705204031

$166.12

1460

Hex. Flange Elastic Nut M8

233281434

$1.74

1500

LH Skid Plate | Package Hunter

705010659

$115.35

1510

RH Skid Plate | Package Hunter

705010660

$115.35

1520

Hex. Flange Screw M6 X 20

207662054

$0.83

1530

Cup | Package Hunter

705007171

$6.18

1540

Panel Nut M6 X 1.0

250100198

$1.73

1550

Insert Half Hex Body M6 x 1.0

250100199

$2.54
