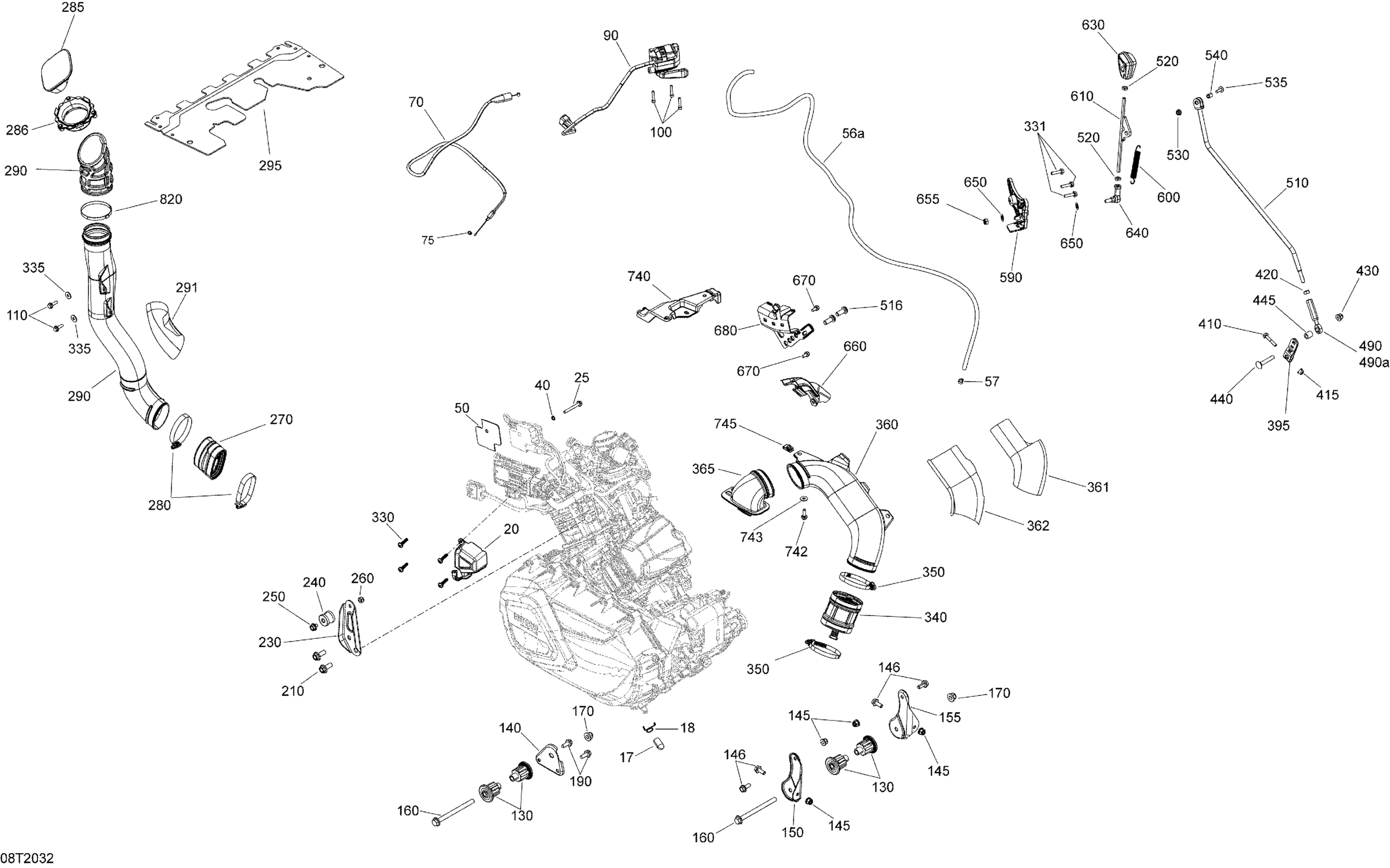

Can-Am Outlander MAX 6X6 - 650 EFI - 2020 Engine Diagram

#

Description
Price

17

Plug

707001185

$1.37

18

Retainer Clip

707800506

$10.98

20

Cover

707000945

Unavailable

25

Hex. Flange Screw M6 X 50

207665044

Unavailable

40

External Serrated Lock Washer 6 mm

234461608

Unavailable

50

Insulator Pad

710000073

$11.06

56a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

Unavailable

57

Oetiker Clamp | Europe

293650044

Unavailable

70

Throttle Cable

707000955

$12.91

75

Cable Guide

707000434

Unavailable

90

Throttle Handle

707001518

Unavailable

100

Socket Head Screw M5 X 25

205052588

$1.56

110

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

Unavailable

130

Vibration Damper

707001169

$41.51

140

Engine Support

707003319

Unavailable

145

Hex. Elastic Flange Nut M8

233281416

Unavailable

146

Hex. Flange Screw M8 X 20

207682046

Unavailable

150

LH Rear Engine Bracket

707001191

$9.23

155

RH Rear Engine Bracket

707001192

$9.23

160

Hex. Flange Screw M10 X 125

230602546

Unavailable

170

Hex. Flange Elastic Nut M10

233201436

Unavailable

190

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

210

Hex. Flange Screw M10 X 25

207602544

Unavailable

230

Upper Engine Bracket

707001256

$11.83

240

Rubber Isolator

707000949

Unavailable

250

Flange Screw M8 x 10, Scotch Grip

207581046

$3.99

260

Hex. Elastic Stop Nut M8

232581414

Unavailable

270

Flexibale Adaptor

707002585

$14.75

280

Norma Clamp

293650091

Unavailable

285

CVT Filter

707001786

Unavailable

286

CVT Inlet

707001864

Unavailable

290

CVT Air Inlet

707002067

Unavailable

291

Heat Shield

707001654

$2.75

295

Upper Water Deflector

707001124

Unavailable

330

Screw PT K60 X 30

250000949

$1.74

331

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

Unavailable

335

Flat Washer M6, Stainless

234062600

Unavailable

340

CVT Air Outlet Adaptor

707001168

$15.35

350

Norma Gear Clamp

293650118

Unavailable

360

Air Outlet

706600019

$36.89

361

Heat Shield

707001205

$9.29

362

Heat Shield

707001206

$9.29

365

CVT Cooling Duct Out

706600400

Unavailable

395

Lever

707000911

$18.43

410

Hex. Flange Screw M6 X 35

207663544

Unavailable

415

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

420

Hex. Nut M8, LH Threads

250100144

$1.64

430

Hex. Flange Elastic Nut M8

233281414

Unavailable

440

Carriage Bolt M8 X 30

207783044

Unavailable

490

Ball Joint Ass'y | Includes 55 to 56

707000966

$35.35

490a

Hex. Jam Nut M8

232180600

Unavailable

510

Shifter Rod

707002068

$32.28

516

Screw Socket M10 X 25 | Europe

205402556

$3.25

520

Hex. Jam Nut M8

232180600

Unavailable

530

Hex. Flange Nut M6

233161414

Unavailable

535

Torx Screw M6 X 20, Scotch Grip

250000446

Unavailable

540

Bushing

293900019

$7.37

590

Lever Support

707003054

Unavailable

600

Spring

707000577

$10.03

610

Shift Arm | Except Europe

707000840

$15.22

630

Lever Trim

707003211

Unavailable

640

RH Ball Joint

707001959

$35.35

650

Washer

506151252

Unavailable

655

Hex. Elastic Stop Nut M8

232581414

Unavailable

660

Cover OPS

707000410

$12.91

670

Hex. Flange Screw M6 X 12

210261250

Unavailable

680

Cable Support

707003053

Unavailable

740

Air Outlet Support

707001262

$7.69

742

Hex. Flange Screw M6 X 20

207662044

Unavailable

743

Flat Washer 6 mm

234062410

Unavailable

745

Panel Nut M6 X 1.0

250100198

Unavailable

820

Crimp Clamp

293650240

Unavailable
