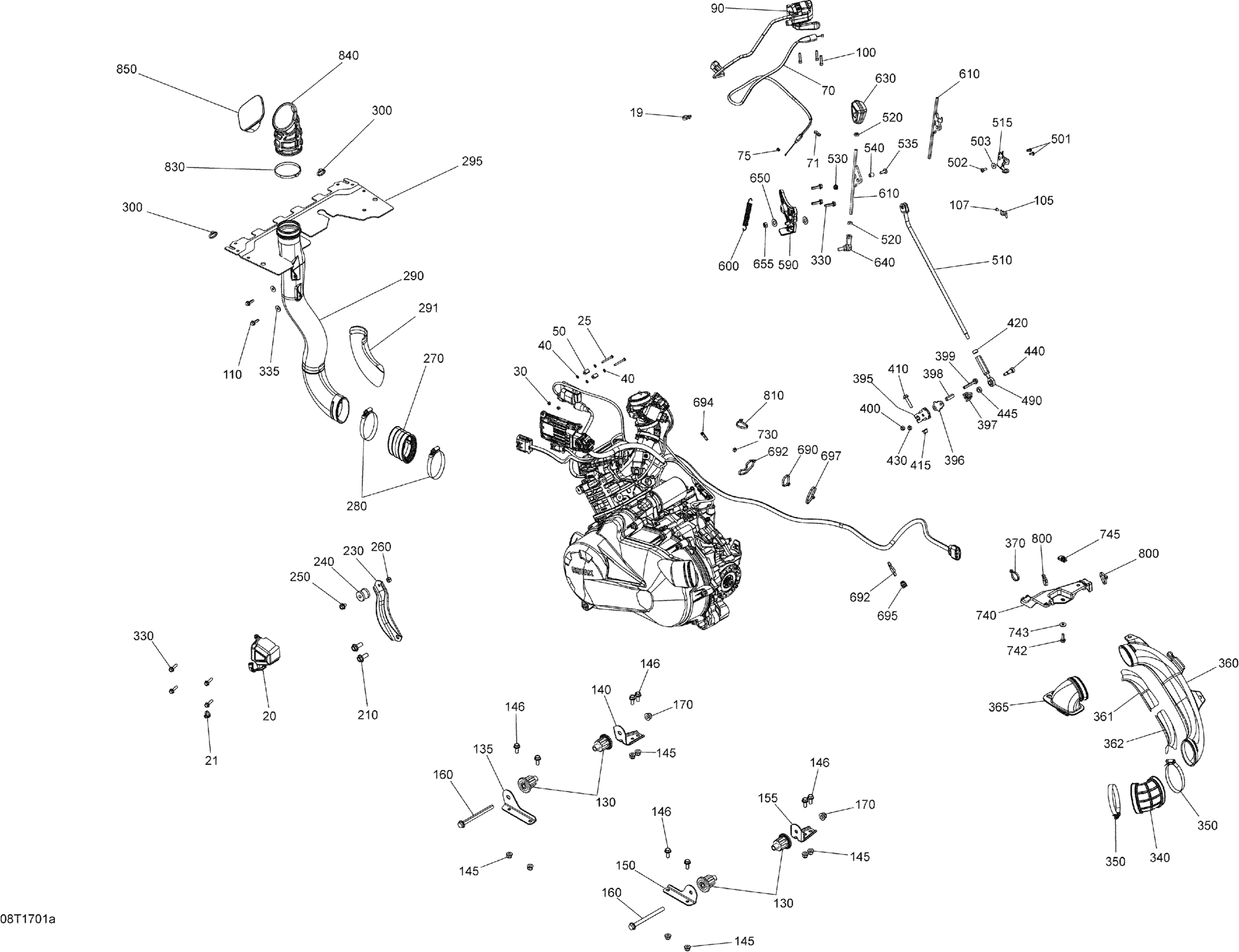

Can-Am Outlander L - 450 EFI - PRO Package 0003NHA00 0003NHB00 0003NHD00 0003NHE00 Engine And Engine Support - 450 EFI Diagram

#

Description
Price

19

Tie-Rap 180 mm

414115200

$0.09

20

Cover

707000945

$6.45

21

Tie Wrap 142 mm

293750002

$0.88

25

Hex. Cap Screw

207144044

$0.98

30

Elastic Stop Nut M4

232541414

$0.48

40

Flat Washer 4 mm

234040600

$0.46

50

Bushing

293900117

$2.09

70

Throttle Cable

707000955

$12.91

71

Tie-Rap 180 mm

414115200

$0.09

75

Cable Guide

707000434

$10.52

90

Throttle Handle | 4X4

707000595

$73.82

100

Socket Head Screw M5 X 25

205052588

$1.56

105

Speed Limiter | Europe

707000573

$12.68

107

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

110

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

130

Vibration Damper

707001169

$41.51

135

LH Front Engine Bracket

707001407

$13.08

140

RH Front Engine Bracket

707001408

$13.08

145

Hex. Elastic Flange Nut M8

233281416

$1.25

146

Hex. Flange Screw M8 X 20

207682046

$1.82

150

LH Rear Engine Bracket

707001409

$13.08

155

RH Rear Engine Bracket

707001410

$13.08

160

Hex. Flange Screw M10 X 125

230602546

$6.08

170

Hex. Flange Elastic Nut M10

233201436

$1.74

210

Hex. Flange Screw M10 X 25

207602544

$1.33

230

Upper Engine Bracket

707001411

$10.77

240

Rubber Isolator

707000949

$9.00

250

Flange Screw M8 x 10, Scotch Grip

207581046

$3.99

260

Hex. Elastic Stop Nut M8

232581414

$0.47

270

Flexibale Adaptor

707002585

$14.75

280

Norma Clamp

293650091

$4.60

290

CVT Air Inlet

707002289

$46.12

291

Heat Shield

707001638

$3.08

295

Upper Water Deflector

707001124

$23.05

300

Tie-Rap 180 mm

414115200

$0.09

330

Hex. Flange Screw M6 X 25

207562544

$1.39

335

Flat Washer M6, Stainless

234062600

$0.64

340

CVT Air Outlet Adaptor

707001425

$17.66

350

Norma Clamp

293650091

$4.60

360

CVT Air Outlet

707001413

$36.89

361

Heat Shield

707001639

$2.98

362

Heat Shield

707001641

$2.98

365

CVT Cooling Duct Out

706600400

$50.74

370

Tie-Rap 180 mm

414115200

$0.09

395

Lever

707000503

$36.89

396

Pivot Plate

707000507

$7.69

397

Spring

707000310

$9.37

398

Bushing

293900079

$8.49

399

Hex. Flange Screw M6 X 40

207664044

$2.18

400

Elastic Stop Nut M6

232561414

$1.55

410

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

415

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

420

Hex. Nut M8, LH Threads

250100144

$1.64

430

Elastic Stop Nut M6

232561414

$1.55

440

Socket Head Screw M8 X 16

250000669

$2.61

445

Bushing

293900028

$12.91

490

Ball Joint Ass'y | Includes 55 to 56

707000966

$35.35

501

Socket Head Screw M5 X 10

205951046

$2.38

502

Torx Screw K50 X 16

250000720

$1.39

503

Washer | DS 650 X

391301600

$0.48

510

Shifter Rod

707001414

$36.89

515

Fixing Plate | Europe

707001042

$36.89

520

Hex. Jam Nut M8

232180600

$0.56

530

Hex. Flange Nut M6

233161414

$1.74

535

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

540

Bushing

293900019

$7.37

590

Lever Support

707003054

$6.45

600

Spring

707000577

$10.03

610

Shift Arm | Except Europe

707000840

$15.22

610

Shift Arm | Europe

707001003

$16.12

630

Lever Trim

707003211

$7.95

640

RH Ball Joint

707001959

$35.35

650

Washer

506151252

$3.11

655

Hex. Elastic Stop Nut M8

232581414

$0.47

690

Tie-Rap 180 mm

414115200

$0.09

692

Tie-Rap 180 mm

414115200

$0.09

692

Tie-Rap 180 mm

414115200

$0.09

694

Tie-Rap 180 mm

414115200

$0.09

695

Tie-Rap Clip

710002896

$4.60

697

Tie-Rap 180 mm

414115200

$0.09

730

Oetiker Clamp

293650100

$2.74

740

Air Outlet Support

707001262

$7.69

742

Hex. Flange Screw M6 X 20

207662044

$1.66

743

Flat Washer 6 mm

234062410

$0.64

745

Panel Nut M6 X 1.0

250100198

$1.73

800

Tie-Rap 180 mm

414115200

$0.09

810

Tie-Rap 180 mm

414115200

$0.09

830

Crimp Clamp

293650240

$6.55

840

CVT Inlet

707001864

$64.58

850

CVT Filter

707001786

$17.66
