Description

Price

1a

Drive Gear Ass'y | Includes 1a to 28

420684224

$1,452.28

1b

Bevel Gear Ass’y

420635558

$659.99

2

Washer Thrust Set

420281300

$92.28

3

Ball Bearing 6405

420632280

$93.82

4

O-Ring

420430373

$2.63

5

Oil Seal

420650683

$18.43

6

Ball Bearing

420932822

$29.20

7

Thrust Washer Set, MAG Side

420281306

$59.97

8

Axial Needle Bearing

420632300

$17.66

9a

Gear Wheel Set | 400HO, Includes 2a to 7

420281285

$459.20

9b

Needle Bearing

420632070

$23.05

10

Retaining Ring

420245850

$5.98

11

Sliding Gear 44T

420635582

$143.05

12

Pinion Gear 36T

420635572

$95.35

13

Thrust Washer

420427010

$3.08

14

Pinion Gear 36T

420635572

$95.35

15

Thrust Washer Set, CVT Side

420281302

$83.05

16a

Countershaft Ass'y, 11 Teeth | Includes 10 to 18

420620441

Unavailable

16b

Countershaft 11T

420220972

$133.82

17

Thrust Washer

420227862

$3.08

18

Needle Bearing

420632070

$23.05

19

Pinion Gear 25T

420635602

$73.82

20

Circlip

420445302

$4.03

21

Pinion Gear 16T

420635214

$69.20

22

O-Ring

420631612

$3.52

23

Distance Ring

420247125

$23.05

24a

INTERMEDIATE GEAR SHAFT ASS'Y - Call your local BRP dealership | Includes 16a to 20

420635673

$191.51

24b

Needle Pin

420229600

$36.89

25

Intermediate Gear 25T

420635674

$87.66

26

Needle Cage

420432034

$34.58

27

Thrust Washer

420944192

$2.31

28

Distance Ring

420247122

$8.29

29

Pin

420229540

$23.05

30

Shift Fork

420257332

$119.97

31

Shift Fork

420257342

$96.89

32

Shift Drum

420257329

$175.35

33

Isolating Washer

420627782

$5.52

34

Index Spring

420238290

$11.06

35

Step Ring

420227717

$10.98

36

Index Lever Kit

703500254

$50.74

37

Torx Screw M6 X 16

420241529

$1.56

38

Shift Shaft Ass'y

420620136

$91.51

39

Parking Lock Lever

420257316

$55.35

40

Torx Flange Screw M8 X 25

420440372

$4.00

41

Bearing Cover

420610243

$55.35

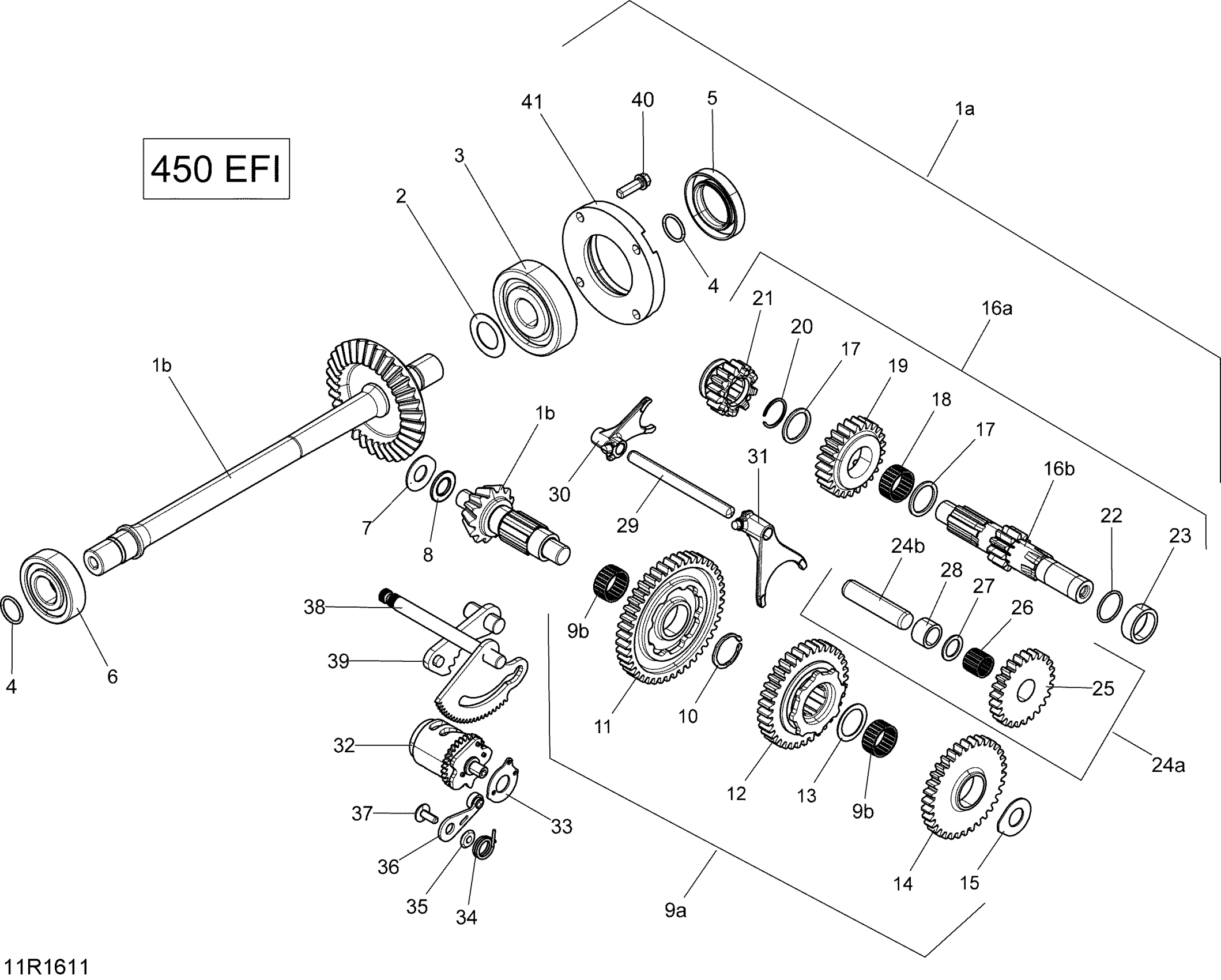

Can-Am Outlander L - 450 EFI - PRO Package 0003NGA00 0003NGB00 0003NGC00 0003NGD00 0003NGE00 Gear Shift - 450 EFI Diagram

Countershaft Ass'y, 11 Teeth | Includes 10 to 18
