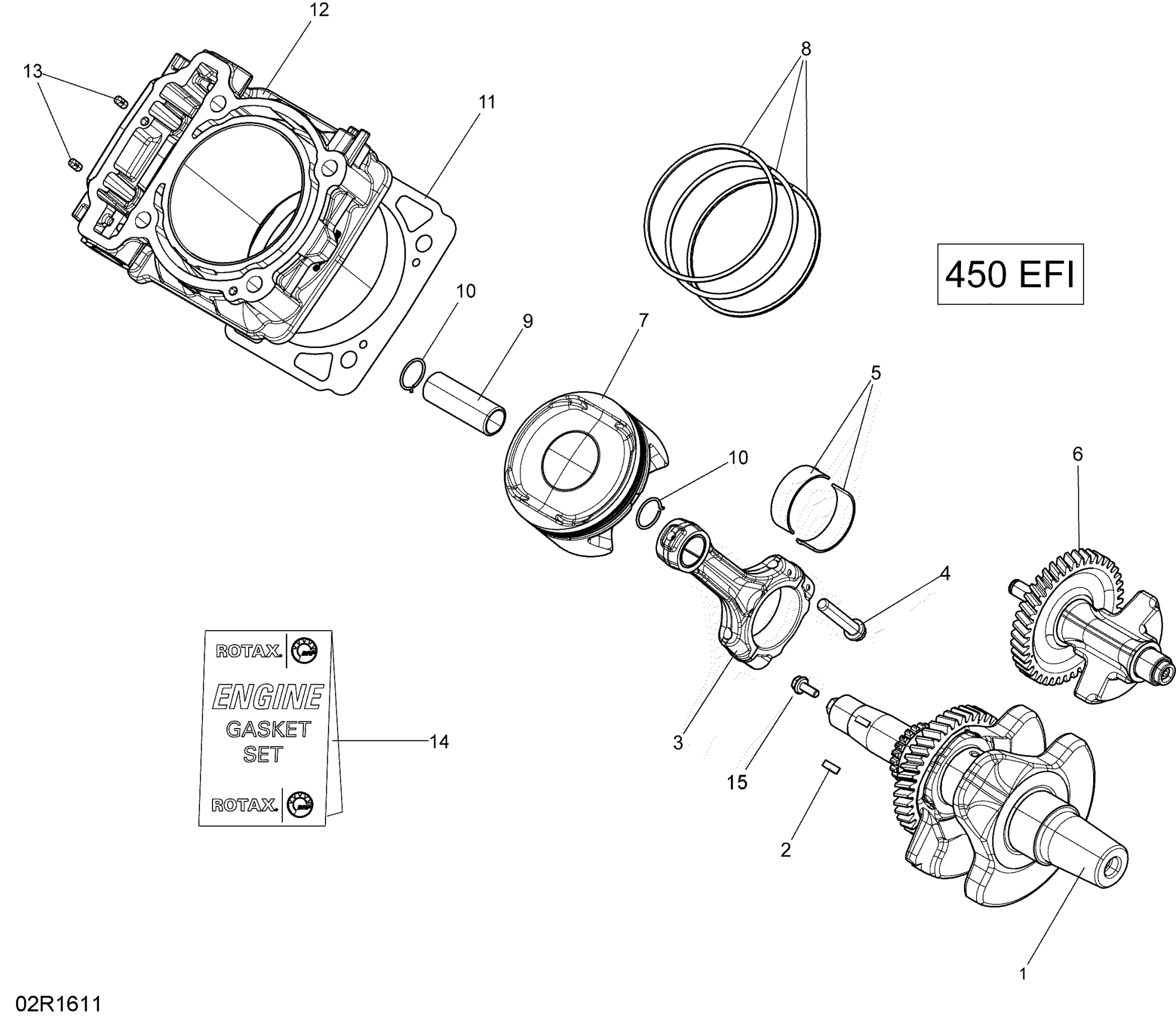

Can-Am Outlander L - 450 EFI - PRO Package 0003NGA00 0003NGB00 0003NGC00 0003NGD00 0003NGE00 Crankshaft and Pistons - 450 EFI; Diagram

#

Description
Price

1

Crankshaft Ass'y

420295030

$670.99

2

Woodruff Key

420246571

$3.61

3

Connecting Rod Ass’y | Includes 3 to 4

420217425

$223.24

4

Connecting Rod Screw M8 X 1

420641645

$13.18

5

Plain Bearing 40 X 43 X 15

420233980

$26.09

6

Balance Shaft

420637455

$415.64

7

Piston Ass'y, 93.958 mm

420686310

$136.32

8

Piston Ring Set

420686314

$64.59

9

Piston Pin

420216270

$26.69

10

Piston Circlip

420845107

$4.33

11

Gasket

420450330

$12.64

12

Cylinder

420413263

$394.24

13

Drive Pin 5 X 10

420929650

$1.34

14

Gasket Set ( Engine)

420685125

$202.96

15

Hex Screw

295501162

$11.47
