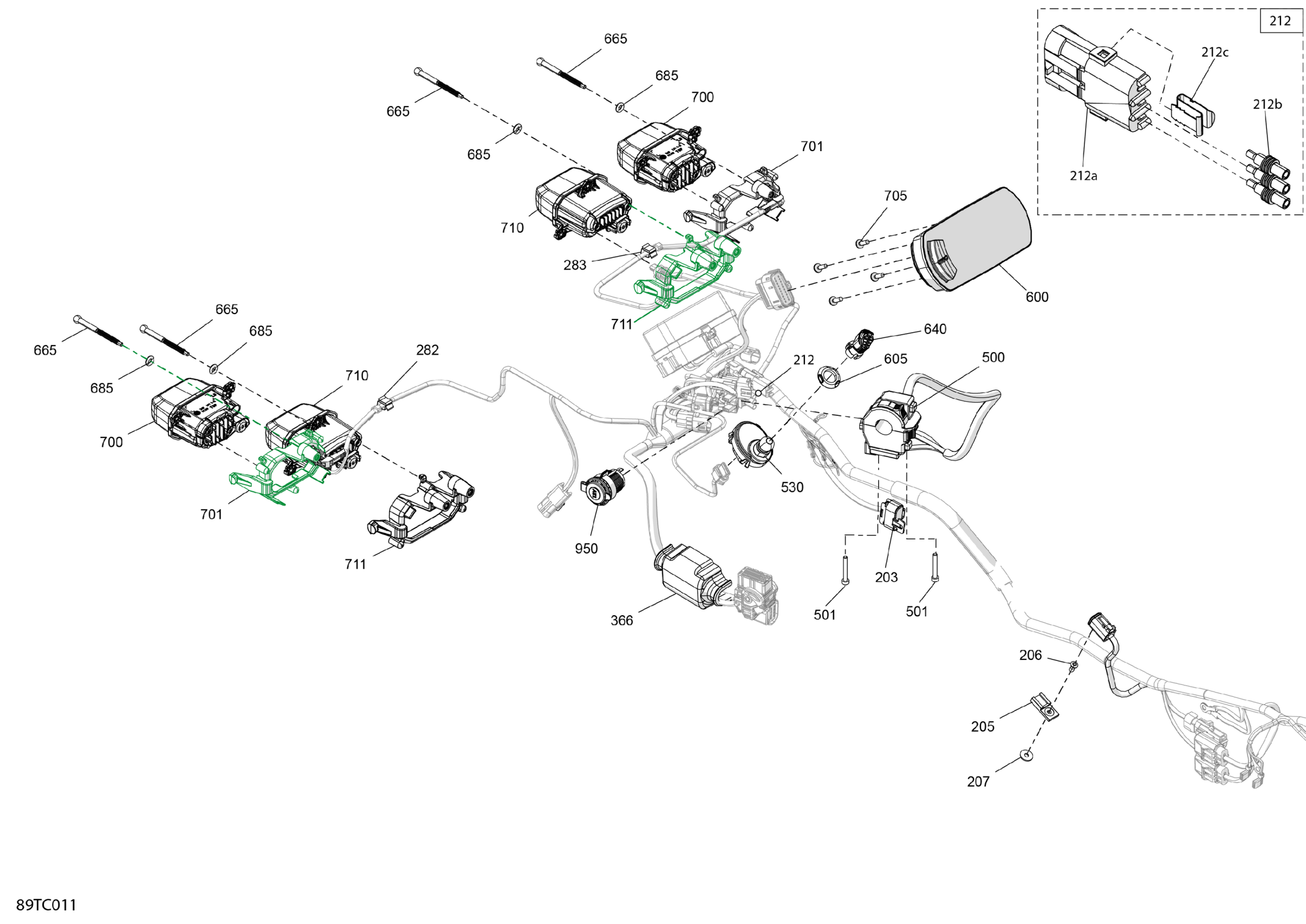

Can-Am Outlander 850 EFI - STD - (2HPB) 2023 Electric - Front Section Diagram

Description

Price

203

DPS Connector Cap | Not Shown

710005760

$15.22

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.64

207

Washer | DS 650 X

391301600

$0.48

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.91

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

212b

Wire Seal

278000216

$2.55

212c

Clip

710000992

$4.00

282

Clip

414227300

$1.45

283

Clip

414227300

$1.45

366

Soft Protection Sleeve

710007255

$2.98

500

Switch Handle

710006134

$69.20

501

Socket Head Screw M5 X 35

205053588

$1.56

530

Terminal Dess One-Wire

515179240

$71.51

600

Multifunction Gauge Compact Mono

710008108

$383.05

605

Safety Nut (DESS Switch)

278002963

$2.72

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

665

Ajustment Screw

710005837

$6.45

685

O-Ring

293300192

$3.85

700

Low Beam Light

710008088

$156.89

701

Exterior Headlight Support

710008396

$27.66

705

Torx Screw K50 X 16

250000720

$1.39

710

HIgh Beam Light

710006910

$156.89

711

Interior Headlight Support

710008394

$9.22

950

DC Outlet

710001248

$31.17
