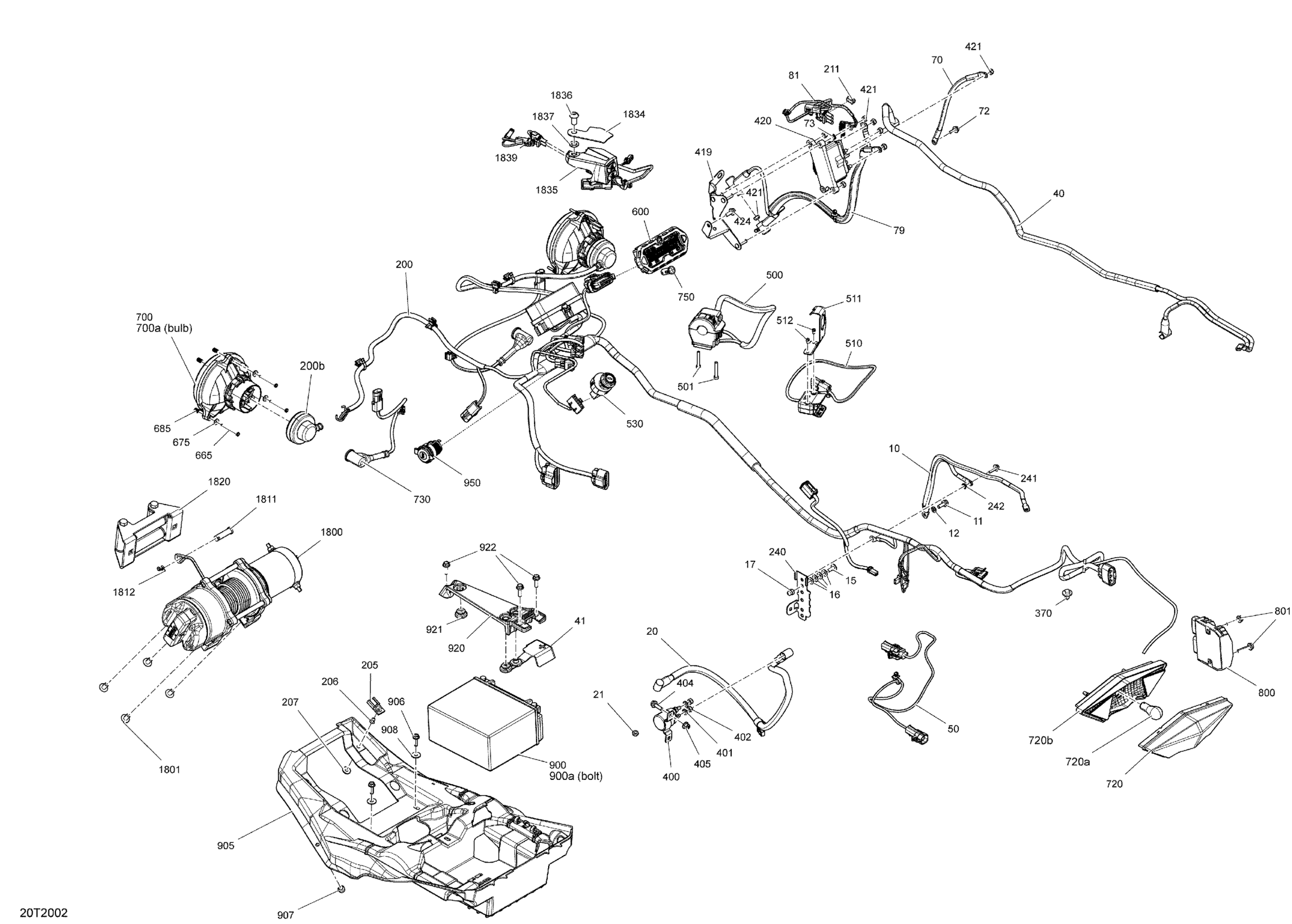

Can-Am Outlander 570 EFI - STD_DPS_XT_HUNTING - 2020 Electrical System Diagram

Ground Cable

710004382

$17.88

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Lock Washer Helical M6

234161601

$1.06

Torx Head Screw M6 X 16

250000717

$2.00

Flat Washer

224061121

$0.51

Domed Nut M6

232361493

$2.03

Positive Cable

710004377

$24.60

Elastic Stop Nut M6

232561414

$1.78

Positive Cable

710004376

$43.25

Connector Ass'y

710004375

$30.57

Battery Cable Cap

710006729

$6.72

Extension Cable 02 Sensor

710005819

$20.12

Negative Cable

710005163

$32.06

Hex. Flange Screw M6 X 16

210261640

$2.00

External Serrated Lock Washer 6 mm

234461608

$1.06

Winch Cable | Model With Winch

710005164

$48.48

Winch Cable

710005246

$39.52

Electric Harness

710006172

$886.54

Harness Ass'y

710006173

$876.84

Fuse Shematic Decal

710003976

Unavailable

Headlamp Protector Cap

710004020

$9.31

Clip

270000141

$9.57

Pop Rivet 3/16"

390402300

$0.73

Washer | DS 650 X

391301600

$0.46

Clip

710000992

$3.88

Connector Bracket

710004118

$5.04

Hex. Flange Screw M6 X 20

210262040

$2.00

External Serrated Lock Washer 6 mm

234461608

$1.06

Mount Dart

293730040

$0.99

Starter Relay

710007777

$45.49

Lock Washer Helical M6

234161601

$1.06

Elastic Stop Nut M6

232561414

$1.78

Hex. Flange Screw M6 X 20

207662054

$0.96

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Module Support

710004935

$18.63

Winch Solenoid | XT Models

710001000

$114.15

Elastic Stop Nut M6

232561414

$1.78

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Multi-Function Handle | Except Model Europe, Except T3

710005072

$58.93

Socket Head Screw M5 X 35

205053588

$1.79

Winch Switch

710005241

$153.70

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$8.84

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.61

Ignition Switch | Except Model Pro, T3

710007864

$79.82

Speedometer | Includes 600 to 600b

710005553

$305.19

Hex. Screw K40 X 45

250000718

$2.00

Flat Washer

517225900

$0.16

Spring

517168600

$6.70

Low Beam

710003900

$101.46

Bulb, 12V 35/35W

710000871

$32.06

Tail Light Housing Ass'y | Includes 29 to 31

710001203

$69.37

Bulb

520000758

$8.60

Male Housing, 3 Circuits

515175494

$14.90

Pilot Lamp Cap

710003910

$3.33

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

Voltage Regulator | Package-DPS, Model-Europe

710005569

$98.48

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

Battery Bolt Kit

250000282

$3.39

Battery Support

710008370

$41.76

Hexagonal Head Screw

210262050

$2.00

Rubber Bumper

293830005

$6.12

Stainless Steel Flat Washer

234062670

$2.00

Retaining Plate

710009129

$7.09

Stopper Rubber

705014429

$6.09

Hex. Flange Screw M6 X 20

207662054

$0.96

DC Outlet

710001248

$35.79

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

Torx Truss Screw M8 X 16

250000746

$3.19

Clevis Pin

250400021

$11.48

Cotter Pin

250400022

$8.40

Fairlead_Roller Kit

715007699

$74.60

Top Plate

715004008

$19.37

Multifonction Housing Ass'y

710004990

$138.78

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$8.67

Washer

503192496

$0.73

Cable

710004567

$12.60
