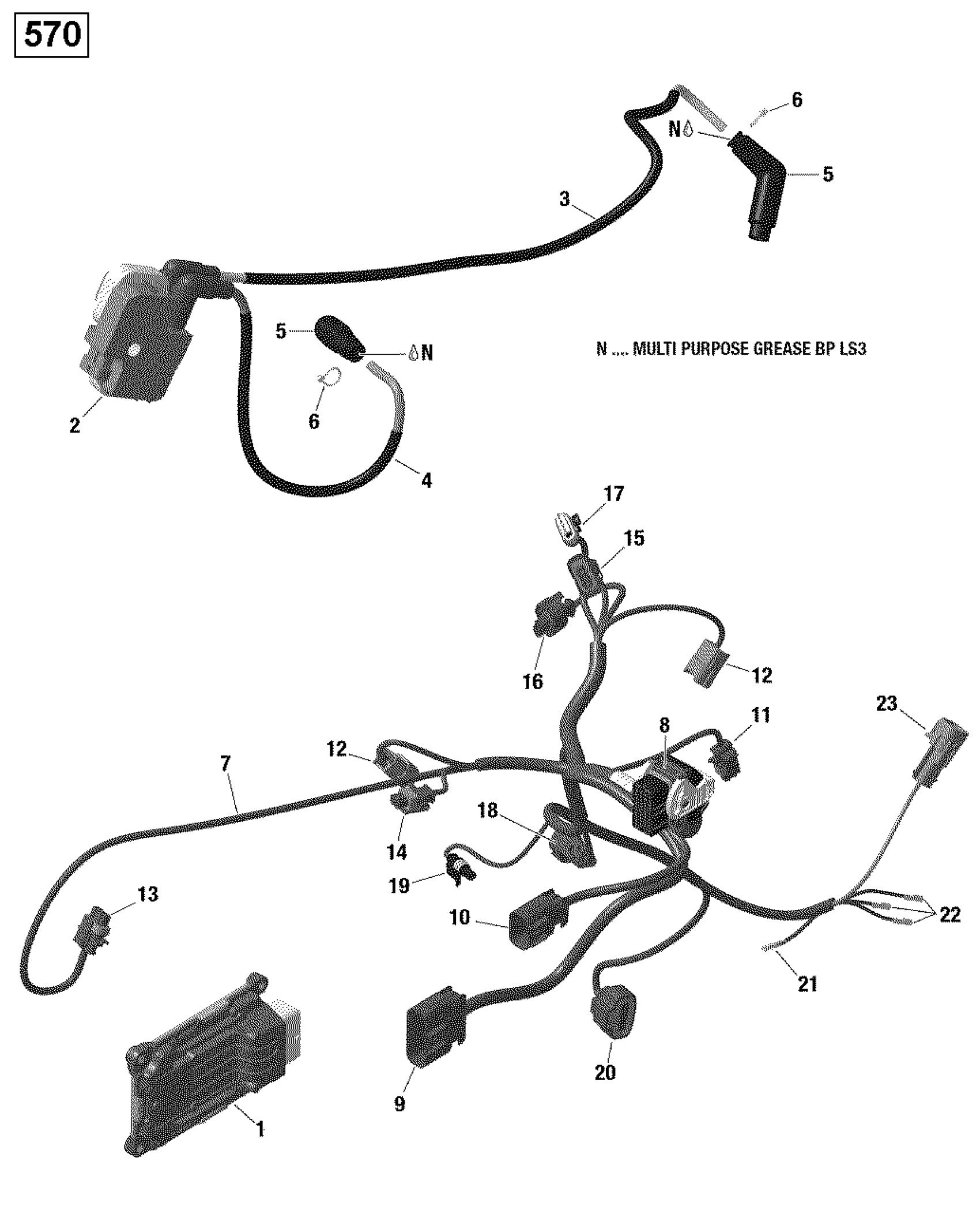

Can-Am Outlander - 570 EFI - PRO Package 0003RGA00 0003RGB00 0003RGD00 0003VGA00 Engine Harness and Electronic Module - 570 EFI (Outlander) Diagram

#

Description
Price

1

ECM, Engine Control Module | XMR Package

420666976

$1,274.99

1

ECM, Engine Control Module | Except MAX Model

420666973

$1,274.99

1

ECM, Engine Control Module | MAX Model

420666974

$1,274.99

2>2a

Ignition Coil

278001546

$129.32

2a

Housing

710000568

$10.83

3

Spark Plug Cable, 790 mm, Rear

420665333

$54.58

4

Spark Plug Cable, 790 mm, Rear

420665333

$54.58

5

Spark Plug Connector

420265248

$31.51

6

Tie Rap

420866710

$4.36

7>23

Engine Wiring Harness

420864691

$415.35

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Housing

710001227

$12.91

10

Housing

710001927

$8.57

11

Male Housing, 2 Circuits

278001005

$15.57

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Male Housing, 3 Circuits

278000997

$15.57

14

Male Housing, 2 Circuits

278001005

$15.57

15

Housing Connector, 3 Circuits

278001829

$17.52

16

Male Connector

515176410

$51.97

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Male Housing

278002378

$10.91

19

Male Housing, 1 Circuit

278001012

$12.65

20

Male Housing, 4 Circuits

710000329

$14.75

21>21a

Female Terminal | DS 650 X

278001009

$2.55

21a

Insulated Sheath

278001007

$3.22

22>22a

Female Terminal | DS 650 X

278001009

$2.55

22a

Insulated Sheath

278001007

$3.22

23

Not Available As Spare Part - Friction Washer

Unavailable
