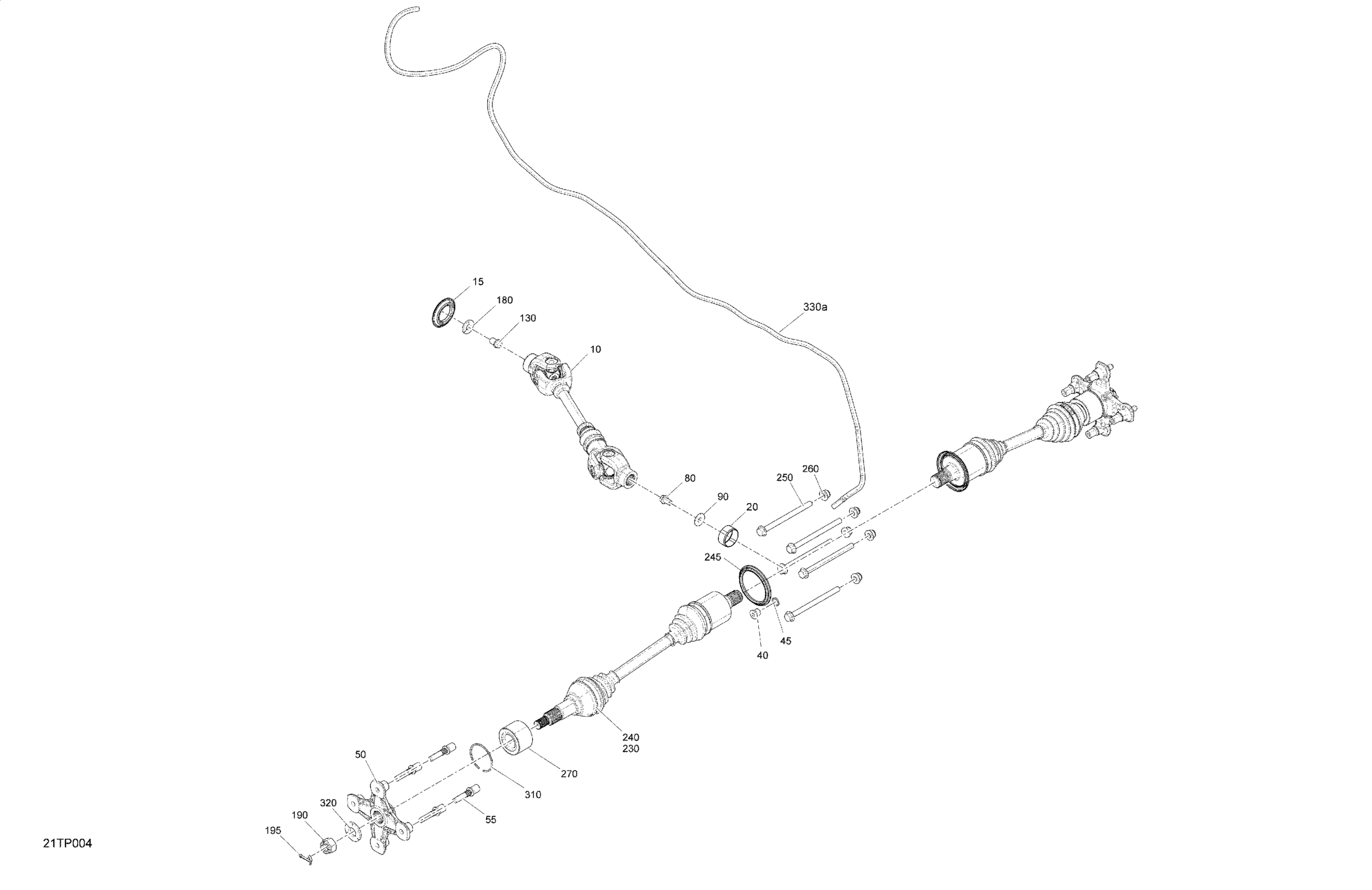

Can-Am Outlander - 570 EFI - PRO Package 0003RGA00 0003RGB00 0003RGD00 0003VGA00 Drive - Rear - Common Parts - MAX Diagram

Description

Price

Shaft Ass'y Kit | T3

703500992

$396.89

Protector

705501123

$7.37

Wear Ring | 4X4

705400036

$25.35

Fill Level Plug | 4X4

705500504

$7.61

Copper Washer | 4X4

705500506

$0.36

Wheel Hub

705501900

$129.20

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$4.62

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

Flat Washer M10 | 4X4

250200014

$1.17

130

Hex Flange Screw M12 X 16

250001039

$1.74

180

Flat Washer M12

250200102

$1.74

190

Hex. Flange Castellated Nut M18

232291413

$2.82

195

Cotter Pin

250400071

$1.74

230

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$233.82

240

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$233.82

245

Wear Ring

705501124

$7.28

250

Hex. Flange Screw M10 X 135

250001041

$4.46

260

Hex. Flange Elastic Nut M10

233201436

$1.74

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.98

320

Conical Spring Washer M18

250200171

$5.28

330a

Polyurethane Hose 10000Mm Long

219704410

$46.12
