Description

Price

10

Ground Cable

710004380

$17.88

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

12

Lock Washer Helical M6

234161601

$1.06

20

Positive Cable | Engine 450

710004381

$17.88

21

Elastic Stop Nut M6

232561414

$1.78

40

Positive Cable

710004376

$43.25

41

Battery Cable Cap

710006729

$6.72

200

Electric Harness

710006172

$886.54

205

Clip

270000141

$9.57

206

Pop Rivet 3/16"

390402300

$0.73

207

Washer | DS 650 X

391301600

$0.46

240

Cable Bracket

707001280

$11.81

241

Hex. Flange Screw M6 X 20

210262040

$2.00

242

External Serrated Lock Washer 6 mm

234461608

$1.06

245

Panel Nut M6 X 1.0

250100198

$1.99

246

Flat Washer 6 mm

234062410

$0.73

247

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

370

Mount Dart

293730040

$0.99

400

Starter Relay

710007777

$45.49

401

Lock Washer Helical M6

234161601

$1.06

402

Elastic Stop Nut M6

232561414

$1.78

404

Hex. Flange Screw M6 X 20

207662054

$0.96

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

500

Multi-Function Handle | Except Model Europe, Except T3

710005072

$58.93

501

Socket Head Screw M5 X 35

205053588

$1.79

530

Switch_Ignition | Model-Europe

710007865

$64.15

600

Speedometer

710006216

$305.19

630

Black, Electronic Key

710000817

$53.70

631

Grey, Electronic Key

710002183

$53.70

665

Hex. Screw K40 X 45

250000718

$2.00

675

Flat Washer

517225900

$0.16

685

Spring

517168600

$6.70

700

Low Beam

710003900

$101.46

700a

Bulb, 12V 35/35W

710000871

$32.06

720

Tail Light Housing Ass'y | Includes 29 to 31

710001203

$69.37

750

Pilot Lamp Cap

710003910

$3.33

800

Voltage Regulator | Package-DPS, Model-Europe

710005569

$98.48

801

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

900a

Battery Bolt Kit

250000282

$3.39

905

Battery Support

710008370

$41.76

906

Hexagonal Head Screw

210262050

$2.00

907

Rubber Bumper

293830005

$6.12

908

Stainless Steel Flat Washer

234062670

$2.00

920

Retaining Plate

710009129

$7.09

921

Stopper Rubber

705014429

$6.09

922

Hex. Flange Screw M6 X 20

207662054

$0.96

950

DC Outlet

710001248

$35.79

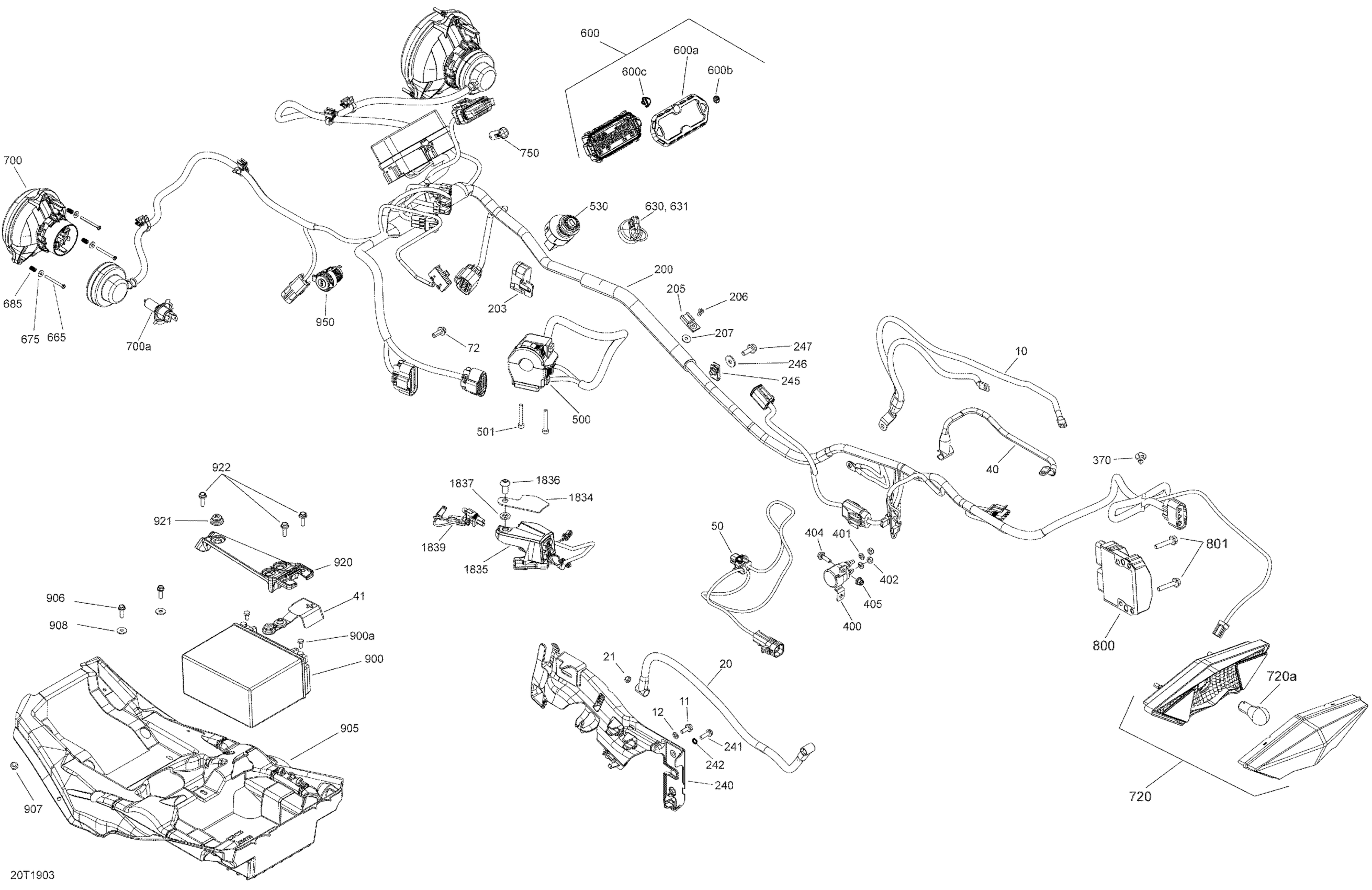

Can-Am Outlander 450 EFI - International - Non European Communities, 2019 Electrical - 450 EFI - PRO Diagram

Ground Cable

Hex. Flange Screw M6 X 16, Scotch Grip

Lock Washer Helical M6

Positive Cable | Engine 450

Elastic Stop Nut M6

Positive Cable

Battery Cable Cap

Electric Harness

Clip

Pop Rivet 3/16"

Washer | DS 650 X

Cable Bracket

Hex. Flange Screw M6 X 20

External Serrated Lock Washer 6 mm

Panel Nut M6 X 1.0

Flat Washer 6 mm

Hex. Flange Screw M6 X 16, Scotch Grip

Mount Dart

Starter Relay

Lock Washer Helical M6

Elastic Stop Nut M6

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Multi-Function Handle | Except Model Europe, Except T3

Socket Head Screw M5 X 35

Switch_Ignition | Model-Europe

Speedometer

Black, Electronic Key

Grey, Electronic Key

Hex. Screw K40 X 45

Flat Washer

Spring

Low Beam

Bulb, 12V 35/35W

Tail Light Housing Ass'y | Includes 29 to 31

Pilot Lamp Cap

Voltage Regulator | Package-DPS, Model-Europe

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

Battery Bolt Kit

Battery Support

Hexagonal Head Screw

Rubber Bumper

Stainless Steel Flat Washer

Retaining Plate

Stopper Rubber

Hex. Flange Screw M6 X 20

DC Outlet
