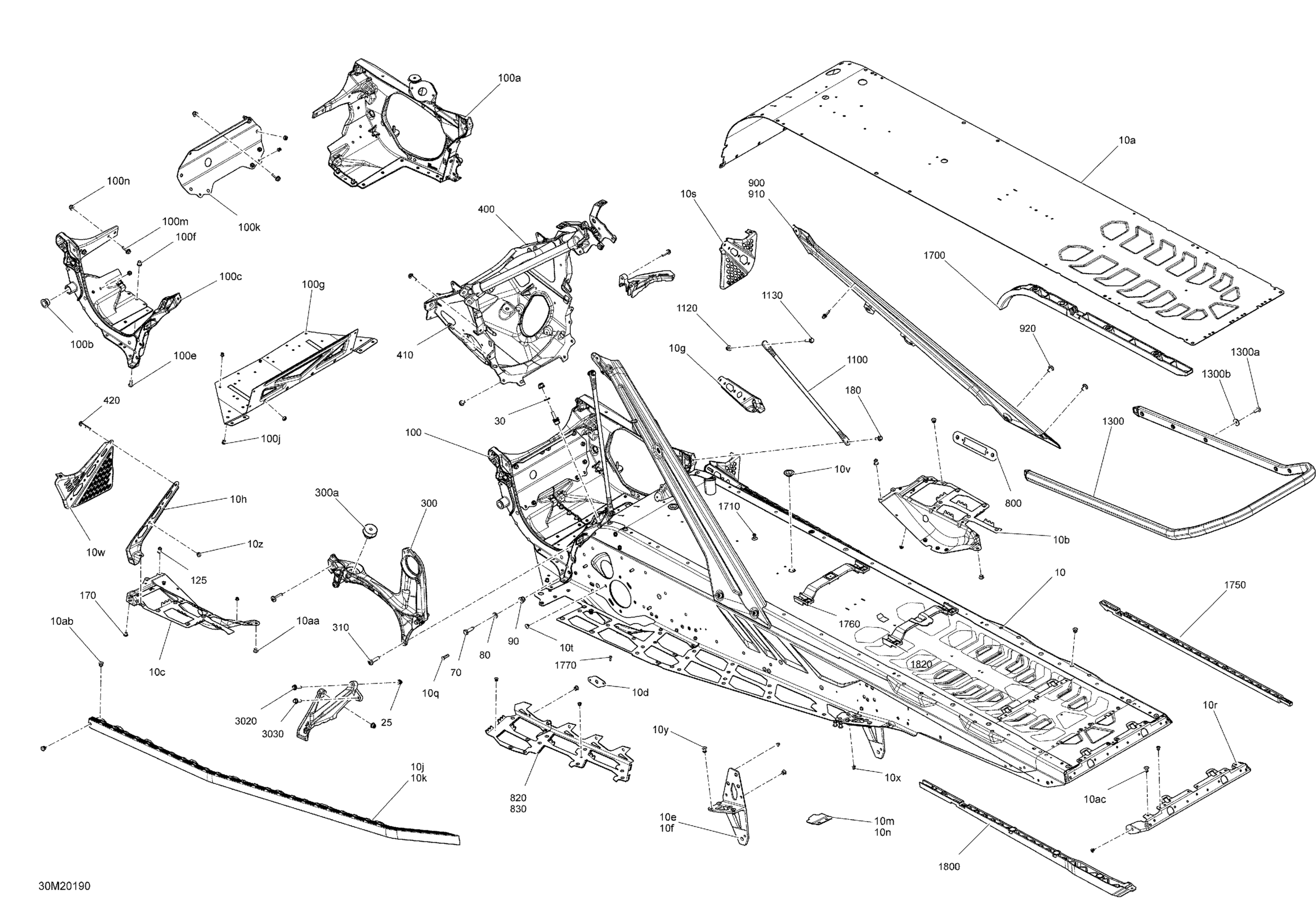

Ski-Doo MXZ 850 E-TEC - Europe, 2020 Frame - System - XRS Diagram

#

Description
Price

10

Sunburst Yellow, Chassis Tunnel Module129" | Model Sunburst Yellow

415130295

Unavailable

10a

Radiator Tunnel 129 Ass'y

518334487

Unavailable

10b

Deep Black, RH Footrest Reinforcement

518330738

$82.28

10c

Deep Black, LH Footrest Reinforcement

518331523

$82.28

10d

Reinforcement Plate

518326647

$4.34

10e

LH Suspension Bracket

518329877

Unavailable

10f

RH Rear Suspension Support

518334387

Unavailable

10g

Stirrup Reinforcement

518331253

$18.43

10h

Deep Black, LH Chasssis Reinforcement

518331560

$18.43

10j

RH Roller

518329023

$180.74

10k

LH Roller

518329024

$180.74

10m

LH Reinforcement Plate

518329088

Unavailable

10n

RH Reinforcement Plate

518329089

Unavailable

10q

Clinch Stud M6 X 20

250300027

$1.92

10r

Rear Cap

518328990

Unavailable

10s

RH Footrest

518328460

$38.43

10t

Black, Dart 8 mm

293730047

Unavailable

10v

Black, Plug

293730052

Unavailable

10w

LH Footrest

518333007

$38.43

10x

Rivet Avibulb 3/16

293150203

Unavailable

10y

Rivet

293150183

$2.06

10z

Hemlock Rivet, 6.5 mm

293150096

$3.17

10aa

Hemlock Rivet, 6.5 mm

293150119

$4.00

10ab

Hemlock Rivet, 6.4 mm

293150174

$6.43

10ac

Ornit Rivet 6,5 X 14.5

293150266

Unavailable

25

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

30

Washer

506151252

Unavailable

70

Hex Screw M8 X 30

250000942

Unavailable

80

Flat Washer 8 mm

234081410

Unavailable

90

Hex. Flange Elastic Nut M8

233281414

Unavailable

100

Engine Chassis Module Ass'y | Includes 100 to 100m

518332692

$579.99

100a

RH Member Ass'y | Includes 100a to 100b

518330545

Unavailable

100b

Leg Cushion

505073317

Unavailable

100c

LH Side Member Ass'y | Includes 100b to 100b2

518334599

Unavailable

100e

Rivet Magna-Grip 6,4 X 50,8

293150148

Unavailable

100f

Collar Huck Magna-Grip 6.4

293150149

Unavailable

100g

Bottom Plate

518331661

Unavailable

100j

Insert M5 X 0.8

293450268

Unavailable

100k

Front Member

518330100

$56.12

100m

Hex. Flange Screw M6 X 20

207662046

Unavailable

100n

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

125

Hemlock Rivet 6.5 mm

293150120

$7.23

170

Insert M5 - 0.8

293450267

Unavailable

180

Hex. Flange Screw M6 X 16

207661646

Unavailable

300

LH Side Member Ass'y | Includes 300 to 300a

518333692

$270.74

300a

Vibration Damper

512061516

$57.66

310

Screw-Pan HD.Torx M8X30

250001060

Unavailable

400

Chassis Suspension Module

518334459

Unavailable

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

Unavailable

420

Hex. Flange Screw M6 X 35

207663544

$0.74

800

Member Fixation Plate

518329480

Unavailable

820

RH Tunnel Liner

518329646

$33.05

830

LH Tunnel Liner

518329647

$33.05

900

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

Unavailable

910

Black, RH Member Ass'y | Black

518330880

$108.43

920

Pan Head Torx Screw M8 X 12

250000887

$1.56

1100

Upper Colomn Support

518329974

Unavailable

1120

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

1130

Hex. Flange Screw M6 X 25

207662556

Unavailable

1300

Rear Bumper 146

518329553

Unavailable

1300a

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

Unavailable

1300b

Flat Washer

224061201

Unavailable

1700

Front Protector

518329982

Unavailable

1710

Pop Rivet 3/16”

293150108

$1.23

1750

Rear Protector

518329994

$7.55

1760

Front Protective Structure

518333935

Unavailable

1770

Torx Truss Screw K40 X 12

250000577

Unavailable

1800

Rear Protector

518329979

$7.55

1820

Support

520001545

$3.40

3020

Hex. Flange Screw M6 X 25

250000793

$1.74

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

Unavailable
