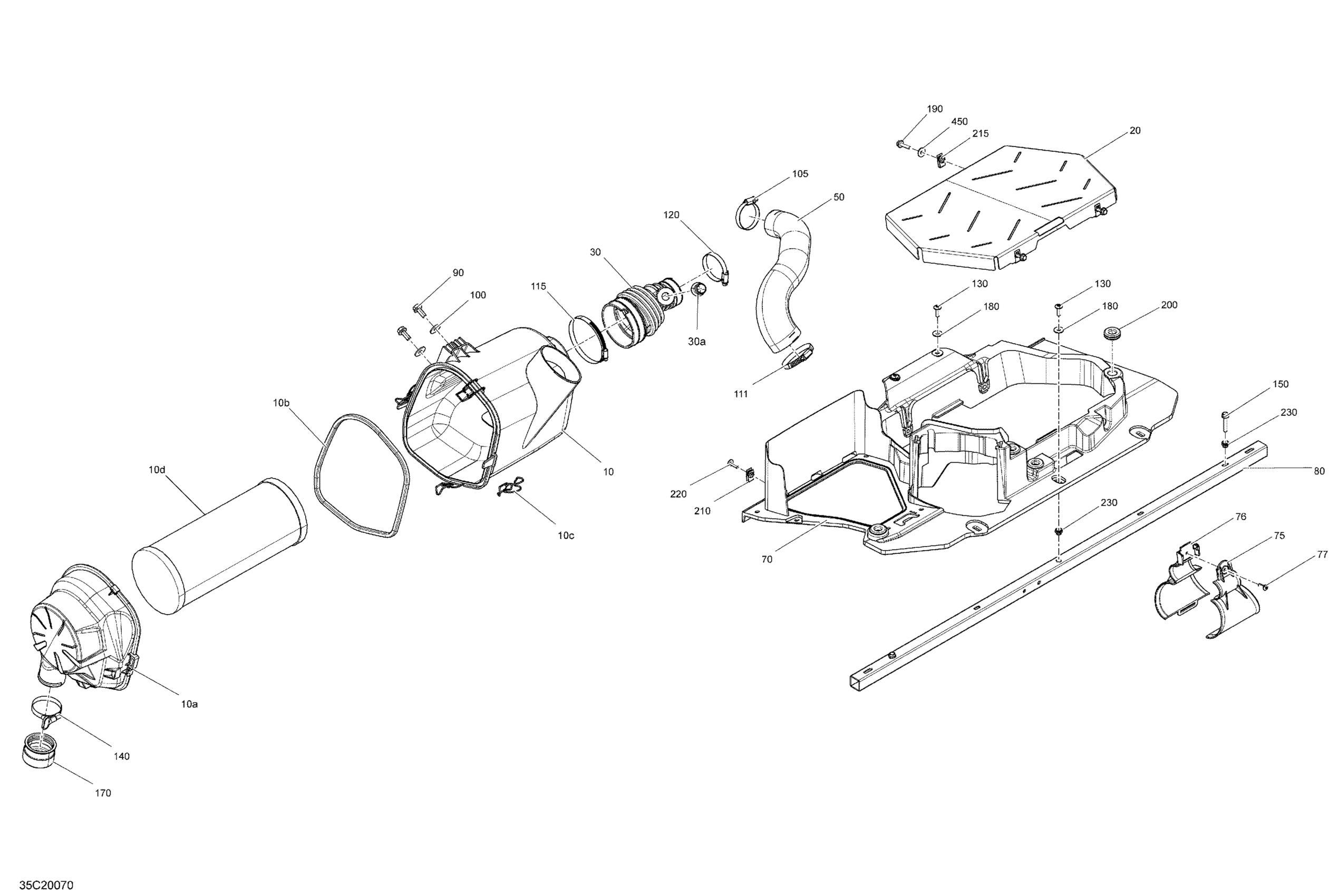

Can-Am Maverick Turbo - XMR - 2020 Air Intake Diagram

#

Description
Price

10

Silencer Intake Ass'y | Includes 10 to 10f

707800859

$113.40

10a

Cover

707800852

$82.06

10b

Gasket Intake Silencer

707800853

$20.12

10c

Clip

293730086

$8.24

10d

Air Filter

715900422

$49.22

20

Protection Grille

707800889

$116.39

30

Hose | Includes 30 to 30b

707800856

$44.75

30a

Breather Valve

273000234

$12.21

50

Air Intake

707800746

$62.66

70

Radiator Support

707801049

$219.37

75

Hose Support

707900756

$5.21

76

Hose Support

707900762

$5.10

77

Torx Screw K50 X 16

250000720

$1.60

80

Square Tube

707801133

$49.22

90

Hex. Flange Screw M8 X 20

207682044

$1.06

100

Flat Washer 8 mm

234082410

$1.27

105

Mounting Clamp

293650303

$3.57

111

Mounting Clamp

293650302

$3.79

115

Norma Clamp

514052924

$12.15

120

Mounting Clamp

293650303

$3.57

130

Torx Screw M6 X 20

250000722

$1.54

140

Turn Key Clamp

293650269

$7.21

150

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.00

170

Vacuator Cap

707800769

$34.30

180

Stainless Steel Flat Washer

234062670

$2.00

190

Hex. Flange Screw M6 X 25

207562544

$1.60

200

Grommet

517303756

$3.61

210

Panel Nut M6 X 1.0

250100198

$1.99

215

Panel Nut M6 X 1.0

250100198

$1.99

220

Torx Screw M6 X 20

250000722

$1.54

230

Insert Half Hex Body M6 x 1.0

250100199

$2.91

450

Flat Washer 6 mm

234062410

$0.73
