Description

Price

2500

Chalk, LH Front Door Panel

705015331

$197.66

2510

Can-Am Red, LH Front Door

705016020

$140.74

2520

Door Support

705011187

$10.98

2520a

Weld Pin 8mm X 40mm

250000913

$1.61

2525

Hex Screw Washer Head M8 X 20

207582054

$2.61

2526

Flat Washer M8

234081430

$1.74

2530

Flat Washer 8 mm, Nylon

234081100

$1.00

2540

LH Latch

705013095

$55.35

2550

Belt

293850135

$14.75

2551

Pop Rivet 3/16"

293150103

$0.54

2552

Bushing | DS 650 X

293900104

$5.26

2570

LH Latch Cover

705013535

$36.89

2580

Panel Nut M6 X 1.0

250100198

$1.73

2585

Torx Truss Screw M6 X 16

250000721

$1.39

2586

Stainless Steel Flat Washer

234062670

$1.74

2590

Pop Rivet 3/16"

293150103

$0.54

2610

Panel Nut M6 X 1.0

250100198

$1.73

2620

Torx Screw M6 X 20, Scotch Grip

250000786

$2.63

2630

Flat Washer

224061121

$0.44

2640

Door Belt

293850129

$15.35

2650

Pop Rivet 3/16"

293150103

$0.54

2800

Chalk, RH Front Door Panel

705015332

$197.66

2810

Can-Am Red, RH Front Door | Model Gold

705016021

$140.74

2820

Door Support

705011187

$10.98

2820a

Weld Pin 8mm X 40mm

250000913

$1.61

2825

Hex Screw Washer Head M8 X 20

207582054

$2.61

2826

Flat Washer M8

234081430

$1.74

2830

Flat Washer 8 mm, Nylon

234081100

$1.00

2840

RH Latch

705013096

$55.35

2850

Belt

293850135

$14.75

2851

Pop Rivet 3/16"

293150103

$0.54

2852

Bushing | DS 650 X

293900104

$5.26

2870

RH Latch Cover

705013536

$36.89

2880

Panel Nut M6 X 1.0

250100198

$1.73

2885

Torx Truss Screw M6 X 16

250000721

$1.39

2886

Stainless Steel Flat Washer

234062670

$1.74

2890

Pop Rivet 3/16"

293150103

$0.54

2910

Panel Nut M6 X 1.0

250100198

$1.73

2920

Torx Screw M6 X 20, Scotch Grip

250000786

$2.63

2930

Flat Washer

224061121

$0.44

2940

Door Belt

293850129

$15.35

2950

Pop Rivet 3/16"

293150103

$0.54

4030

Torx Truss Screw M6 X 25

250000807

$1.74

4040

Panel Nut M6 X 1.0

250100198

$1.73

4100

LH Central Lateral Panel

705012768

$69.20

4105

Pop Rivet 3/16"

293150103

$0.54

4200

Deep Black, RH Lower Body Panel

705017549

$64.58

4210

Torx Screw M6 X 20

250000722

$1.34

4220

Panel Nut M6 X 1.0

250100198

$1.73

4230

Insert

705016606

$2.31

4300

LH Rear Lateral Panel

705012770

$110.74

4400

RH Rear Lateral Panel

705012771

$110.74

4410

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

4440

Support Plate

705003841

$0.91

7300a1

LH Door Panels

705010271

$105.35

7300a2

LH Side Door Decal

704907652

$36.89

7300a3

Door Seal

705012018

Unavailable

7300b1

RH Door Panels

705010272

$104.58

7300b2

RH Side Door Decal

704907653

$36.89

7300b3

Door Seal

705012018

Unavailable

7300c

Black, LH Door Frame

705012750

$124.58

7300d

Black, RH Door Frame | Includes 7300f to 7300p

705012751

$124.58

7300e1

Torx-Truss M/S M6 X 80

250000902

$2.60

7300e2

Hex. Flange Elastic Nut M6

233261494

$1.26

7300e3

Offset Washer

705202223

$4.98

7300e4

Torx Truss Screw M6 X 50

250000749

$3.11

7300e5

Stainless Steel Flat Washer

234062670

$1.74

7300e6

Neoprene Seal (1PAC=3M)

219704364

$22.72

7300e7

Neoprene Seal (1PAC=3M)

219704364

$22.72

8000

Chalk, LH Body Panel Guard

705015325

$110.74

8100

Chalk, RH Body Panel Guard

705015326

$110.74

8110

Flat washer M6

250200164

$0.83

8120

Torx Truss Screw M6 X 25

250000807

$1.74

8130

Pop Rivet 3/16”

293150108

$1.23

8200

LH Lateral Structure

705012774

$209.20

8300

RH Lateral Structure

705012775

$209.20

8310

Panel Nut M6 X 1.0

250100198

$1.73

8320

Hex. Flange Screw M8 X 70

207687044

$6.11

8330

Saddle Washer

705205462

$5.52

8340

Elastic Flange Nut M8

233281464

$0.83

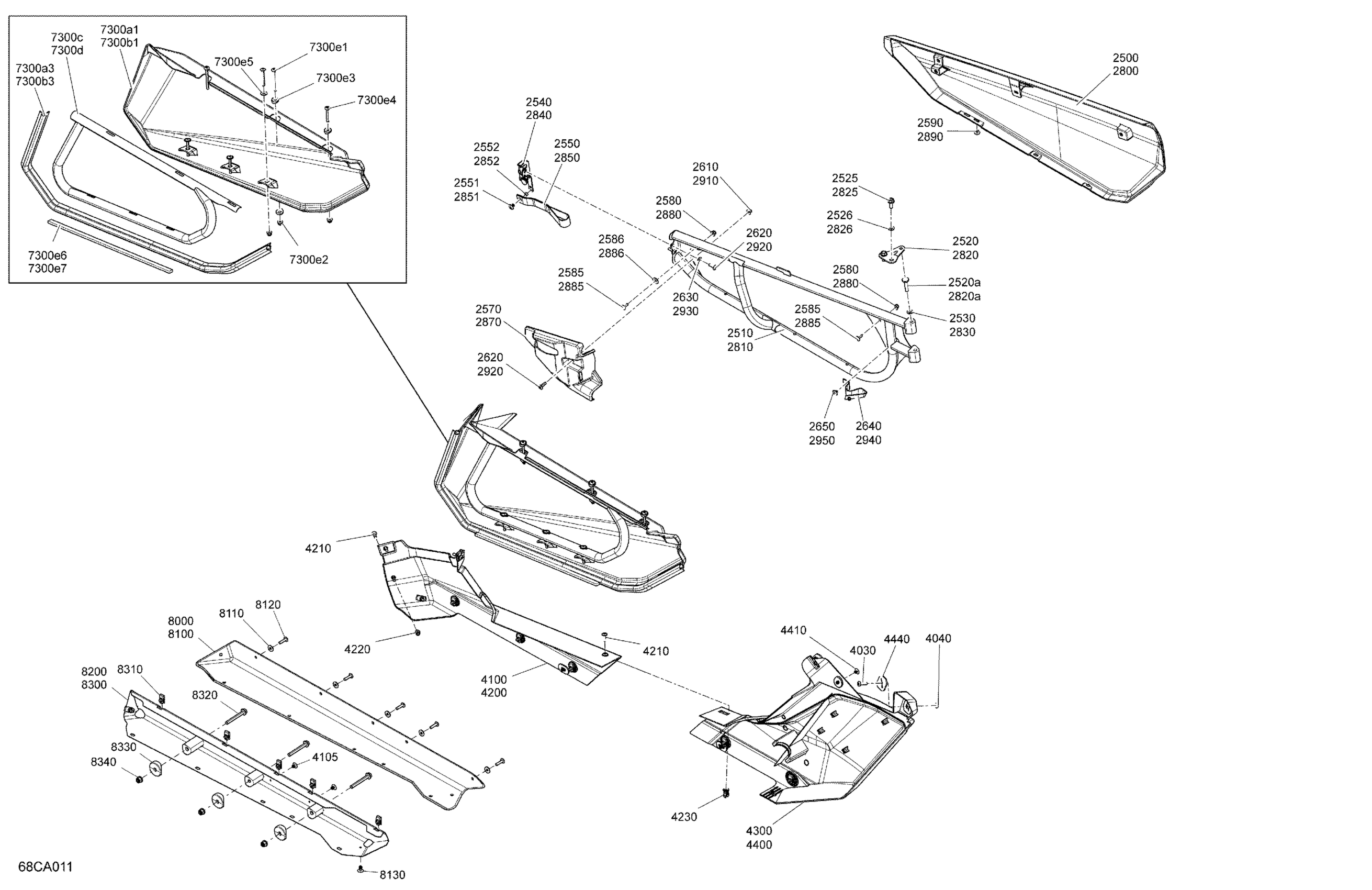

Can-Am Maverick Turbo RR - XRC - CE, 2021 Body - Doors Diagram

Door Seal

Door Seal
