Description

Price

130a

Rear Shock Absorber | Includes 130a to 130a13

706004084

$1,529.99

130aa

Spherical Bearing

715900337

$81.51

130ab

Ball Joint

706004078

$45.35

130ac

O-Ring Bushing

715900338

$10.98

130ad

Circlip

715900480

$11.06

130ae

Reducer

715900481

$27.66

130af

Screw M6 X 35

715900521

$5.52

130ag

Réservoir Clamp

715900522

$36.89

130ah

Preload Ring

715900605

$27.66

130aj

Preload Ring Backup

715900606

$27.66

130ak

Spring Adapter

715900607

$10.77

130am

Crossover ring

715900608

$119.97

130an

Spring Retainer

715900597

$36.89

130ap

Spring Coupler

715900593

$104.58

130b

Chalk, Compression Spring

706004168

$115.35

130c

Chalk, Compression Spring

706004169

$147.66

130d

Protector

706202215

$9.23

130e

Washer M5

250200025

$0.61

130f

Hex Flange Screw M5 X 11

210251150

$1.74

135a

Rear Shock Absorber | Includes 130a to 130a13

706004084

$1,529.99

135aa

Spherical Bearing

715900337

$81.51

135ab

Ball Joint

706004078

$45.35

135ac

O-Ring Bushing

715900338

$10.98

135ad

Circlip

715900480

$11.06

135ae

Reducer

715900481

$27.66

135af

Screw M6 X 35

715900521

$5.52

135ag

Réservoir Clamp

715900522

$36.89

135ah

Preload Ring

715900605

$27.66

135aj

Preload Ring Backup

715900606

$27.66

135ak

Spring Adapter

715900607

$10.77

135am

Crossover ring

715900608

$119.97

135an

Spring Retainer

715900597

$36.89

135ap

Spring Coupler

715900593

$104.58

135b

Chalk, Compression Spring

706004168

$115.35

135c

Chalk, Compression Spring

706004169

$147.66

135d

Protector

706202215

$9.23

135e

Washer M5

250200025

$0.61

135f

Hex Flange Screw M5 X 11

210251150

$1.74

140

Flange Screw M12 X 60

250000857

$6.08

145

Elastic Flange Nut M12

233221466

$2.15

150

Hex. Flange Screw M12 X 70

250000858

$3.11

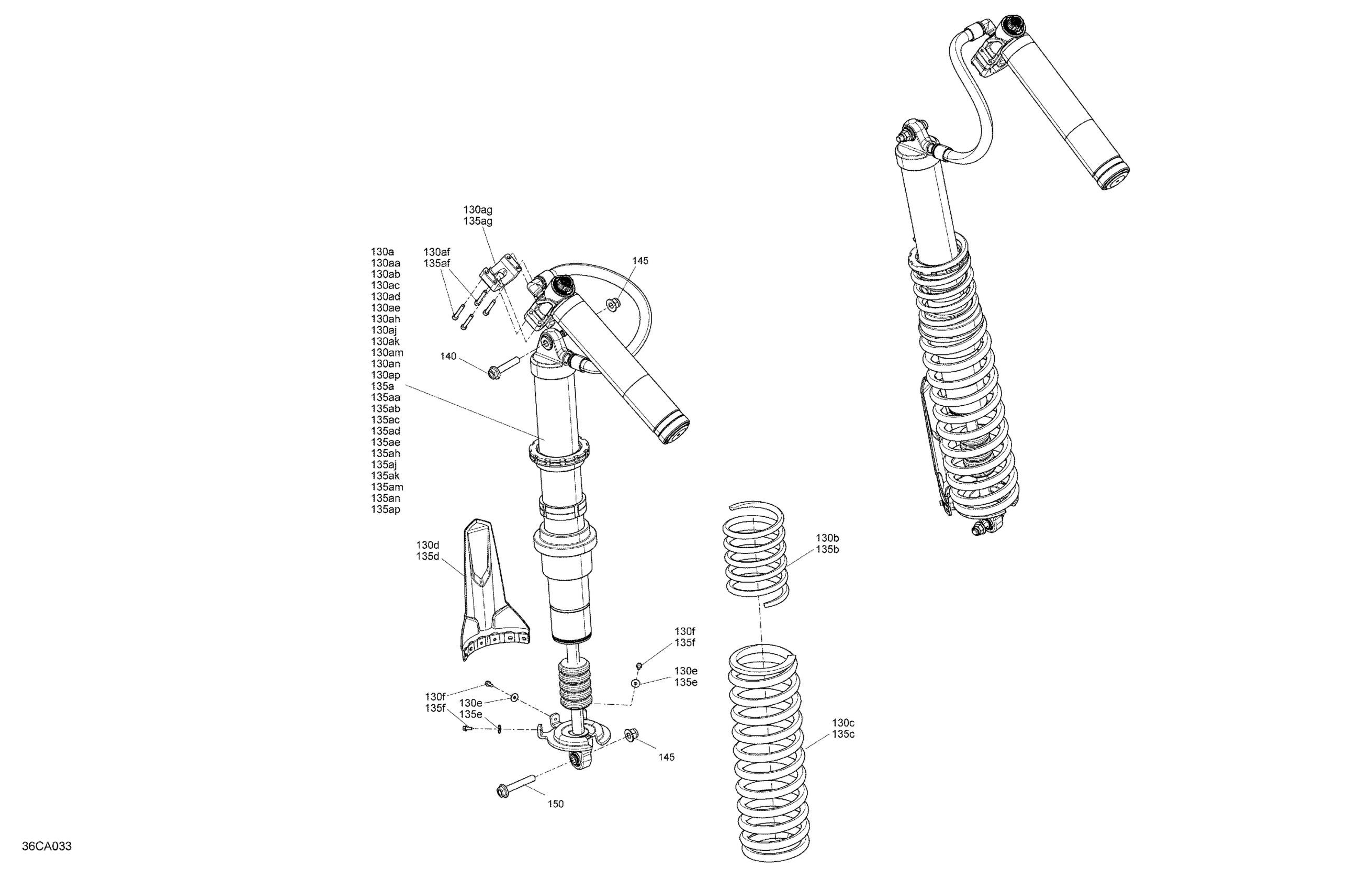

Can-Am Maverick Turbo RR - XRC - CE, 2021 Suspension - Rear Shocks Diagram
