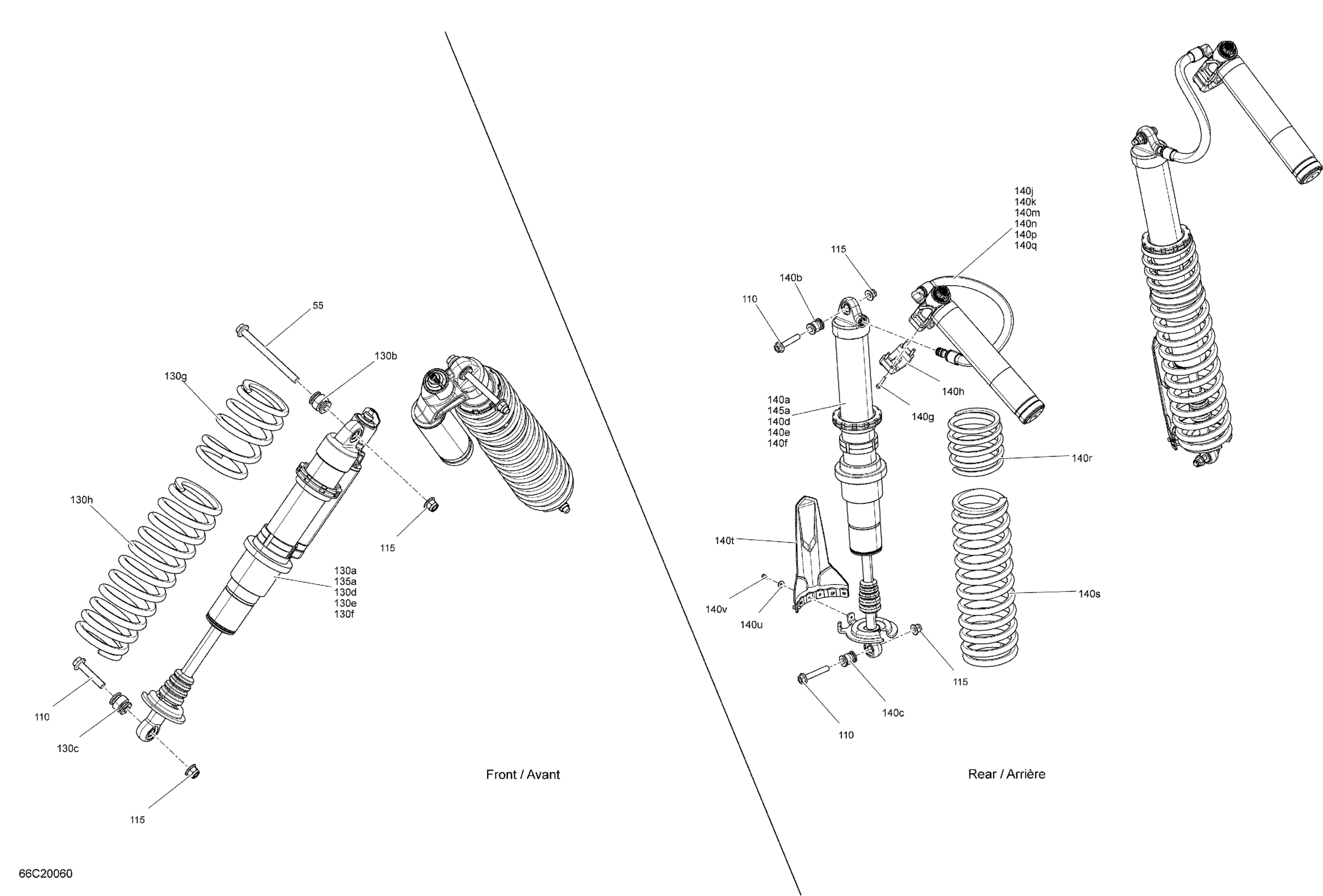

Can-Am Maverick Turbo R, Turbo RR - STD_XDS_XRS - 2020 Shocks - XRS Diagram

#

Description
Price

55

Flange Screw M12 X 145

250000861

$6.28

110

Flange Screw M12 X 60

250000857

$6.99

115

Elastic Flange Nut M12

233221466

$2.46

130a

LH Front Shock | Includes 130a to 130a5

706204044

$1,139.99

130b

Spherical Bearing

715900337

$79.07

130c

Ball Joint

706004078

$44.00

130d

O-Ring Bushing

715900338

$10.55

130e

Circlip

715900480

$10.24

130f

Reducer

715900481

$24.60

130g

Manta Green, Front Compression Spring | Model Dazzling Blue

706204086

$89.52

130h

Deep Black, Compression Spring

706205343

$162.66

130h

Liquid Gold, RH Front Compression Spring | Hyper Silver

706203483

$115.64

130h

Manta Green, Front Compression Spring | Model Dazzling Blue

706203842

$110.42

135a

RH Front Shock | Includes 135a to 135a5

706204045

$1,139.99

140a

Rear Shock Absorber | Includes 140a to 140h

706003896

$1,729.99

140b

Spherical Bearing

715900337

$79.07

140c

Ball Joint

706004078

$44.00

140d

O-Ring Bushing

715900338

$10.55

140e

Circlip

715900480

$10.24

140f

Reducer

715900481

$24.60

140g

Screw M6 X 35

715900521

$4.72

140h

Réservoir Clamp

715900522

$34.30

140j

Preload Ring

715900605

$23.85

140k

Preload Ring Backup

715900606

$23.85

140m

Spring Adapter

715900607

$10.27

140n

Crossover ring

715900608

$111.91

140p

Spring Retainer

715900597

$32.81

140q

Spring Coupler

715900593

$96.99

140r

Manta Green, Rear Compression Spring | Model Dazzling Blue

706003585

$110.42

140r

Black, Rear Spring | Model X3 Xrs Black

706002564

$115.64

140r

Liquid Gold, Rear Compression Spring | Hyper Silver

706003291

$115.64

140s

Manta Green, Compression Spring | Model Dazzling Blue

706003936

$134.30

140t

Protector

706202215

$8.66

140u

Washer M5

250200025

$0.70

140v

Hex Flange Screw M5 X 11

210251150

$2.00

145a

Rear Shock Absorber | Includes 140a to 140h

706003896

$1,729.99
