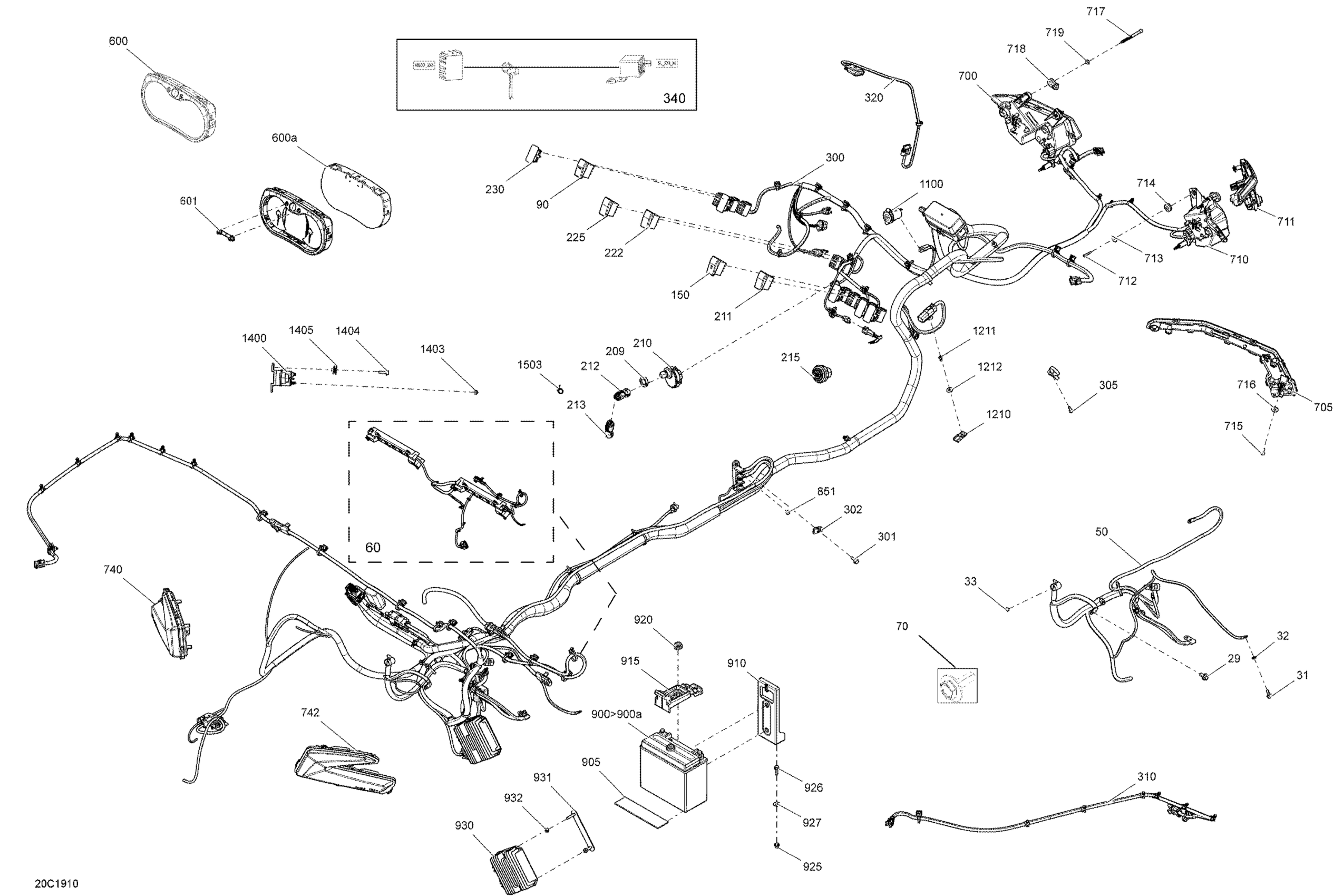

Can-Am Maverick Turbo - 2019 Electrical - Package STD Diagram

#

Description
Price

29

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

Unavailable

31

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

32

External Serrated Lock Washer 6 mm

234461608

Unavailable

33

Elastic Stop Nut M6

232561414

Unavailable

50

Starter Wiring Harness

710006022

Unavailable

60

Wiring Harness Junction

710006246

Unavailable

70

Screw PT Type K-50 X 16

250000959

Unavailable

90

Light Switch

710004492

Unavailable

150

2 X 4 Switch

710004814

Unavailable

209

Safety Nut (DESS Switch)

278002963

$2.72

210

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

211

Switch DPS

710001781

$24.58

212

Grey Key RFID | Except Model Europe, Except T3

710004964

Unavailable

213

Green Key RFID | Except Model Europe, Except T3

710005232

Unavailable

215

Start-Stop Button | Not Shown

710005213

Unavailable

222

Driving Mode Switch

710005909

Unavailable

225

Switch, Over ride

710002053

$19.97

230

Plug Carling | Australia, Brazil, Europe, Japan

710007173

Unavailable

300

Main Wiring Harness | Includes 300 to 300a

710006253

Unavailable

301

Hex. Flange Screw S.Grip M6 X 20

207562054

Unavailable

302

Panel Nut M6 X 1.0

250100198

Unavailable

305

Screw PT Type K-50 X 16

250000959

Unavailable

306

Connector Plug | Includes 306 to 306b

710005956

Unavailable

306a

Male Connector, 2 Circuits

278000220

$11.02

306b

Wire Seal

278000216

Unavailable

310

Rear Wiring Harness

710006424

Unavailable

320

Cable Throttle Pedal

710005291

Unavailable

340

Switch Wiring Harness

710006740

Unavailable

600

Speedometer | Includes 600 to 600a

710006334

Unavailable

600a

Lens | XTP

415129349

Unavailable

601

Speedometer Button | XTP

415129355

Unavailable

700

LH Front Auxiliary LED Light

710008811

Unavailable

705

LH Signature Beam

710004994

Unavailable

710

RH Front Auxiliary LED Light

710008812

Unavailable

711

RH Signature Beam

710004995

Unavailable

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

713

Shoulder Bushing

710004749

Unavailable

714

Grommet

709000582

$4.38

715

Torx Screw K50 X 16

250000720

$1.39

716

Stainless Steel Flat Washer

234062670

$1.74

717

Ajustment Screw

710005837

Unavailable

718

Adjustment Guide

710005097

Unavailable

719

O-Ring

293300192

$3.85

740

LH Tail Light

710004743

Unavailable

742

RH Tail Light

710004744

Unavailable

851

Elastic Stop Nut M6, Brass

232561200

Unavailable

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

900a

Battery Bolt Kit

250000282

$2.95

905

Rubber Pad

293830126

Unavailable

910

Fixation Plate

710004788

Unavailable

915

Fixation Plate

710004789

Unavailable

920

Stopper Rubber

705014429

Unavailable

925

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

926

Hex. Flange Screw S.Grip M6 X 20

207562054

Unavailable

927

Flat Washer 6 mm

234062410

$0.64

930

Voltage Regulator

710005842

Unavailable

931

Bracket

710005782

Unavailable

932

Elastic Stop Nut M6

232561414

Unavailable

935

Battery Cable Cap

710006471

Unavailable

1100

12V Power Outlet

710005374

Unavailable

1210

Clip

270000141

$8.33

1211

Pop Rivet 3/16"

390402300

Unavailable

1212

Washer | DS 650 X

391301600

Unavailable

1400

Starter Relay

278003012

Unavailable

1403

Elastic Stop Nut M6, Brass

232561200

Unavailable

1404

Hex. Flange Screw S.Grip M6 X 20

207562054

Unavailable

1405

Panel Nut M6 X 1.0

250100198

Unavailable
