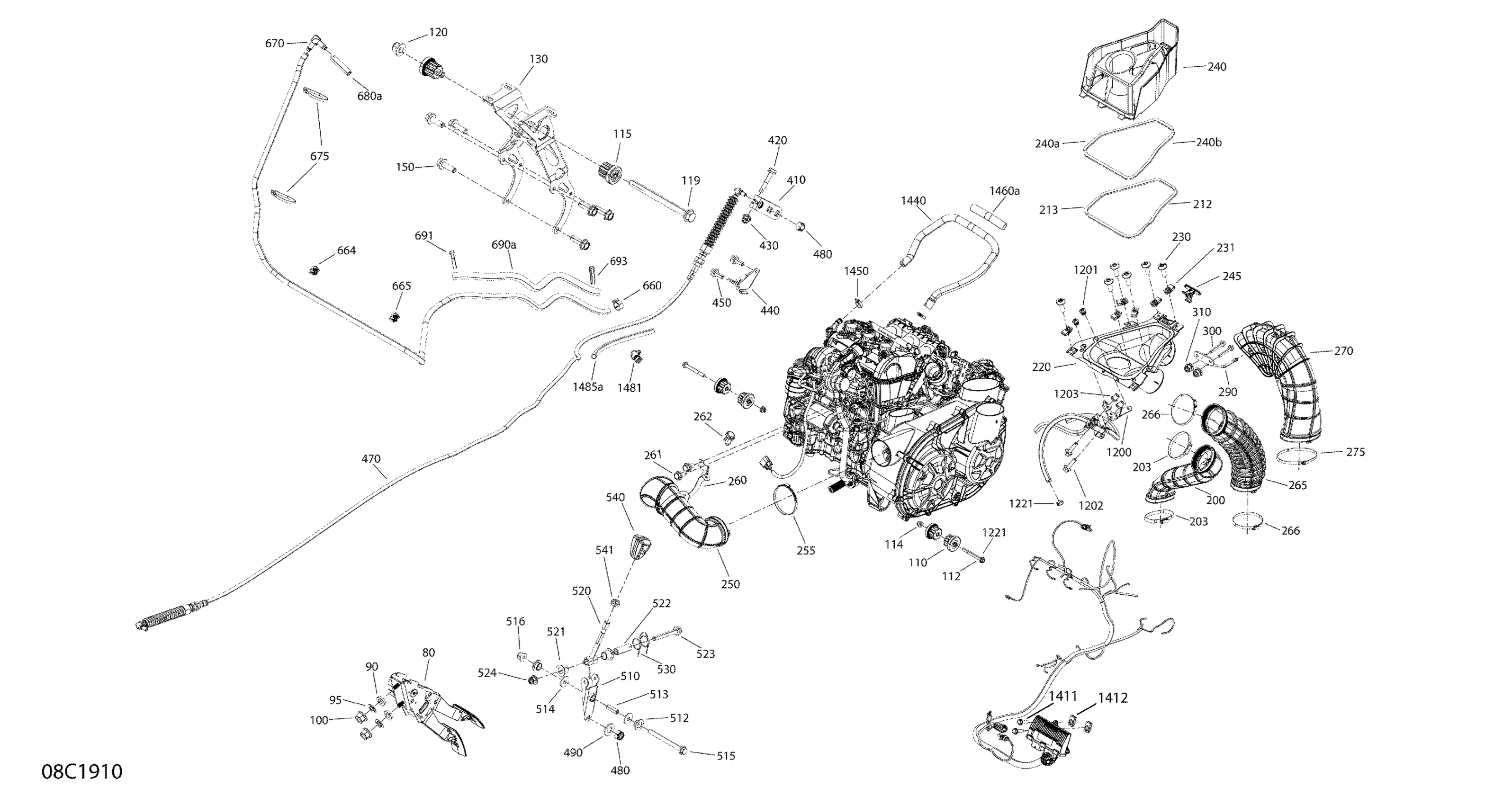

Can-Am Maverick Turbo - 2019 Engine - Except Package XMR Diagram

#

Description
Price

80

Throttle Pedal

707001803

Unavailable

90

Bushing

707001990

Unavailable

95

Push Nut

250100031

$6.86

100

Hex. Flange Nut M8

233081416

Unavailable

110

Vibration Damper

707002952

Unavailable

112

Hex. Flange Screw M10 X 90

207609046

Unavailable

114

Hex. Flange Elastic Nut M10

233201436

Unavailable

115

Anti-Vibration Mount

707001808

Unavailable

119

Hex. Flange Screw M10 X 125

230602546

Unavailable

120

Hex. Flange Elastic Nut M10

233201436

Unavailable

130

Rear Engine Support

707001881

Unavailable

150

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

Unavailable

200

Front Inlet Duct

706600077

$27.66

203

Norma Clamp

514052924

$10.58

212

Seal

706600137

$39.97

213

Seal

706600138

$34.58

220

Adaptor

706600129

$44.58

230

Torx Screw M6 X 20

250000722

Unavailable

231

Panel Nut M6 X 1.0

250100198

Unavailable

240

CVT Filter | Includes 240 to 240b

706600148

$59.97

240a

Seal

706600136

$39.97

240b

Seal

706600139

$34.58

245

Latch

708000909

Unavailable

250

Front Outlet Duct

706600078

$27.66

255

Norma Gear Clamp

514052983

$11.43

260

Hose Support

706600147

$15.22

261

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

262

Tuflok Plastic Rivet

293150230

Unavailable

265

Rear Inlet Duct

706600080

$27.66

266

Norma Gear Clamp

514052983

$11.43

270

Rear Outlet Duct

706600081

$96.89

275

Gear Clamp (Norma)

514052861

$7.80

290

Outlet Support

707002056

Unavailable

300

Hex. Flange Screw M6 X 40

207664044

$2.18

310

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

410

Lever

707000911

Unavailable

420

Hex. Flange Screw M6 X 35

207663544

$0.74

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

440

Cable Support

707001614

$15.22

450

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

470

Shifting Cable

707001809

Unavailable

480

Hex. Elastic Stop Nut M8

232581414

Unavailable

490

Flat Washer 10 mm

234001410

Unavailable

510

Lower Lever Arm

707000828

$16.89

512

Flanged Bushing

707000847

$1.00

513

Bushing

707001376

$4.22

514

Flat Washer 6 mm

234062410

$0.64

515

Hex. Flange Screw M6 X 70

207667056

$3.61

516

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

520

Upper Lever Arm

707000711

$36.89

521

Flanged Bushing

707000869

$2.20

522

Bushing

707001376

$4.22

523

Hex. Flange Screw M6 X 50

207665044

Unavailable

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

530

Lever Arm Spring

707000750

$2.75

540

Lever Trim

707003211

Unavailable

541

Hex. Jam Nut M8

232180491

Unavailable

660

Oetiker Clamp

293650042

Unavailable

664

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

Unavailable

665

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

Unavailable

670

Elbow Fitting

293710171

$6.92

675

Tie Wrap 368 mm

293750008

$0.85

680a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

Unavailable

690a

TUBING 13MM I.D. 300MM LONG - Call your local BRP dealership

219704449

Unavailable

691

Tie-Rap 180 mm

414115200

$0.09

693

Tie-Rap 180 mm

414115200

$0.09

1200

Valve Support

707001981

Unavailable

1201

Pop Rivet 3/16" | DS 650 X

390402000

Unavailable

1202

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

Unavailable

1203

Insert M5 X 0.8

293450268

Unavailable

1221

Oeticker Clamp

293650262

$1.00

1411

Hex. Flange Screw M6 X 25

207662554

$1.48

1412

Panel Nut M6 X 1.0

250100198

Unavailable

1440

Hose Vent

707001931

Unavailable

1450

Tridon Gear Clamp

293650051

Unavailable

1460a

Corrugated Sheath 23 MM ID 1000MM Long

219704450

Unavailable

1481

Clip Tie-Rap | Package North Edition

710005037

Unavailable

1485a

Tubing 10 MM 1000MM Long

219704407

Unavailable
