Partiron

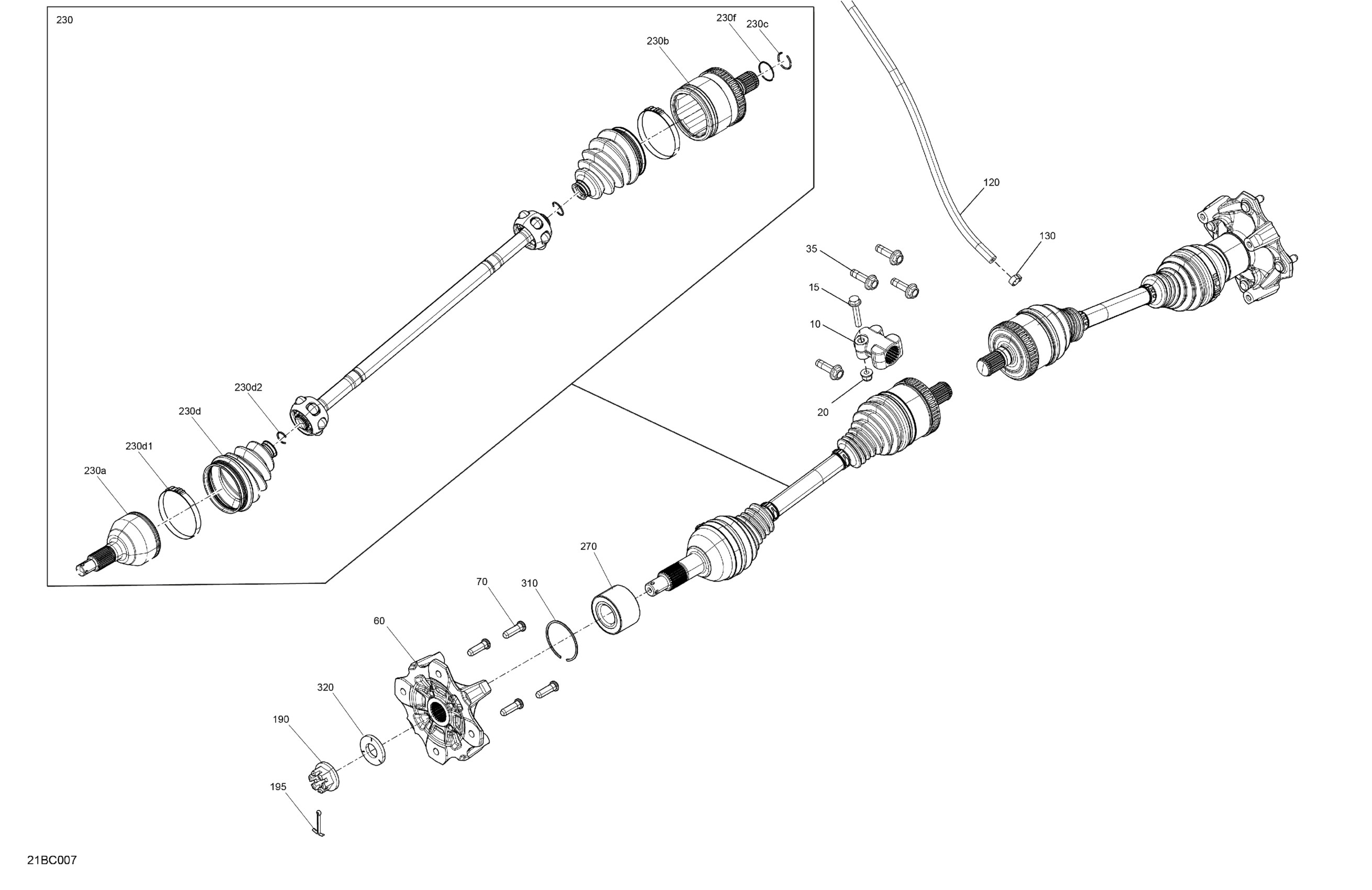

Can-Am Maverick Trail 700 - DPS - T Regulation, 2023 Drive - Rear - Common Parts Diagram

#

Description
Price

10

Coupling Sleeve

709402586

$33.82

15

Hex. Flange Screw M8 X 42

250001050

$0.95

20

Hex. Elastic Flange Nut M8

233281416

$1.25

35

Screw-Hex.Flange M10 X 35 S.Grip

250001080

$2.06

60

Wheel Hub

705502338

$115.35

70

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

120

Hose

219704549

$47.66

130

Oetiker Clamp

293650042

$1.40

190

Castle Nut M20

250100193

$6.66

195

Cotter Pin

250400084

$1.79

230

Rear - Premium CV Axle | Includes 230 to 230f

705502755

$233.82

230a

JOINT_CV EXT - Call your local BRP dealership

715900429

Unavailable

230b

Plunging Joint

715900610

$249.20

230c

Circlip

705501781

$5.38

230d

Boot Kit

705501864

$41.51

230d1

Oetiker Clamp, 82.1 mm

715900241

$7.84

230d2

Oetiker Clamp, 27.3 mm

715900242

$7.84

230f

O-Ring

715900579

$2.31

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.98

320

Conical Spring Washer M20

250200170

$11.00
