Engine

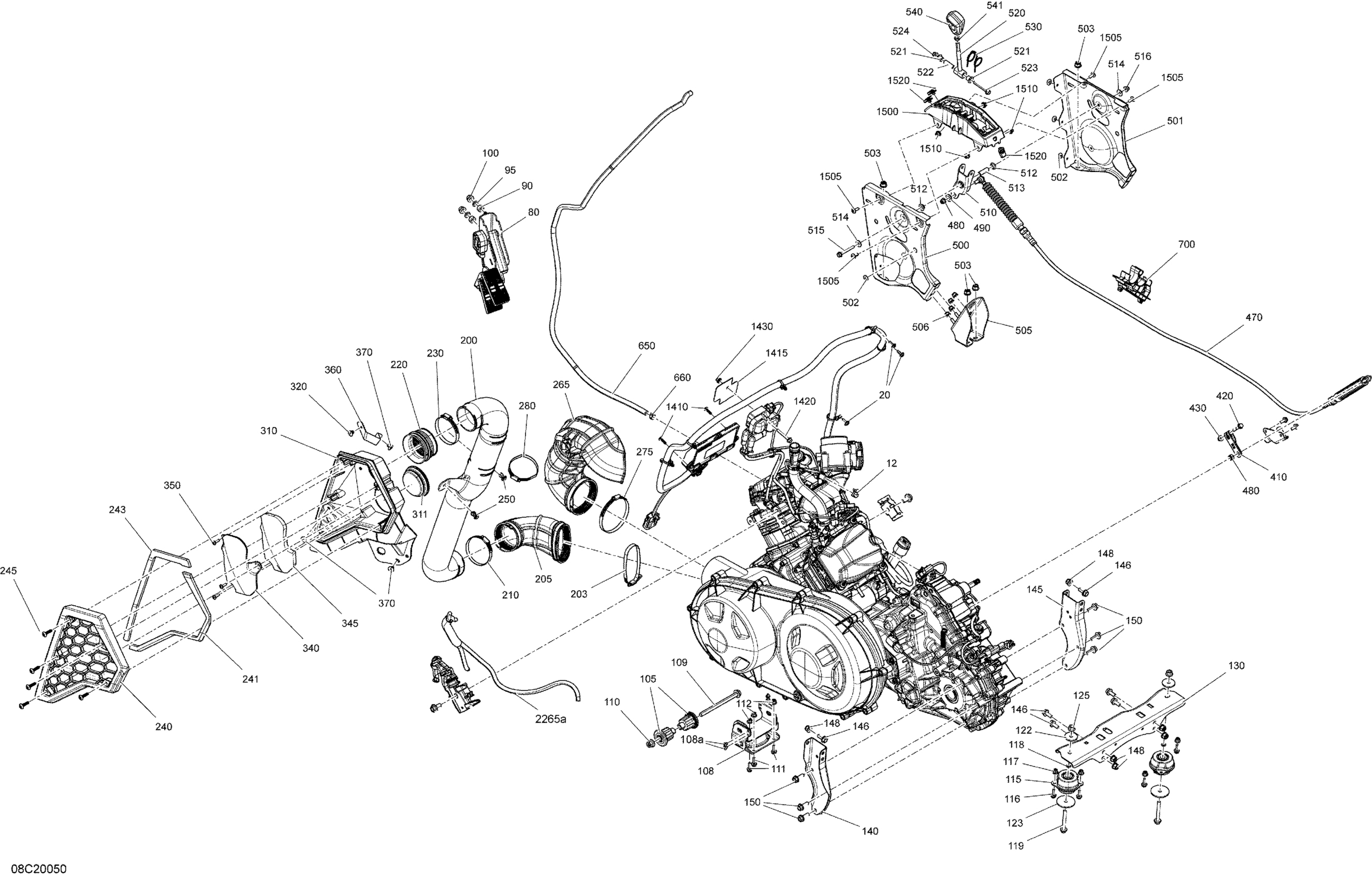

Can-Am Maverick Sport 1000 - BASE - 2020 Engine Diagram
#
20
Screw PT Type K-50 X 16
250000959
Unavailable
100
Hex. Flange Nut M8
233081416
Unavailable
105
Vibration Damper
707001169
Unavailable
108
Vibration Damper | Includes 108 to 108d
707003061
Unavailable
109
Hex. Flange Screw M10 X 135
230603546
Unavailable
110
Hex. Flange Elastic Nut M10
233201436
Unavailable
111
Hex. Flange Screw M6 X 16
207661644
Unavailable
112
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
115
Rubber Mount
707002590
Unavailable
116
Hex. Flange Screw M6 X 20
207662044
Unavailable
117
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
122
Flat Washer M8
250200158
Unavailable
125
Hex. Flange Nut M8
233081416
Unavailable
130
Rear Link Bracket
707002290
Unavailable
140
Engine Bracket
707002449
Unavailable
145
RH Rear Engine Support
707003340
Unavailable
146
Hex Flange Screw M8 X 20
207582046
Unavailable
148
Hex. Elastic Flange Nut M8
233281416
Unavailable
150
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
Unavailable
210
Norma Clamp
293650091
Unavailable
230
Norma Clamp
293650091
Unavailable
245
Hex. Screw Pt K60 X 25
250000980
Unavailable
250
Tuflok Plastic Rivet
293150230
Unavailable
280
Norma Clamp
293650091
Unavailable
311
Plug
707002217
Unavailable
410
Lever
707000911
Unavailable
430
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
470
Shifting Cable
707002000
Unavailable
480
Hex. Elastic Stop Nut M8
232581414
Unavailable
490
Flat Washer 10 mm
234001410
Unavailable
500
LH Bracket
707002099
Unavailable
501
RH Bracket
707002100
Unavailable
502
Pop Rivet 3/16"
293150103
Unavailable
503
Hex. Elastic Flange Nut M8
233281416
Unavailable
505
Cable Support
707002098
Unavailable
506
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
510
Lower Lever Arm
707002093
Unavailable
515
Hex. Flange Screw M6 X 50
207665044
Unavailable
516
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
523
Hex. Flange Screw M6 X 50
207665044
Unavailable
524
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
540
Lever Trim
707003211
Unavailable
541
Hex. Jam Nut M8
232180491
Unavailable
650
Hose
219704549
Unavailable
660
Oetiker Clamp
293650042
Unavailable
700
Hose Support
707002116
Unavailable
1410
Torx Screw Truss Head K50X20 T20
250000760
Unavailable
1415
Insulator Pad
710000073
Unavailable
1420
Hex. Flange Screw M6 X 1.0 X 45
250000213
Unavailable
1430
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
1500
Lever Indicator
707900603
Unavailable
1505
Torx Head Screw M6 X 16
250000717
Unavailable
1510
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
1520
Panel Nut M6 X 1.0
250100198
Unavailable
2265a
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
