Description

Price

100

Front Fascia

705011317

$248.43

110

Torx Truss Screw M6 X 16

250000721

$1.39

120

Panel Nut M6 X 1.0

250100198

$1.73

130

Amber Reflector | Except Europe Model

705011222

$12.32

140

Elastic Flange Nut M5

233251494

$1.74

150

Torx Screw M6 X 45

250000748

$1.56

200

Fascia Removable Grid

705011318

$203.05

210

Clip

517306478

$1.37

500

LH Headlamp Structure

705011319

$213.05

510

Torx Screw M6 X 20

250000722

$1.34

530

Panel Nut M6 X 1.0

250100198

$1.73

540

Torx Screw K50 X 16

250000720

$1.39

550

Stainless Steel Flat Washer

234062670

$1.74

600

RH Headlamp Structure

705011320

$213.05

700

Break Up Country, LF Front Fender | DPS, Camo Model

705015579

$189.97

710

Torx Truss Screw M6 X 16

250000721

$1.39

730

Panel Nut M6 X 1.0

250100198

$1.73

740

Clip

517306478

$1.37

750

Flat Washer M6.6 X 22

250200162

$1.91

760

Support Plate

705003841

$0.91

770

Torx Screw M6 X 20

250000722

$1.34

800

Break Up Country, RH Front Fender | DPS, Camo Model

705015582

$379.97

900

Removable Hood

705011322

$98.43

910

Clip

517306478

$1.37

930

Torx Truss Screw M6 X 25

250000807

$1.74

940

Bushing

705502616

$8.49

1000

LH Front Mudguard

705011323

$55.35

1010

Torx Screw M6 X 20

250000712

$1.74

1020

Hex. Flange Elastic Nut M6

233261494

$1.26

1040

Torx Truss Screw M6 X 16

250000721

$1.39

1050

Clip

517306478

$1.37

1070

Tuflok Plastic Rivet

293150230

$1.21

1080

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

1090

Panel Nut M6 X 1.0

250100198

$1.73

1100

RH Front Mudguard

705011324

$55.35

1200

LH Rocker Panel

705011331

$78.43

1210

Panel Nut M6 X 1.0

250100198

$1.73

1220

Pop Rivet 3/16”

293150101

$2.06

1230

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

1240

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56

1250

Flat Washer M6.6 X 22

250200162

$1.91

1300

RH Front Rocker Panel

705016939

$78.43

2800

Front Skid Plate

705014696

$199.97

2810

Pop Rivet 3/16”

293150087

$0.92

2820

Pop Rivet 3/16”

293150087

$0.92

2830

Washer

250200191

$1.76

3000

Rear Skid Plate

705014697

$96.89

3010

Pop Rivet 3/16”

293150087

$0.92

3020

Washer

250200191

$1.76

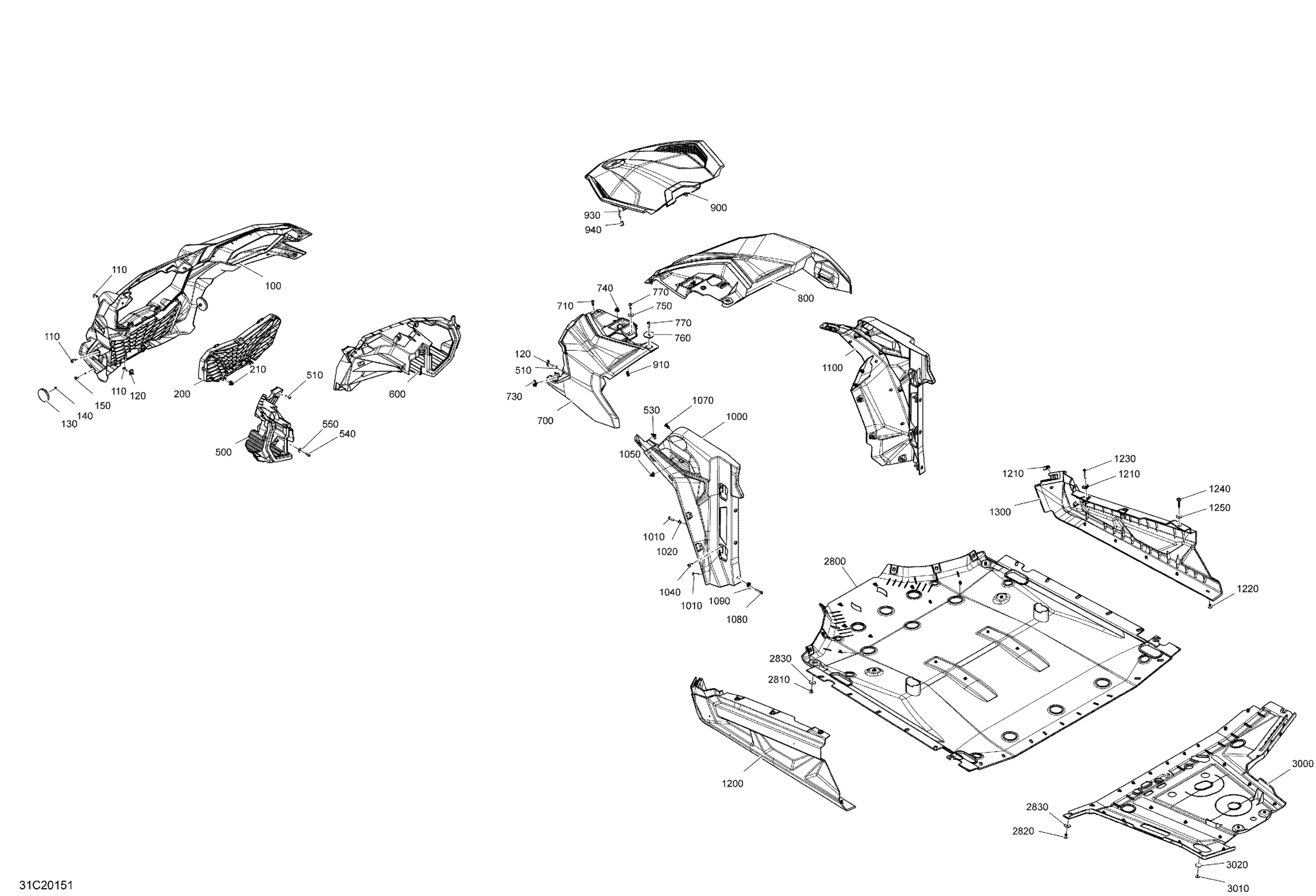

Can-Am Maverick Trail 1000 - 2020 Body - Front Section - Camo Diagram
