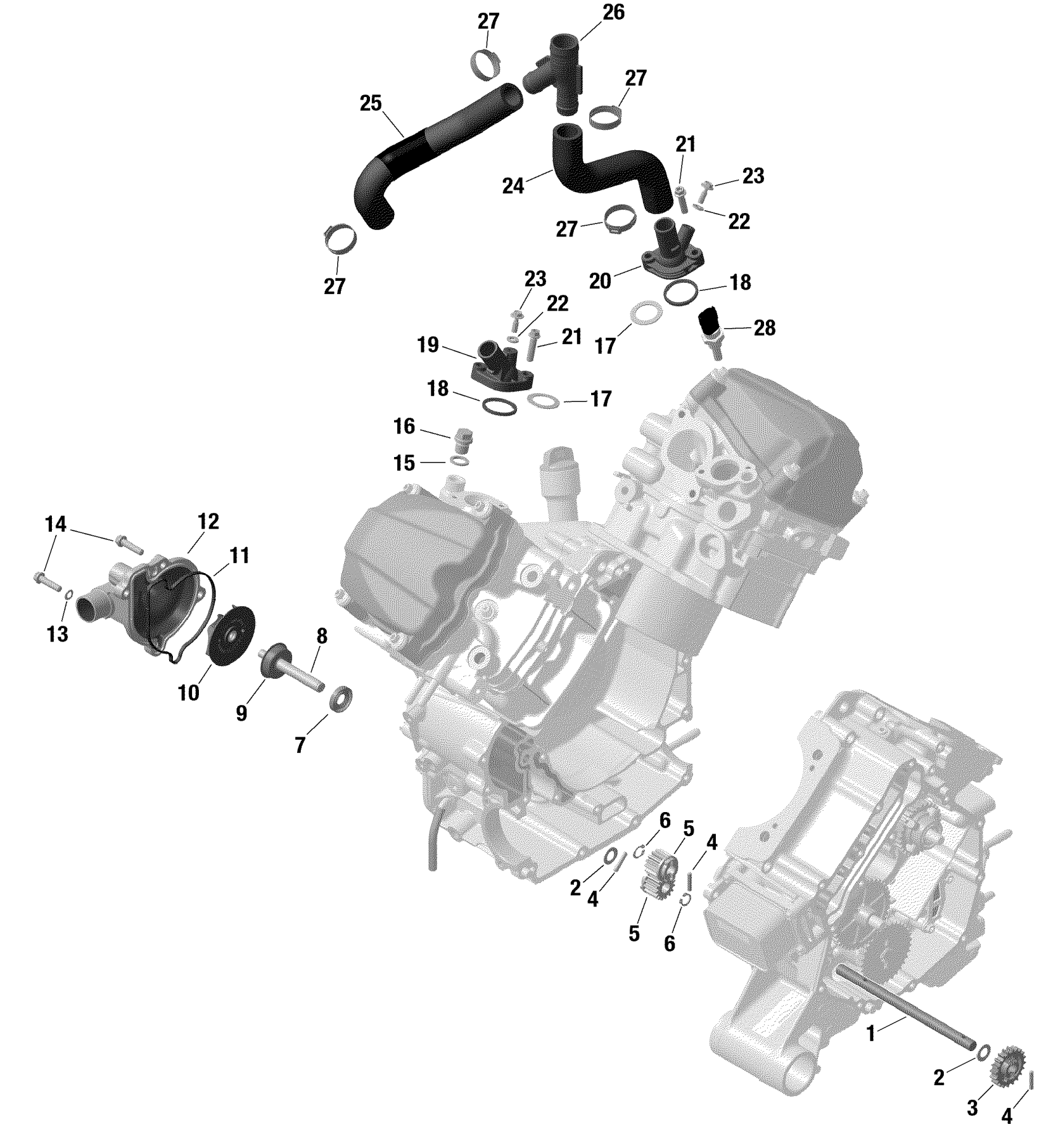

Can-Am Maverick Sport 1000 - BASE - 2021 Rotax - Engine Cooling Diagram

#

Description
Price

1

Intermediate Shaft

420620500

Unavailable

2

Thrust Washer

420827590

$3.86

3

Water Pump Gear

420434330

Unavailable

4

Needle Pin

420232420

Unavailable

5

Pump Gear, 15 Teeth

420234627

Unavailable

6

Circlip

504152282

$3.11

7

Oil Seal

420650315

$9.62

8

Water Pump Shaft Ass'y | Includes 8a to 8b

420620175

Unavailable

9

Rotary Seal

420650371

Unavailable

10

Water Impeller

420822750

Unavailable

11

Kit Water Pump Housing

703501124

$50.74

12

Gasket

420651191

$8.34

13

Seal Washer

420230415

$1.77

14

Torx Flange Screw M6 X 25

420641238

Unavailable

15

Copper Washer

420250640

$0.81

16

Plug screw

420841924

Unavailable

17>18

Spacer Ass'y | Includes 40 to 41

420927837

Unavailable

18

Thermostat Gasket

420650300

Unavailable

19

Thermostat Cover

420222696

Unavailable

20

Thermostat Cover

420222697

Unavailable

21

Torx Flange Screw M6 X 25

420641238

Unavailable

22

Gasket Ring

420650255

Unavailable

23

Screw M5 X 16

420441621

Unavailable

24

Rear Head Hose

420822696

Unavailable

25

Front Head Hose

420822701

Unavailable

26

Y-Fitting

709200414

Unavailable

27

Clamp

420251578

Unavailable

28

Temperature Sensor

278002895

$31.82
