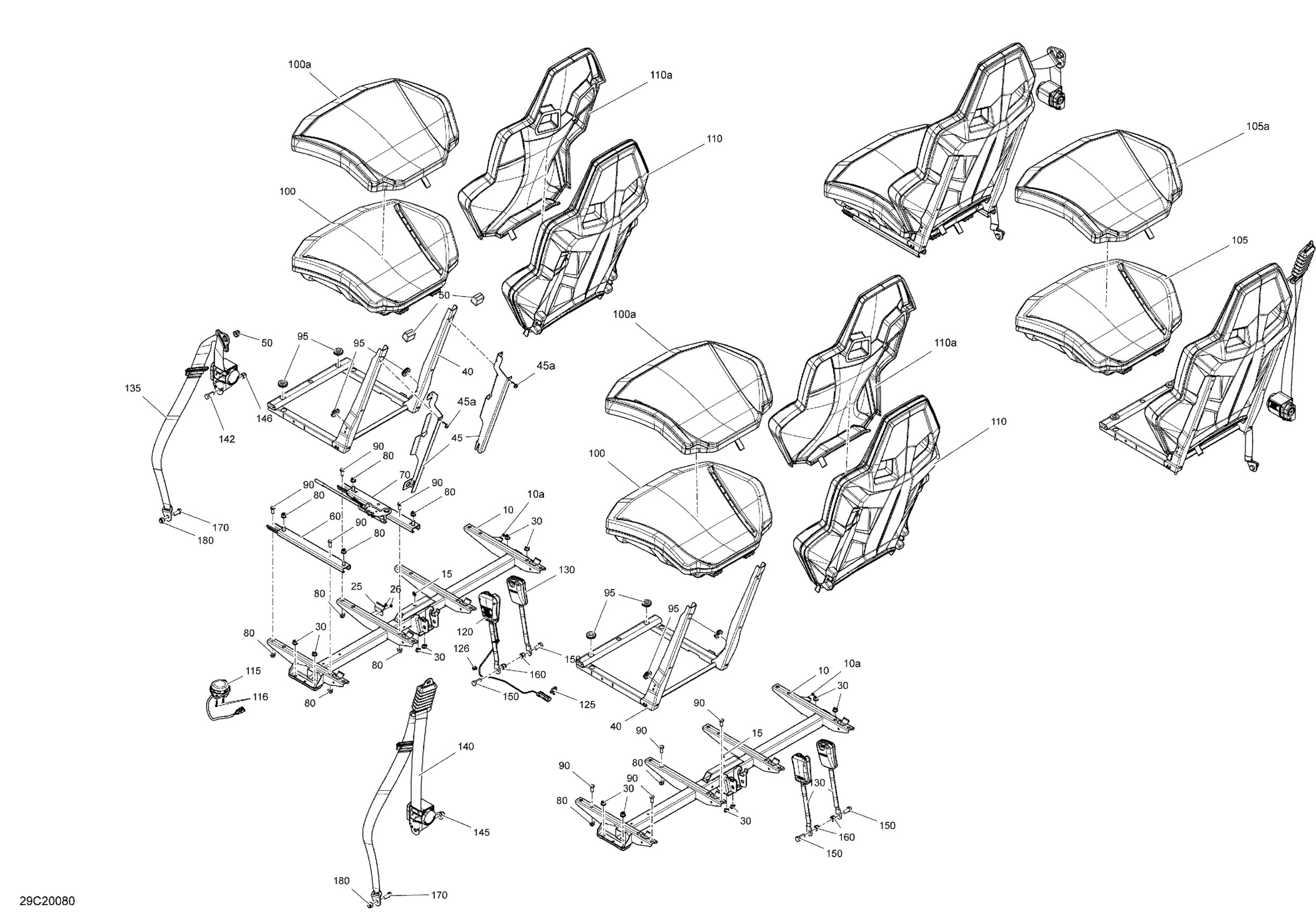

Can-Am Maverick Sport MAX 1000R - T Regulation, 2020 Seat Diagram

#

Description
Price

10

Seat Member | Includes 10 to 10a

708002568

$359.97

10a

Pop Rivet 3/16"

390402200

$0.26

15

Insert Half Hex Body M6 x 1.0

250100199

$2.54

25

Seat Stopper

708003672

$2.75

26

Pop Rivet 3/16"

390402200

$0.26

30

Hex. Flange Elastic Nut M8

233281414

$1.14

40

Seat Frame

708002423

$313.82

45

Seat Support Kit | Includes 45 to 45c

708002945

$189.20

45a

Hex. Flange Screw M6 X 16

207661654

$1.74

50

Cap Kit

708003094

$36.89

60

LH Rail

708000848

$50.74

70

RH Rail

708002711

$32.28

80

Hex. Flange Elastic Nut M8

233281414

$1.14

90

Hex. Screw M8 X 20

207182044

$0.61

95

Grommet

517303756

$3.15

100

Cushion Ass'y

708002847

$235.35

100a

Not Available As Spare Part - Friction Washer

Unavailable

105

Cushion Ass'y

708002847

$235.35

105a

Not Available As Spare Part - Friction Washer

Unavailable

110

Backrest Ass'y

708002859

$332.28

110a

Not Available As Spare Part - Friction Washer

Unavailable

115

Passenger Detection Switch

710008103

$72.28

116

Torx Screw Truss Head K50X20 T20

250000760

$1.74

120

Driver Buckle

708002331

$69.20

125

Christmas Tree Tie-Rap

710005237

$6.75

126

Dart Tie Rap 200MM

710003168

$5.72

130

Passenger Buckle

708002329

$64.58

135

Safety Belt

708002835

$235.35

140

Safety Belt

708003378

$230.74

142

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

145

Elastic Flange Nut M12

233221416

$2.33

146

Lock Nut Nylon 7/16

250100183

$1.64

150

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

160

Lock Nut Nylon 7/16

250100183

$1.64

170

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

180

Lock Nut Nylon 7/16

250100183

$1.64
