Description

Price

15

Black, Frame Ass'y

715006795

Unavailable

30

Deep Black, Front Cage Kit | Includes 30 to 30c

715009362

$619.99

35

Deep Black, Rear Cage Ass'y

715009349

$619.99

37

Deep Black, Rear Cage Extension

705211125

$44.99

38

Insert Half Hex Body M6 x 1.0

250100199

$2.54

40

Mid Cage Max

703501203

$519.99

42

Deep Black, Cage Extension

705209848

$41.99

47

LH Front Bumper

705206303

$110.74

48

RH Front Bumper

705206308

$110.74

49

Cross Member

705206313

$36.89

50

Deep Black, Front Bumper

705209043

$474.58

55

Brake Support

705206217

$50.74

57

DPS Support

705206294

$66.12

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

65

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

70

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

75

Torx Truss Screw M8 X 16

250000746

$2.78

80

Hex Torx Truss M8 X30

250000745

$3.05

82

Bushing

705207229

$11.54

85

Hex. Elastic Flange Nut M8

233281416

$1.25

90

Hex. Elastic Flange Nut M8

233281416

$1.25

98

LH Male Door Hinge Ass'y | Includes 98 to 98d

705211564

$444.58

99

RH Male Door Hinge Ass'y | Includes 99 to 99d

705211565

$444.58

115

Bearing Support

705211563

$45.35

116

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

120

Central Tube

705209434

$146.89

125

Insert Half Hex Body M8 x 1.25

293450307

$2.03

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

135

Torx Truss M8 X 90

250000806

$6.15

140

Hex. Flange Nut M8

233081416

$1.63

145

Drawbar Ass'y | Includes 230 to 230c

705208230

$156.89

145a

Hitch Pin

705204490

$54.58

145b

Hitch Approval Decal

704906897

$16.89

150

Front Coupling Device Ass'y | STD Package

705206240

$44.58

150a

Pin

605456518

$3.92

150b

Socket Screw M10 x 30 | XT

205003044

$2.61

150c

Hex. Flange Elastic Nut M10

233201414

$1.26

155

Pop Rivet 3/16”

293150087

$0.92

1510

Hex. Flange Screw M10 X 35

250000855

$1.46

1520

Flange Elastic Nut M10

233201466

$2.63

1530

Hex. Flange Screw M10 X 70

207607056

$3.38

1550

Hex. Flange Screw M8 x 60

207686044

$2.56

1560

Sleeve

705210648

$9.29

1570

Hex. Flange Screw M10 X 25

207502546

$1.74

1580

Torx Truss M/S M8 X 20

250000953

$1.74

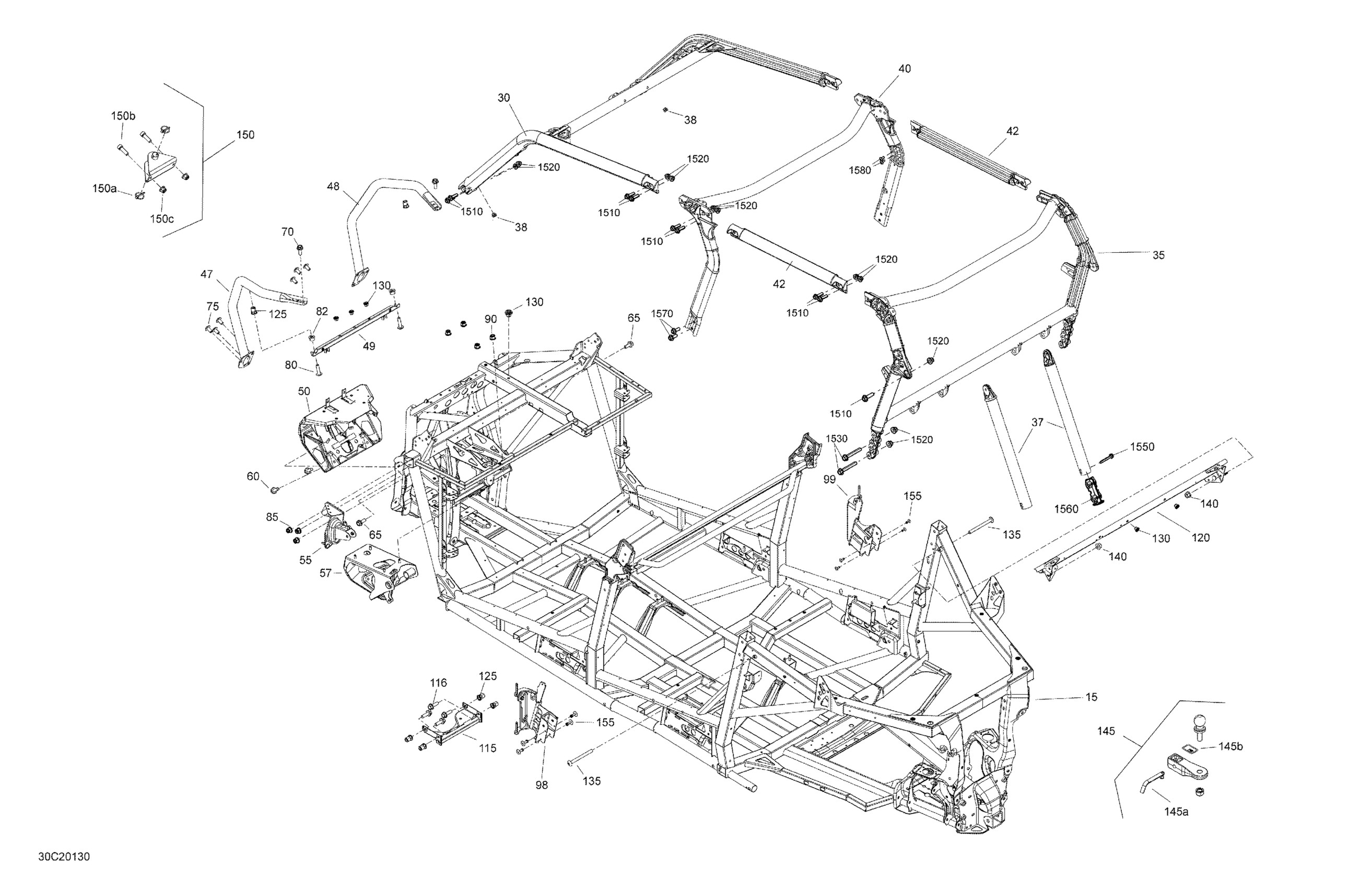

Can-Am Maverick Sport MAX 1000R - T Regulation, 2020 Frame Diagram

Black, Frame Ass'y
