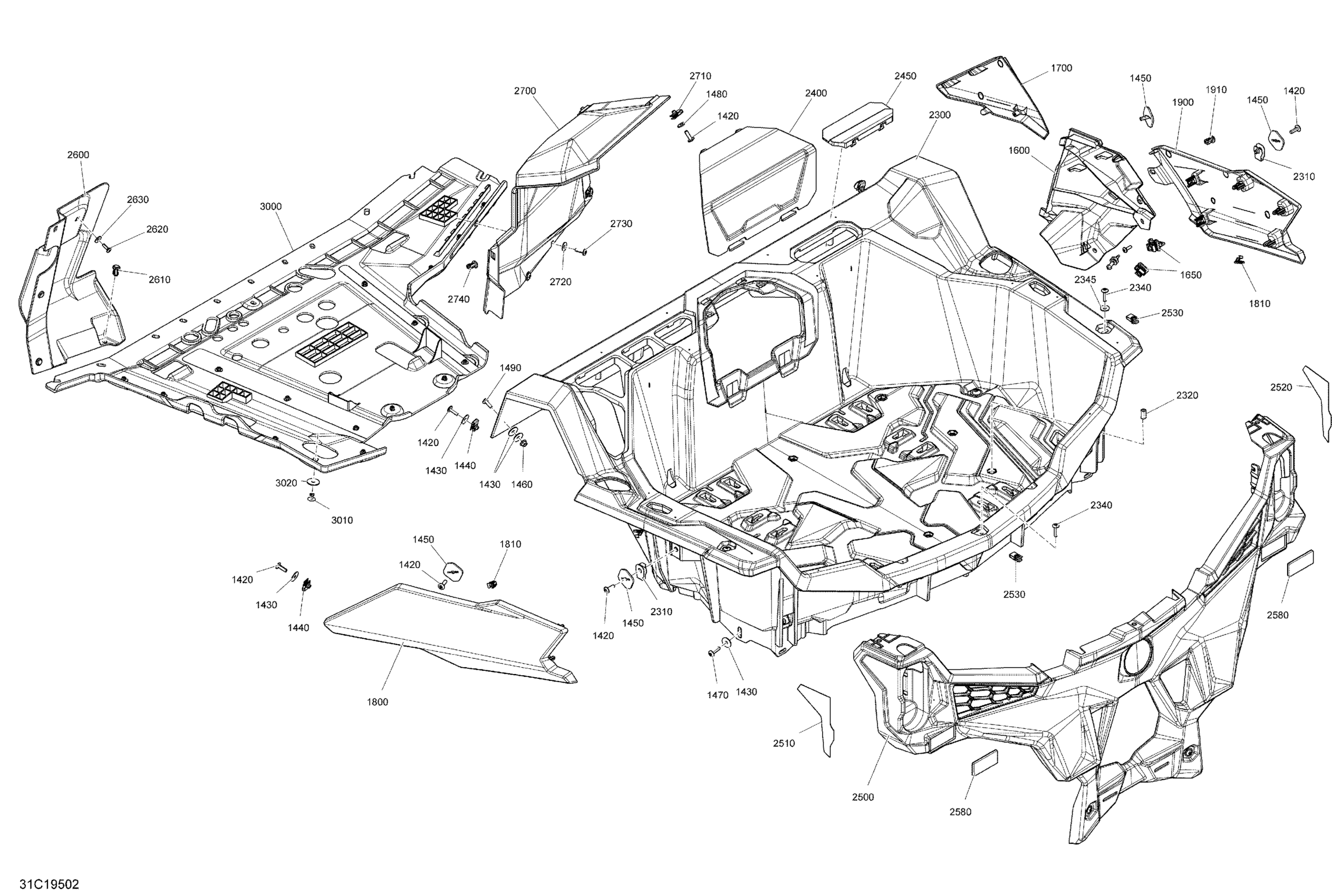

Can-Am Maverick Sport MAX 1000R - DPS - T1B Series, 2019 Body - Rear Parts - Red Diagram

Description

Price

1420

Torx Screw M6 X 20

250000722

$1.34

1430

Flat Washer M6.6 X 22

250200162

$1.91

1440

Panel Nut M6 X 1.0

250100198

$1.73

1450

Support Plate

705003841

$0.91

1460

Hex. Elastic Flange Nut M6

233161464

$0.83

1470

Torx Truss Screw M6 X 25

250000807

$1.74

1480

Stainless Steel Flat Washer

234062670

$1.74

1490

Torx Screw M6 X 20

250000722

$1.34

1600

Air Filter Acces Door

705011338

$73.82

1650

Clip

708400285

$4.02

1700

Red, Acces Panel Trim | DPS, Red Model

705016392

$100.74

1800

Red, LH Rear Cargo Trim | DPS, Red Model

705012427

$172.28

1810

Clip

517306478

$1.37

1900

Red, RH Rear Cargo Trim | DPS, Red Model

705012428

$172.28

1910

Tuflok Plastic Rivet

293150230

$1.21

2300

Rear Box

705016885

$373.82

2310

Panel Nut M6 X 1.0

250100224

$1.70

2320

Hex. Coupling Nut M6

250100207

$1.94

2340

Torx Truss Screw M6 X 25

250000807

$1.74

2345

Stainless Steel Flat Washer

234062670

$1.74

2400

Access Cover Kit

715006766

$27.66

2400

Liquid Acces Cover

715006150

$36.89

2400

Liquid Acces Cover

715006152

$36.89

2450

Air Intake Cover

705011340

$13.85

2500

Rear Fascia

705011426

$157.66

2510

LH Rear Reflector

704906815

$11.00

2520

RH Rear Reflector

704906816

$11.15

2530

Panel Nut M6 X 1.0

250100198

$1.73

2580

Red Reflector

520001820

$17.66

2600

LH Rear Wheel Arch Protector

705014231

$41.51

2610

Tuflok Plastic Rivet

293150230

$1.21

2620

Torx Screw K50 X 16

250000720

$1.39

2630

Washer M5

250200025

$0.61

2700

RH Rear Inner Fender

705011513

$42.28

2710

Panel Nut M6 X 1.0

250100198

$1.73

2720

Stainless Steel Flat Washer

234062670

$1.74

2730

Torx Screw M6 X 20

250000722

$1.34

2740

Tuflok Plastic Rivet

293150230

$1.21

3000

Rear Skid Plate

705014697

$96.89

3010

Pop Rivet 3/16”

293150087

$0.92

3020

Washer

224060251

$0.57
