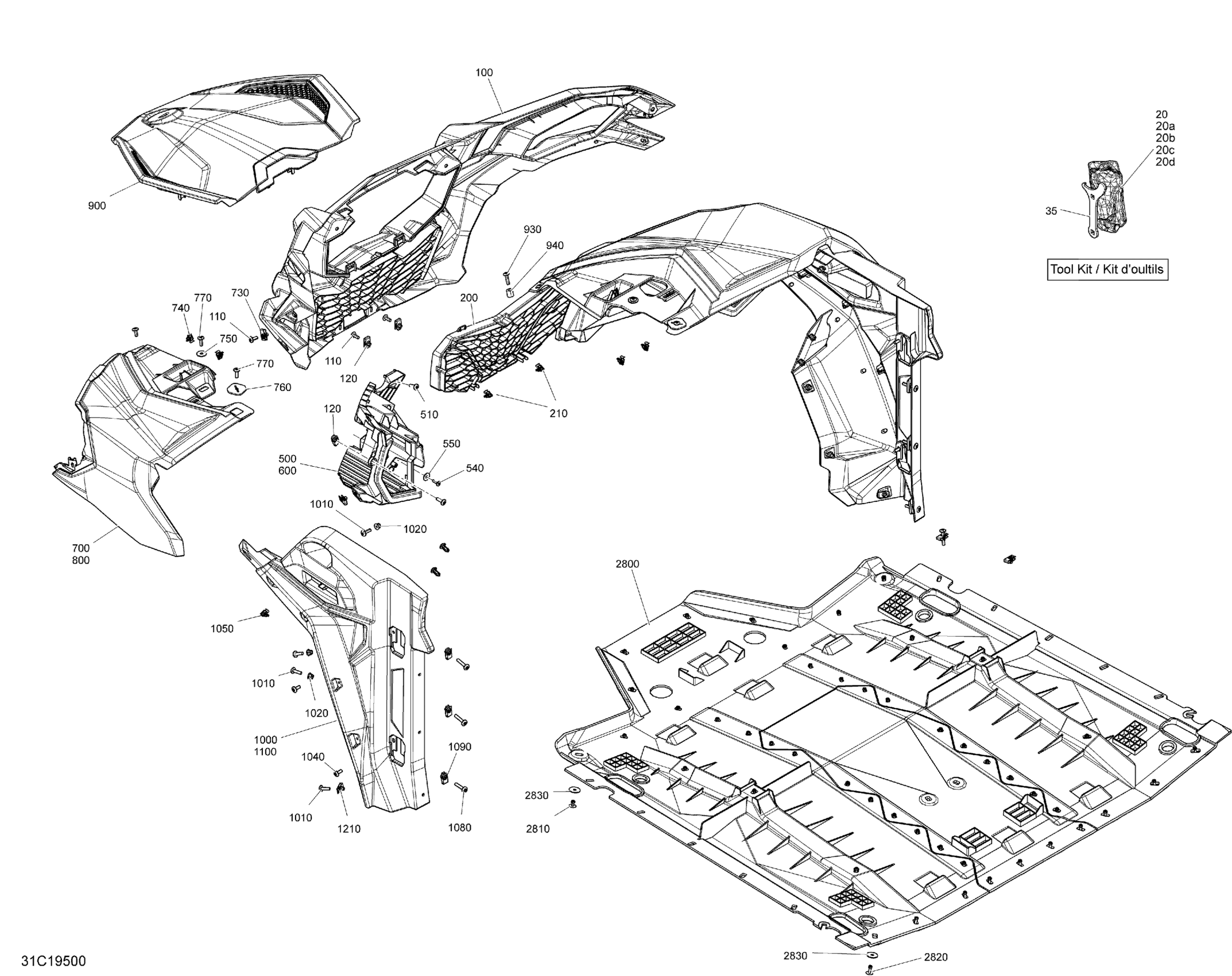

Can-Am Maverick Sport MAX 1000R - DPS - T1B Series, 2019 Body - Front Parts - Red Diagram

Description

Price

Tool Kit | Includes 90 to 90k

704700169

$74.99

20a

Socket Wrench 14/16MM

529000085

$6.99

20b

Screw Driver

529000021

$3.99

20c

Driven Open Tool

529000088

$17.99

20d

Torx Key T30

708200340

$9.22

Adjustment Wrench

529000057

$4.99

100

Front Fascia

705011317

$248.43

110

Torx Truss Screw M6 X 16

250000721

$1.39

120

Panel Nut M6 X 1.0

250100198

$1.73

200

Fascia Removable Grid

705011318

$203.05

210

Clip

517306478

$1.37

500

LH Headlamp Structure

705011319

$213.05

510

Torx Screw M6 X 20

250000722

$1.34

540

Torx Screw K50 X 16

250000720

$1.39

550

Stainless Steel Flat Washer

234062670

$1.74

600

RH Headlamp Structure

705011320

$213.05

700

Red, LH Hood Ass'y | DPS, Red Model

705012411

$285.35

730

Panel Nut M6 X 1.0

250100198

$1.73

740

Clip

517306478

$1.37

750

Flat Washer M6.6 X 22

250200162

$1.91

760

Support Plate

705003841

$0.91

770

Torx Screw M6 X 20

250000722

$1.34

800

Red, RH Hood Ass'y | DPS, Red Model

705012412

$285.35

900

Removable Hood

705011322

$98.43

930

Torx Truss Screw M6 X 25

250000807

$1.74

940

Bushing

705502616

$8.49

1000

LH Front Mudguard

705011323

$55.35

1010

Torx Screw M6 X 20

250000712

$1.74

1020

Hex. Flange Elastic Nut M6

233261494

$1.26

1040

Torx Truss Screw M6 X 16

250000721

$1.39

1050

Clip

517306478

$1.37

1080

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

1090

Panel Nut M6 X 1.0

250100198

$1.73

1100

RH Front Mudguard

705011324

$55.35

1210

Panel Nut M6 X 1.0

250100198

$1.73

2800

Kit Plate_Skid F

703501097

$161.51

2810

Pop Rivet 3/16”

293150087

$0.92

2820

Pop Rivet 3/16”

293150087

$0.92

2830

Washer

224060251

$0.57
