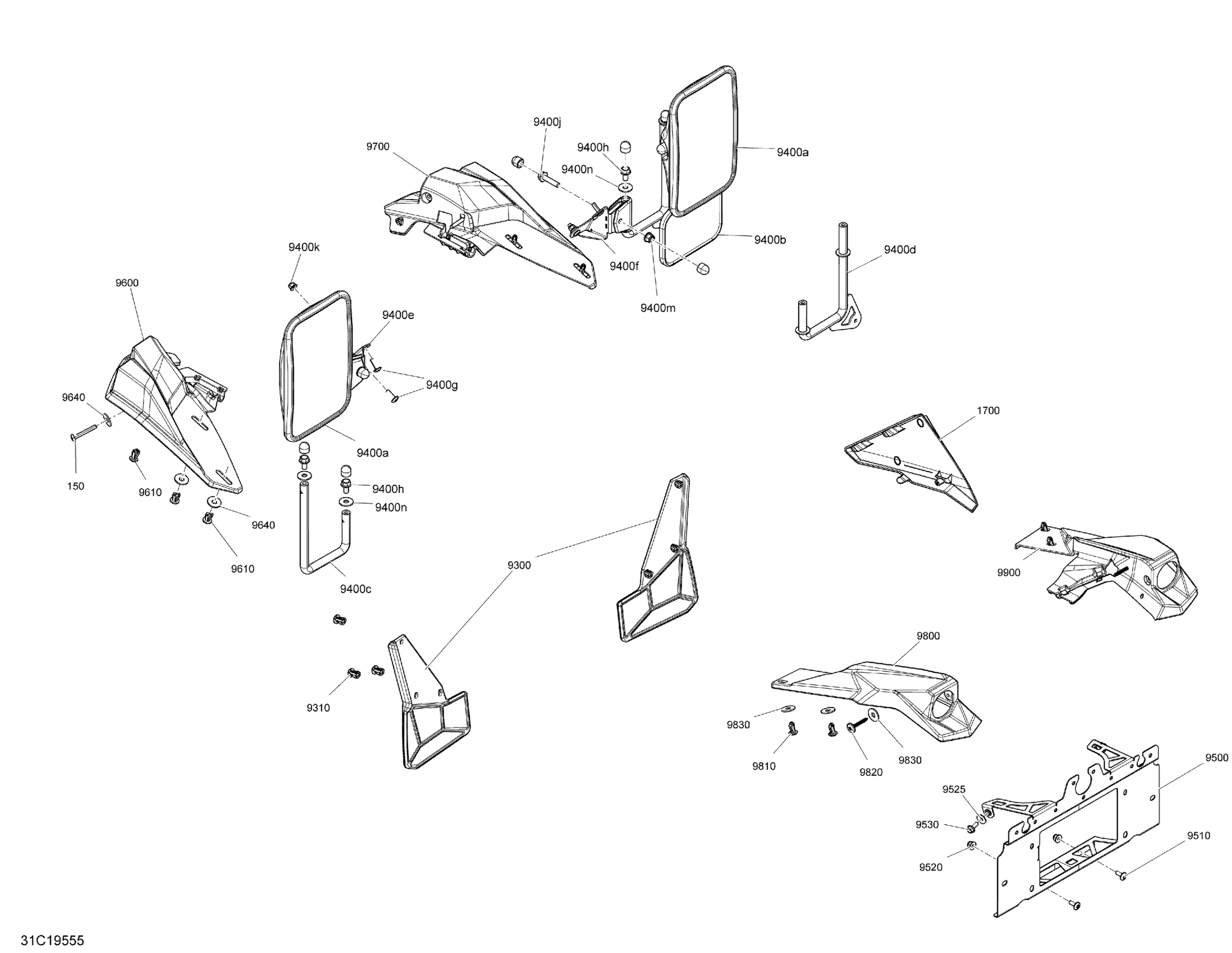

Can-Am Maverick Sport MAX 1000R - DPS - T1B Series, 2019 Body - Accessories Parts Europe Diagram

Description

Price

150

Torx Screw M6 X 45

250000748

$1.56

1700

Red, Acces Panel Trim | DPS, Red Model

705016392

$100.74

9300

Front Mud Flap Model T

705012793

$55.35

9310

Tuflok Plastic Rivet

293150230

$1.21

9400a

Mirror

705011497

$78.43

9400b

Wide Angle Lateral Mirror

705013819

$78.43

9400c

LH Mirror Rod Ass'y

705013823

$46.12

9400d

Mirror Rod

705013817

$54.58

9400e

LH Mirror Support

705012897

$69.20

9400f

RH Mirror Support

705012898

$69.20

9400g

Torx Truss Screw M6 X 20

250000350

$4.39

9400h

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.08

9400j

Hex. Flange Screw M8 X 35

207683544

$1.39

9400k

Hex. Flange Elastic Nut M6

233261494

$1.26

9400m

Hex. Flange Elastic Nut M8

233281414

$1.14

9400n

Stainless Steel Flat Washer

234082670

$1.74

9500

Licence Plate Support Ass'y | Includes 9500 to 9500a

705013731

$110.74

9510

Torx Truss Screw M6 X 16

250000721

$1.39

9520

Hex. Flange Elastic Nut M6

233261466

$1.66

9525

Stainless Steel Flat Washer

234062670

$1.74

9530

Hex. Flange Screw M6 X 16

207661654

$1.74

9600

LH Front Flasher Support Model T

705012791

$59.97

9610

Tuflok Plastic Rivet

293150230

$1.21

9640

Stainless Steel Flat Washer

234082670

$1.74

9700

RH Front Flasher Support Model T

705012792

$59.97

9800

LH Rear Flasher Support Model T

705012799

$59.97

9810

Tuflok Plastic Rivet

293150230

$1.21

9820

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56

9830

Stainless Steel Flat Washer

234082670

$1.74

9900

RH Rear Flasher Support Model T

705012800

$29.20
