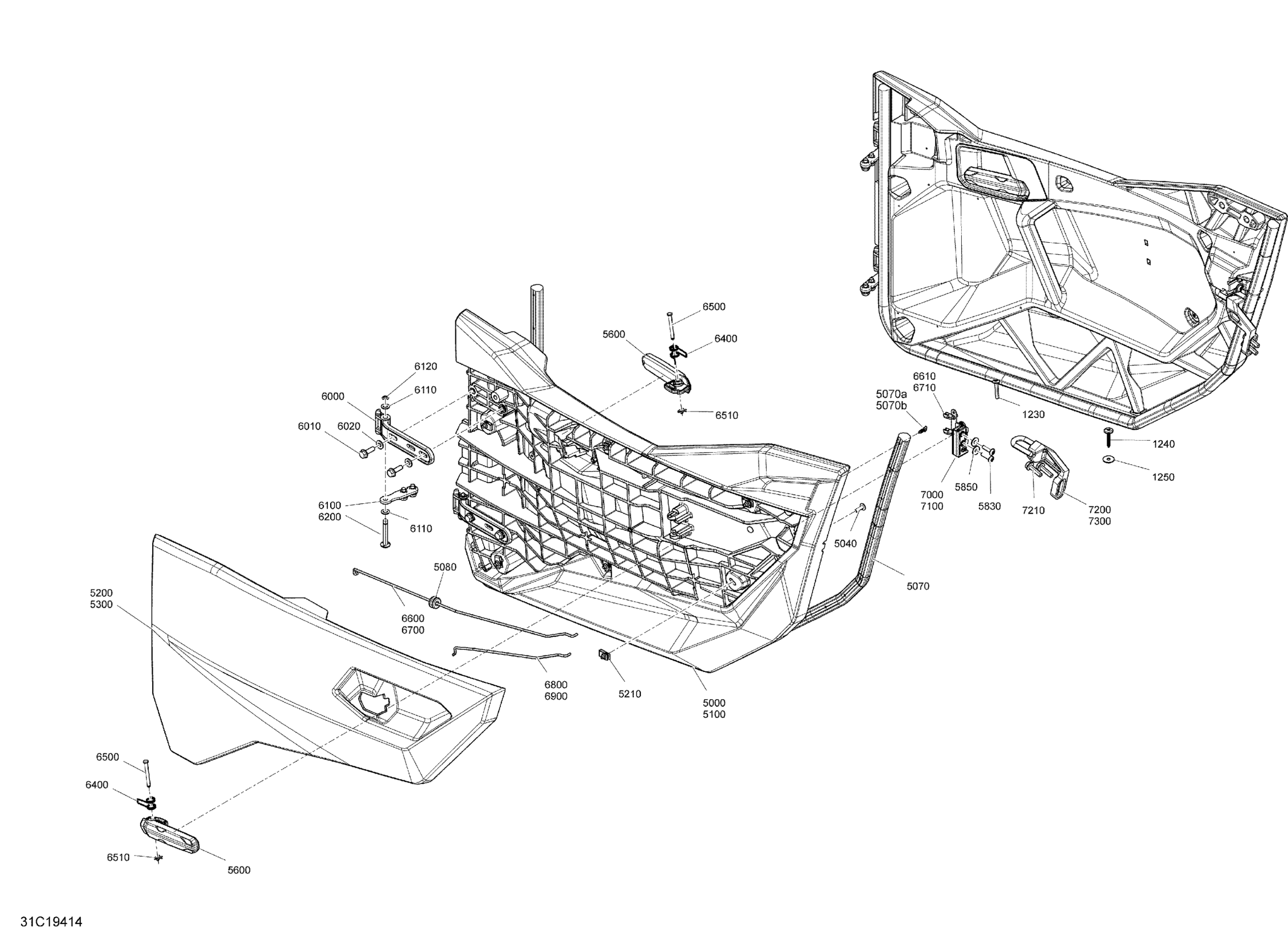

Can-Am Maverick Sport 1000R - DPS - 2019 Body Maverick Sport - 1000R - Red - Yellow - Door Parts Diagram

Description

Price

1230

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.00

1240

Torx Truss Screw Head PT.K50 X 40

250000840

$1.79

1250

Flat Washer M6.6 X 22

250200162

$2.19

5000

LH Front Door Panel

705012982

$293.25

5040

Torx Screw M6 X 20

250000722

$1.54

5070

LH Front Door Gasket Ass'y | Includes 5060 to 5060c

293250501

$36.54

5070a

Natural Color, Dart

293730081

$2.68

5070b

Red, Dart

293730082

$2.68

5080

Grommet

293720104

$4.76

5100

RH Front Door Panel

705012983

$293.25

5200

Can-Am Red, LH Door Trim Panel | Red

705013440

$225.34

5200

Sunburst Yellow, LH Door Trim Panel | Sunburst Yellow

705013442

$225.34

5210

Panel Nut M6 X 1.0

250100198

$1.99

5300

Can-Am Red, RH Door Trim Panel | Red

705013441

$225.34

5300

Sunburst Yellow, RH Fr. Door Trim Panel | Sunburst Yellow

705013443

$225.34

5600

Door Handle

705017152

$12.57

5830

Torx Truss Screw M6 X 25

250000807

$2.00

5850

Stainless Steel Flat Washer

234062670

$2.00

6000

Hinge

705013228

$23.85

6010

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

6020

Washer

503192494

$3.01

6100

Lower Hinge Ajustement

705011629

$11.51

6110

Flat Washer 8 mm, Nylon

234081100

$1.15

6120

Circlip | RS STD

705601030

$4.00

6200

Upper Hinge Ajustement

705012506

$11.51

6400

Handle Spring

705013062

$13.28

6500

Handle Axle

705207440

$10.55

6510

External Retaining Ring

705601875

$3.94

6600

LH Upper Locking Rod

705207146

$7.67

6610

RH Tie Rod Clip

708300202

$2.13

6700

RH Upper Locking Rod

705207147

$7.67

6710

LH Tie Rod Clip

708300182

$2.13

6800

LH Lower Locking Rod

705207150

$3.81

6900

RH Lower Locking Rod

705207151

$3.81

7000

LH Latch

705013095

$53.70

7100

RH Latch

705013096

$53.70

7200

LH Stricker Support

705207027

$23.85

7210

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63

7300

RH Stricker Support

705207028

$23.85
