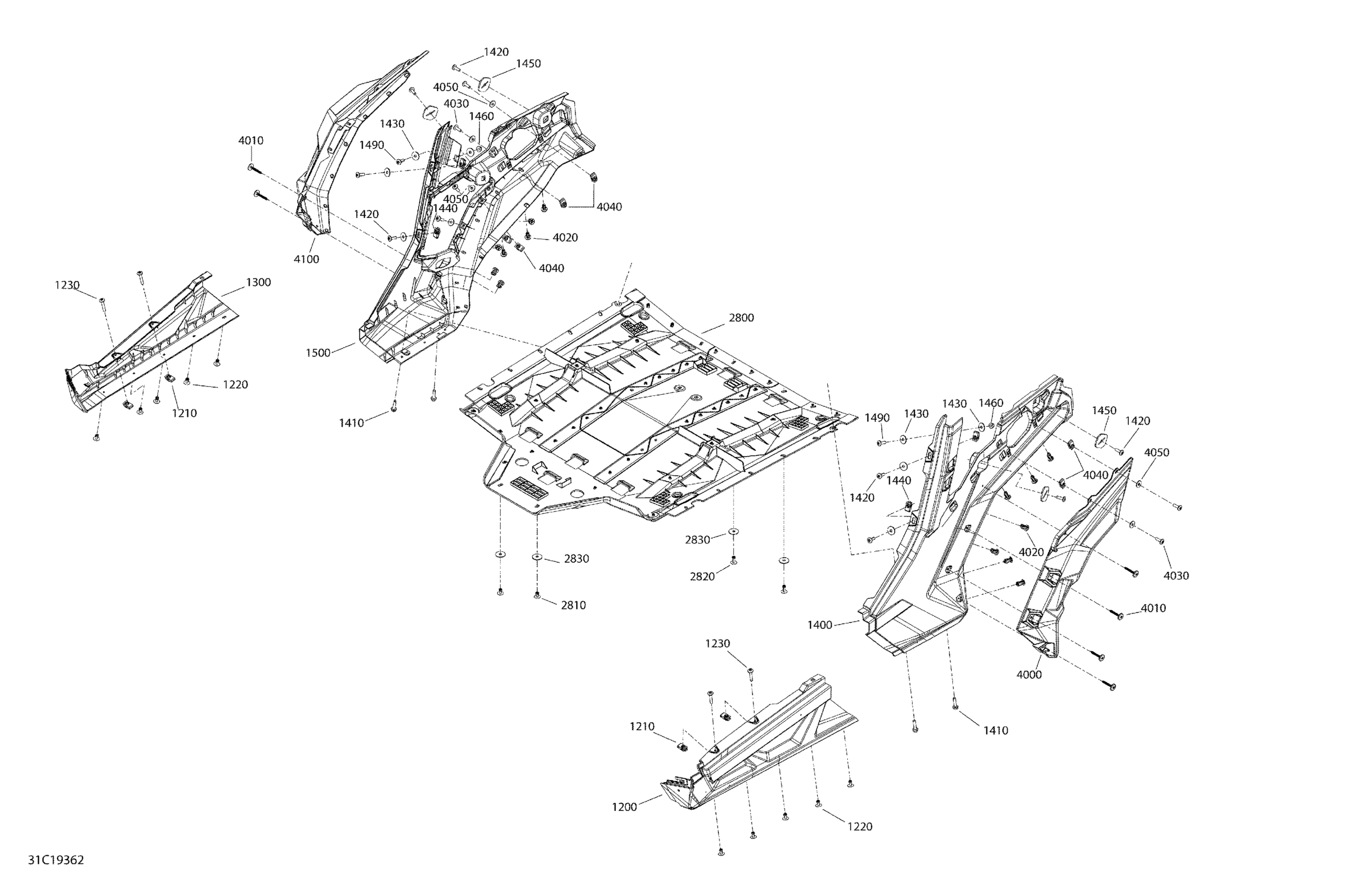

Can-Am Maverick Sport 1000R - DPS - 2019 Body - 1000R - Middle Section Diagram

Description

Price

1200

LH Rocker Panel

705011331

$78.43

1210

Panel Nut M6 X 1.0

250100198

$1.73

1220

Pop Rivet 3/16”

293150108

$1.23

1230

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

1300

RH Front Rocker Panel

705016939

$78.43

1400

LH Rear Panel

705011335

$189.97

1410

Hex. Flange Screw M6 X 20

207662054

$0.83

1420

Torx Screw M6 X 20

250000722

$1.34

1430

Flat Washer M6.6 X 22

250200162

$1.91

1440

Panel Nut M6 X 1.0

250100198

$1.73

1450

Support Plate

705003841

$0.91

1460

Hex. Elastic Flange Nut M6

233161464

$0.83

1490

Torx Screw M6 X 20

250000722

$1.34

1500

RH Rear Panel

705011336

$189.97

2800

Kit Plate_Skid F

703501097

$161.51

2810

Pop Rivet 3/16”

293150087

$0.92

2820

Pop Rivet 3/16”

293150087

$0.92

2830

Washer

224060251

$0.57

4000

LH Rear Mud Guard

705012097

$55.35

4010

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56

4020

Tuflok Plastic Rivet

293150230

$1.21

4030

Torx Screw M6 X 20

250000722

$1.34

4040

Panel Nut M6 X 1.0

250100198

$1.73

4050

Stainless Steel Flat Washer

234062670

$1.74

4100

RH Rear 60" Mud Guard Extension

705012098

$55.35

10000

Torx Head Screw M6 X 16

250000717

$1.74
