Description

Price

10

Deep Black, Chain Case Ass'y | Includes 10 to 10b

504154290

$179.97

20

Socket Head Screw M6 X 18

250001213

Unavailable

70

Not Available As Spare Parts

XXX

Unavailable

75

O-Ring

293300123

$1.00

80

Flange Elastic Nut M6

233261434

Unavailable

100

Oil Seal

293200168

Unavailable

110

Ball Bearing

293350153

$11.15

120

Circlip

504152576

Unavailable

130

Shim

504152628

$8.40

140

Sprocket 21 Teeth

504153910

$42.28

150

Adapter Ass'y

504154311

$60.74

150c

Magnetic Cap | Includes 150c to 150c2

504154019

Unavailable

150c2

Cap

504154043

Unavailable

150d

O-Ring Seal

293300291

Unavailable

280

Spring Washer M10

504152784

Unavailable

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

Unavailable

1100

Oil Seal

293200159

Unavailable

1120

Circlip

504152582

Unavailable

1130

Sprocket 53 Teeth

504153998

$46.12

1140

Circlip

504152572

Unavailable

1500

Drive Chain 116 Links

504153397

Unavailable

1510

Hair Pin

414575600

Unavailable

1520

Adjustment Screw

504153760

Unavailable

1540

Hex. Countersunk Drain Plug

250500013

Unavailable

1545

Hex. Countersunk Drain Plug

250500013

Unavailable

1550

O-Ring

293300202

Unavailable

1600

Chain Tensioner

504154577

Unavailable

1610

Slider Chain

504153312

Unavailable

1650

Circlip

293370105

Unavailable

1690

Hex. Button Head Screw M8 X 1.25 X 35

250000764

Unavailable

1700

Deep Black, Chain Case Cover Ass'y | Includes 1700 to 1700f

504154079

$179.97

1700d

Clip Connector

515178223

Unavailable

1700f

Braided Sleeve

415130141

Unavailable

1710

O-Ring

293300200

Unavailable

1720

Hex. Flange Screw M6X20

250001153

Unavailable

1740a

Cap

504152930

$6.26

1740b

Straight Pipe Fitting

293710180

Unavailable

1740c

Polyurethane Hose 10000Mm Long

219704410

Unavailable

1790

Hex. Flange Screw M6 X 35

250001015

Unavailable

2030

O-Ring

293300201

Unavailable

2040

Cap

504154043

Unavailable

2050

Circlip

504152572

Unavailable

2500

Bearing Housing Ass'y | Includes 2500 to 2500b

504153695

Unavailable

2500b

Clinch Stud, M8 X 25

250300028

Unavailable

2510

Hex. Flange Elastic Nut M8

233281414

Unavailable

3000

Drive Axle Ass'y | Includes 3000 to 3000g

504154635

Unavailable

3000b

Sold With Drive Axle

XXXX

Unavailable

3000c

Sold With Drive Axle

XXXX

Unavailable

3000d

Retaining Ring

504154417

Unavailable

3000f

Ball Bearing

293350059

Unavailable

3000g

O-Ring Seal

293300291

Unavailable

3200

Track 16 X 154 X 3,0 | Includes 3200 to 3200b

504154415

Unavailable

3200a

Track Guide

415130083

$3.12

3200b

Cleat

415130084

$7.38

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

Unavailable

4020

Washer

504082900

Unavailable

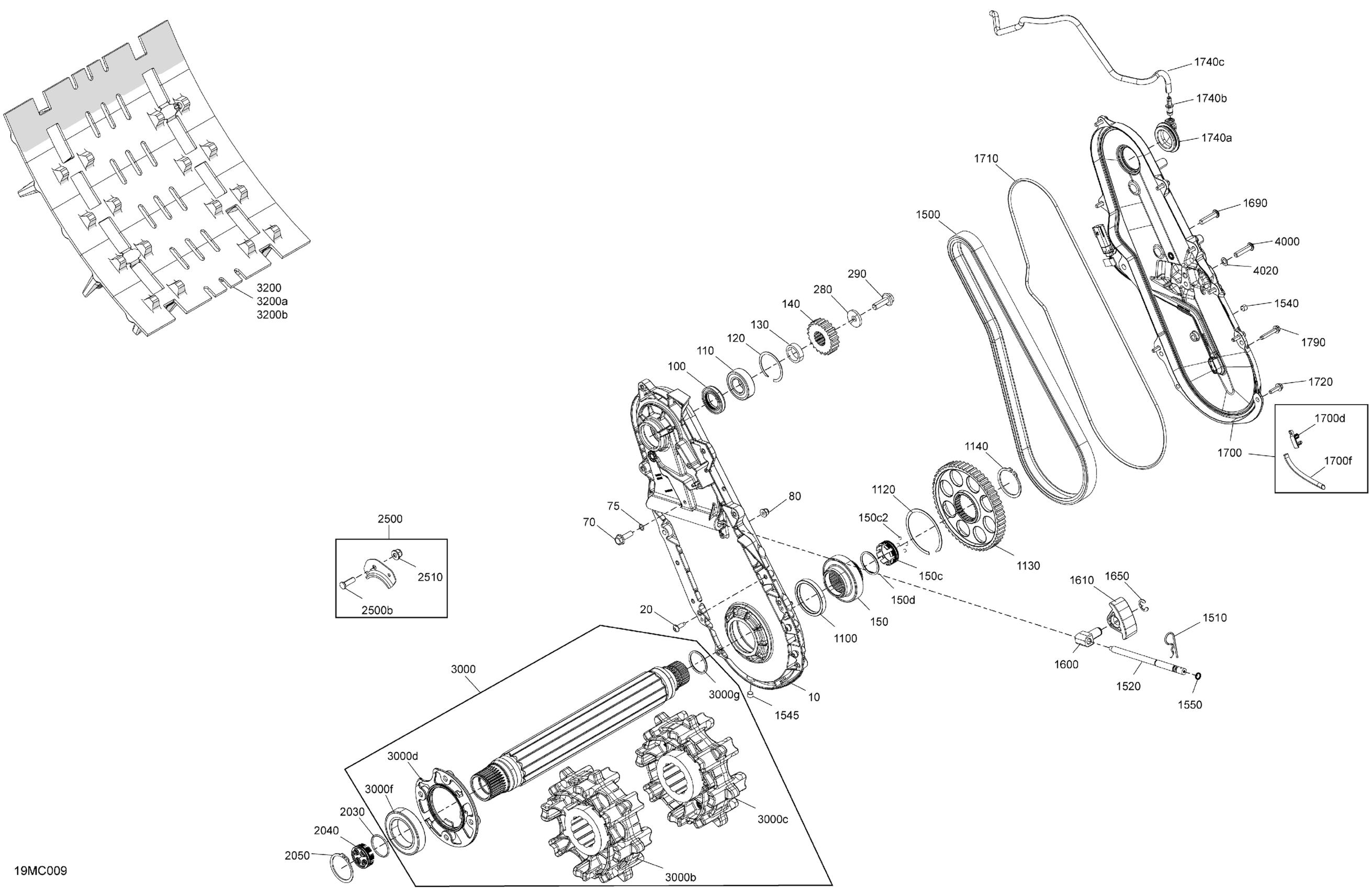

Ski-Doo FREERIDE 154 - 850 E-TEC - Europe, 2023 Drive - System Diagram

Socket Head Screw M6 X 18

Not Available As Spare Parts

Flange Elastic Nut M6

Oil Seal

Circlip

Magnetic Cap | Includes 150c to 150c2

Cap

O-Ring Seal

Spring Washer M10

Hex. Flange Screw M10 X 30, Scotch Grip

Oil Seal

Circlip

Circlip

Drive Chain 116 Links

Hair Pin

Adjustment Screw

Hex. Countersunk Drain Plug

Hex. Countersunk Drain Plug

O-Ring

Chain Tensioner

Slider Chain

Circlip

Hex. Button Head Screw M8 X 1.25 X 35

Clip Connector

Braided Sleeve

O-Ring

Hex. Flange Screw M6X20

Straight Pipe Fitting

Polyurethane Hose 10000Mm Long

Hex. Flange Screw M6 X 35

O-Ring

Cap

Circlip

Bearing Housing Ass'y | Includes 2500 to 2500b

Clinch Stud, M8 X 25

Hex. Flange Elastic Nut M8

Drive Axle Ass'y | Includes 3000 to 3000g

Sold With Drive Axle

Sold With Drive Axle

Retaining Ring

Ball Bearing

O-Ring Seal

Track 16 X 154 X 3,0 | Includes 3200 to 3200b

Hex. Button Head Screw M8 X 1.25 X 35

Washer
