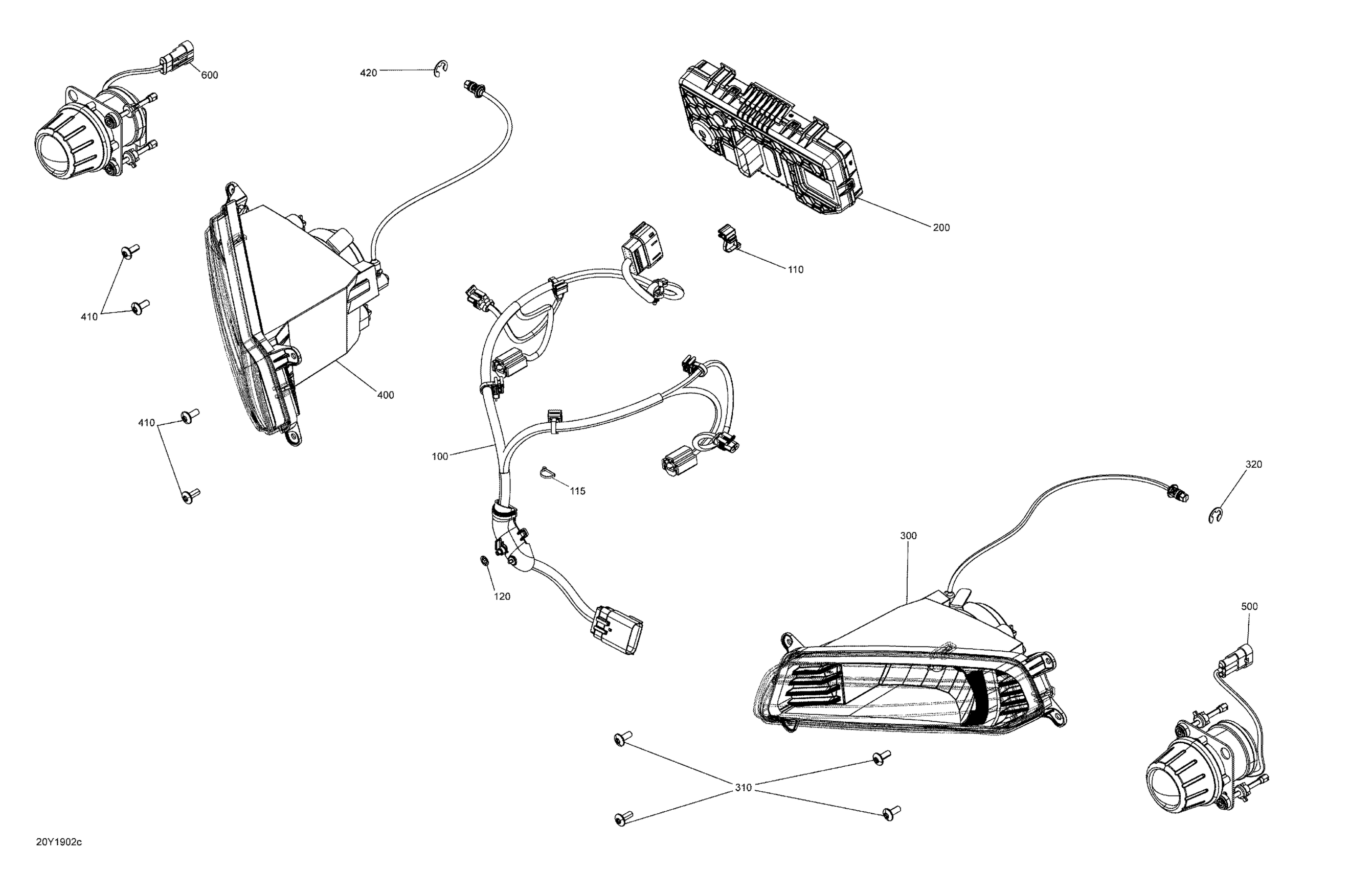

Can-Am F3 S SM6, 2019 Electrical System Console Diagram

Description

Price

100

Harness Console

710005454

$77.00

100

Harness

710008434

$94.00

110

Clip Tie-Rap

293750063

$8.45

115

Tie Rap Clip

293750062

$7.37

120

Push Nut

250100034

$1.11

200

Multifunction Gauge

710005253

$992.28

300>300c

LH Headlamp

710004701

$240.00

300a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

300b

Rubber Cap Protector

219800280

$17.66

300c

Spring

219800281

$3.23

310

Torx Truss Screw M6 X 16

250000721

$1.39

320

E-Circlip

293370013

$0.62

400>400c

RH Headlight | Includes 0d to 0d3

710006998

$240.00

400a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

400b

Rubber Cap Protector

219800280

$17.66

400c

Spring

219800281

$3.23

410

Torx Truss Screw M6 X 16

250000721

$1.39

420

E-Circlip

293370013

$0.62

500

LH Low Beam | Europe, Brazil

710004150

$440.00

500

LH Low Beam | Australia, Japan

710004152

$450.00

600

RH Low Beam | Europe, Brazil

710004151

$450.00

600

RH Low Beam | Australia, Japan

710004153

$450.00
