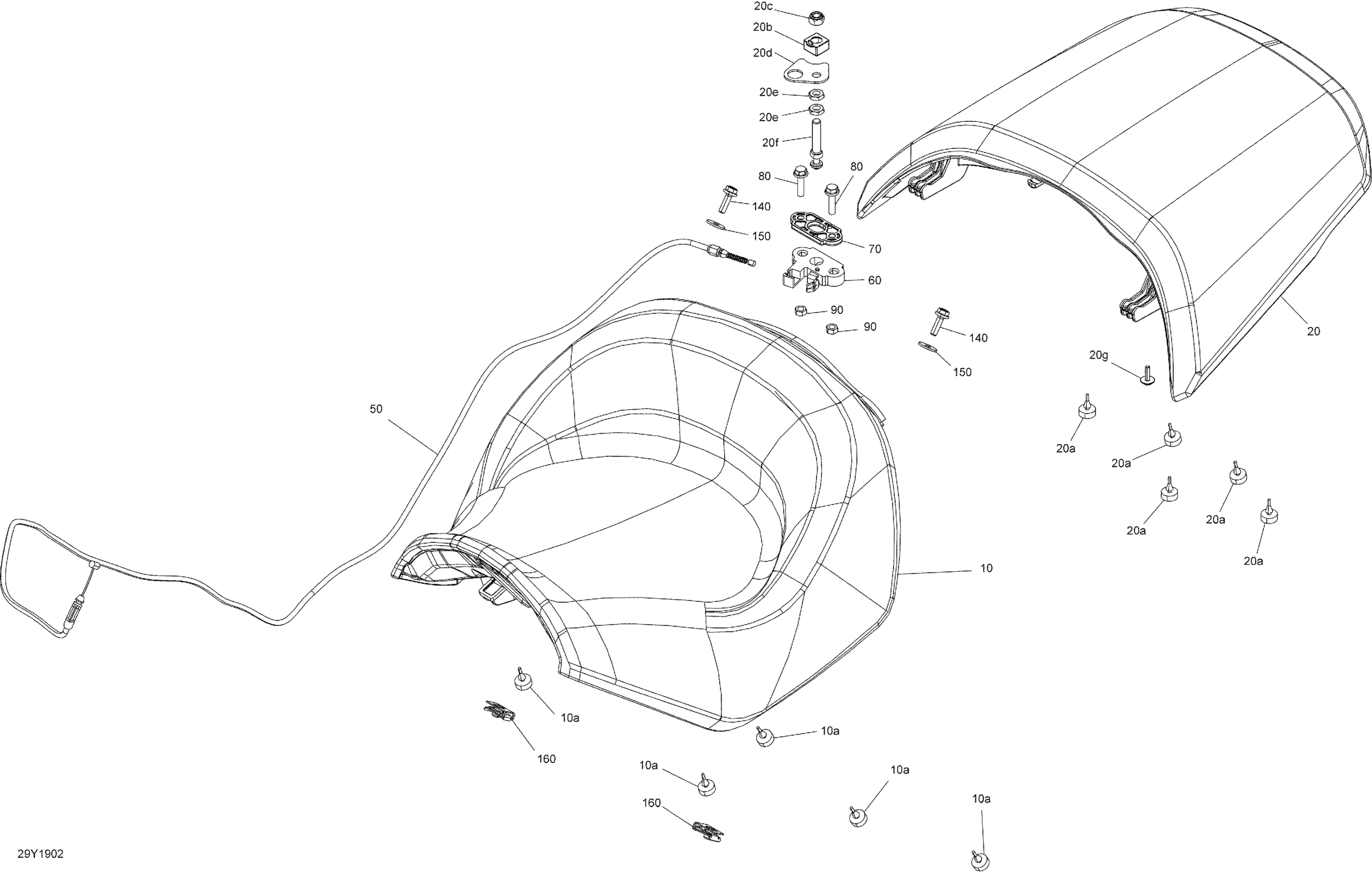

Can-Am F3 S SM6, 2019 Seat Diagram

#

Description
Price

10>10a

Seat Driver Ass'y | Includes 10 to 10c

708002806

$490.00

10a

Rubber Stopper

708000759

$3.61

10>10a

Driver Seat Ass'y | Package S B-429 Liquid Titan

708002909

$490.00

10a

Rubber Stopper

708000759

$3.61

20>20g

Seat Passenger Ass'y | Includes 20 to 20c

708002779

$380.00

20>20g

Passenger Seat Ass'y | Package S B-429 Liquid Titan

708002911

$380.00

20a

Rubber Stopper

708000759

$3.61

20b

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

20c

Hex. Elastic Nut M8 Brass

232581200

$1.29

20d

Washer

708001909

$10.00

20e

Hex. Jam Nut M8

232180600

$0.56

20f

Lug

708001741

$24.00

20g

Screw M4 X 16

250000725

$2.87

50

Seat Cable

708001743

$54.00

60

Latch

705007379

$29.00

70

Brace

708001771

$4.00

80

Hex. Flange Screw M6 X 25, Scotch Grip

207562556

$2.06

90

Hex. Nut M6

232061414

$0.44

140

Hex. Flange Screw M6 X 20

207662044

$1.66

150

Flat Washer

250200082

$0.35

160

Panel Nut M6 X 1.0

250100208

$1.07
