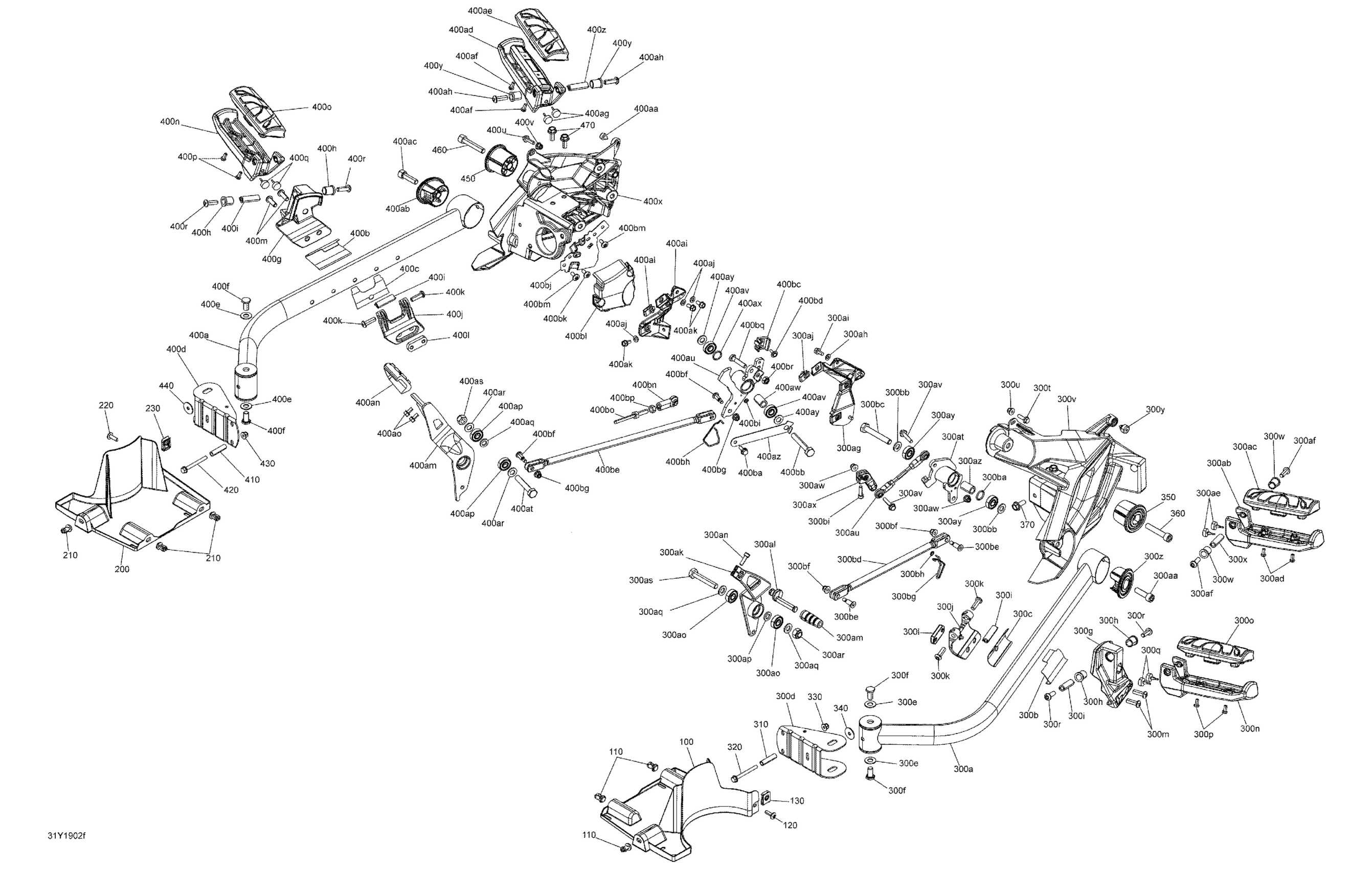

Can-Am F3 S SM6, 2019 Body And Accessories Footrest Diagram

#

Description
Price

100

LH Front Skid Plate

705007785

$28.00

110

Tuflok Plastic Rivet

293150230

$1.21

120

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

130

Panel Nut M6 X 1.0

250100208

$1.07

200

RH Front Skid Plate

705007786

$28.00

210

Tuflok Plastic Rivet

293150230

$1.21

220

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

230

Panel Nut M6 X 1.0

250100208

$1.07

300a

Carbon Black, LH Footrest Support | Includes 30 to 30b

705008955

$120.00

300a

Carbon Black, LH Footrest Support | Includes 30 to 30b

705008955

$120.00

300a

Orange Crush - LH Footrest Support | Model B-429 Liquid Titan

705013767

$120.00

300b

LH Frame Protector Outside

705009449

$9.00

300c

LH inner Protective Film

705014174

$7.00

300d

Tube Support | Includes 150 to 150a

705008950

$23.00

300e

Washer

506152582

$4.42

300f

Hex. Cap Screw Full Thread M10 X 20

250000719

$6.00

300g

LH Slider Outside | Includes 160 to 160b

705007798

$85.00

300h

Spacer Bushing

705008166

$6.00

300i

Pivot Pin | Includes 220 to 220

705013628

$18.00

300j

Black, LH Slider Clamp | Includes 305 to 305b

705013117

$40.00

300k

Socket Head Screw M8 X 25

250000830

$2.00

300l

Back Plate

705008553

$25.00

300m

Socket Head Screw M8 X 25

250000830

$2.00

300n

Carbon Black, LH Footpeg | Includes 10 to 10b

705008663

$51.00

300o

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$38.00

300p

Allen Plastite Screw #12

250000099

$2.31

300q

Rubber Stopper

708000759

$3.61

300r

Socket Head Screw M8 X 25

250000830

$2.00

300t

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

300u

Hex. Flange Elastic Nut M6

233261466

$1.66

300v

Carbon Black, LH Rear Footrest Support | Includes 80 to 80b

705009401

$390.00

300v

Carbon Black, LH Rear Footrest Support | Includes 80 to 80b

705009401

$390.00

300v

Carbon Black, LH Rear Footrest Support | Includes 80 to 80b

705009401

$390.00

300w

Spacer Bushing

705008166

$6.00

300x

Pivot Pin | Includes 220 to 220

705013628

$18.00

300y

Rubber Bumper

293830005

$5.33

300z

Pivot Cap | Includes 540 to 540b

705010203

$28.00

300aa

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

300ab

Carbon Black, LH Footpeg | Includes 10 to 10b

705008663

$51.00

300ac

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$38.00

300ad

Allen Plastite Screw #12

250000099

$2.31

300ae

Rubber Stopper

708000759

$3.61

300af

Socket Head Screw M8 X 25

250000830

$2.00

300ag

LH Fairing Support

705008961

$16.00

300ah

Black, Flat Washer 6 mm

234061670

$1.00

300ai

Hex. Flange Screw M6 X 12

210261250

$1.56

300aj

Panel Nut M6 X 1.0

250100198

$1.73

300ak

Gear Shift Lever | SM6

707001699

$46.00

300al

Adjustment Rod

707000455

$30.00

300am

End Clutch Pedal

707000456

$9.00

300an

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.60

300ao

Bearing

705600458

$7.03

300ap

Washer

503192496

$0.75

300aq

Washer

503183800

$3.20

300ar

Elastic Locking Nut M10

233601466

$1.74

300as

Hex. Cap Screw M10 X 60

207006056

$6.18

300at

Shifter Lever Rocker | SM6

707001573

$63.00

300au

Linkage Rod | SM6

504152819

$54.00

300av

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

300aw

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

300ax

Shifter Arm

707000926

$43.00

300ay

Bearing

705600458

$7.03

300az

Bushing

705600541

$15.00

300ba

O-Ring

293300191

$1.00

300bb

Washer

503183800

$3.20

300bc

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.31

300bd

Shifter Linkage Kit (295.9 mm) | SM6

219400627

Unavailable

300be

Flange Screw M6 X 26

250000714

$4.00

300bf

Hex. Flange Elastic Nut M6

233261466

$1.66

300bg

Quick-Attach Bracket | SM6

707001753

$11.00

300bh

Push Nut

250100178

$0.58

300bi

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.60

310

Spacer

705008219

$13.00

320

Hex. Flange Screw M6 X 60

250000778

$3.61

330

Hex. Flange Elastic Nut M6

233261466

$1.66

340

Washer M6

250200029

$1.83

350

Pivot Cap

705010202

$23.00

360

Socket Head Screw

205505560

$7.00

370

Hex Screw Washer Head M8 X 20

207582054

$2.61

400a

Carbon Black, RH Footrest Support | Includes 40 to 40b

705008954

$120.00

400a

Carbon Black, RH Footrest Support | Includes 40 to 40b

705008954

$120.00

400a

Carbon Black - RH Footrest Support | Model B-429 Liquid Titan

705013769

$120.00

400b

RH Outer Protective Film

705014177

$7.00

400c

RH Inner Protective Film

705014175

$7.00

400d

Tube Support | Includes 150 to 150a

705008950

$23.00

400e

Washer

506152582

$4.42

400f

Hex. Cap Screw Full Thread M10 X 20

250000719

$6.00

400g

RH Slider Outside | Includes 170 to 170b

705008158

$85.00

400h

Spacer Bushing

705008166

$6.00

400i

Pivot Pin | Includes 220 to 220

705013628

$18.00

400j

Black, RH Slider Clamp | Includes 307 to 307b

705013120

$40.00

400k

Socket Head Screw M8 X 25

250000830

$2.00

400l

Back Plate

705008553

$25.00

400m

Socket Head Screw M8 X 25

250000830

$2.00

400n

Carbon Black, RH Footpeg | Includes 20 to 20b

705008160

$51.00

400o

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$38.00

400p

Allen Plastite Screw #12

250000099

$2.31

400q

Rubber Stopper

708000759

$3.61

400r

Socket Head Screw M8 X 25

250000830

$2.00

400u

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

400v

Hex. Flange Elastic Nut M6

233261466

$1.66

400x

Carbon Black, RH Rear Footrest Support | Includes 70 to 70b

705009402

$410.00

400x

Carbon Black, RH Rear Footrest Support | Includes 70 to 70b

705009402

$410.00

400x

Carbon Black, RH Rear Footrest Support | Includes 70 to 70b

705009402

$410.00

400y

Spacer Bushing

705008166

$6.00

400z

Pivot Pin | Includes 220 to 220

705013628

$18.00

400aa

Rubber Bumper

293830005

$5.33

400ab

Pivot Cap | Includes 540 to 540b

705010203

$28.00

400ac

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

400ad

Carbon Black, RH Footpeg | Includes 20 to 20b

705008160

$51.00

400ae

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$38.00

400af

Allen Plastite Screw #12

250000099

$2.31

400ag

Rubber Stopper

708000759

$3.61

400ah

Socket Head Screw M8 X 25

250000830

$2.00

400ai

RH Fairing Support

705008962

$16.00

400aj

Black, Flat Washer 6 mm

234061670

$1.00

400ak

Hex. Flange Screw M6 X 12

210261250

$1.56

400al

Panel Nut M6 X 1.0

250100198

$1.73

400am

Brake Pedal | Includes 800 to 800a3

705601419

$105.00

400an

Rubber Pad

705004933

$21.00

400ao

Hex. Flange Screw M6 X 12

210261250

$1.56

400ap

Bearing

705600458

$7.03

400aq

Washer

503192496

$0.75

400ar

Washer

503183800

$3.20

400as

Elastic Locking Nut M10

233601466

$1.74

400at

Hex. Cap Screw M10 X 60

207006056

$6.18

400au

Master Cylinder Rocker | Includes 900 to 900d

705601308

$50.00

400av

Bearing

705600458

$7.03

400aw

Bushing

705600541

$15.00

400ax

O-Ring

293300191

$1.00

400ay

Washer

503183800

$3.20

400az

Locking Tab | Includes 940 to 940b

705601229

$26.00

400ba

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

400bb

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.31

400bc

Brake Master Cylinder Stopper

705601375

$12.00

400bd

Screw M4 X 16

250000725

$2.87

400be

Brake Linkage Kit (410.7 mm) | Includes 1000 to 1000a2a

219400628

$21.00

400bf

Flange Screw M6 X 26

250000714

$4.00

400bg

Hex. Flange Elastic Nut M6

233261466

$1.66

400bh

Quick-Attach Bracket

705601350

$13.00

400bi

Push Nut

250100178

$0.58

400bj

Light Switch Bracket | Includes 1100 to 1100b

705601342

$12.00

400bk

Torx Head Screw M6 X 16

250000717

$1.74

400bl

Switch Deflector

705601343

$14.00

400bm

Torx Head Screw M6 X 16

250000717

$1.74

400bn

ROD END - Call your local BRP dealership

705601506

$15.00

400bo

Piston Rod

705600468

$23.00

400bp

Hex. Nut M8

232081414

$0.60

400bq

Hexagonal Head Cap Screw M8 X 35

207283544

$3.00

400br

Hex. Elastic Stop Nut M8

232581414

$0.47

410

Spacer

705008219

$13.00

420

Hex. Flange Screw M6 X 60

250000778

$3.61

430

Hex. Flange Elastic Nut M6

233261466

$1.66

440

Washer M6

250200029

$1.83

450

Pivot Cap

705010202

$23.00

460

Socket Head Screw

205505560

$7.00

470

Hex Screw Washer Head M8 X 20

207582054

$2.61
