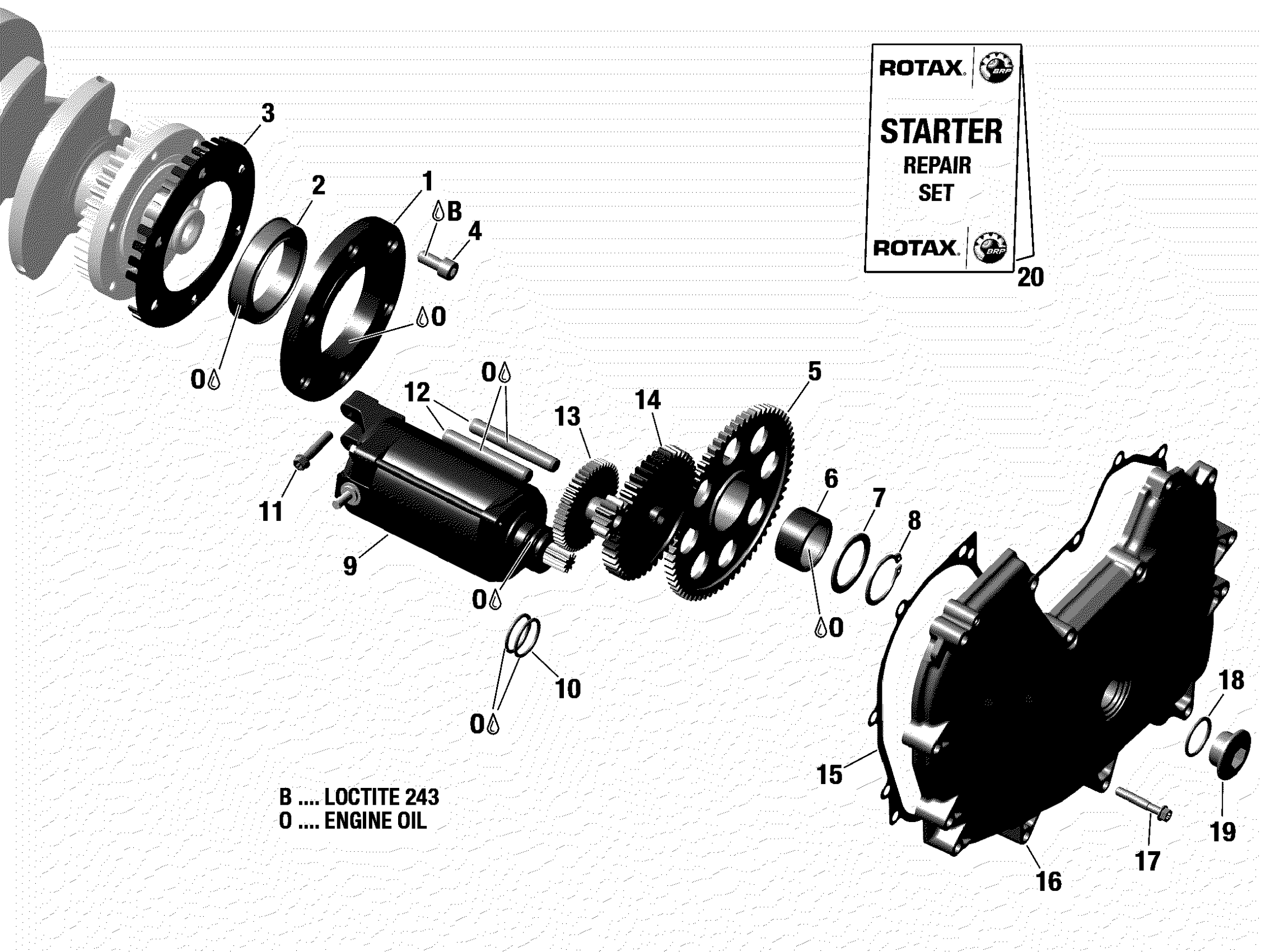

Can-Am F3 S SM6, 2019 Electric Starter Diagram

#

Description
Price

1

Sprag Clutch Housing

420458012

$120.00

2

Sprag Clutch

420659119

$180.00

3

Trigger Wheel

420266773

$18.00

4

Socket Head Screw M8 X1 8

420641509

$3.00

5>6

Gear 66T | Includes 4 to 5,

420435336

$155.00

7

Thrust Washer

420427111

$4.00

8

Circlip

420945720

$3.00

9>10

Starter Ass'y | Includes 8 to 9

420893830

$223.57

10

O-Ring

420250145

$7.87

11

Torx Flange Screw M6 X 30

420440647

$1.97

12

Pin Cylindrical

420229472

$14.00

13

Double Gear

420435382

$180.00

14

Gear 44T

420435391

$80.00

15

Gasket

420450010

$19.00

16

Valve Train Cover

420210296

$169.00

17

Torx Flange Screw M6 X 35

420440274

$0.83

18

O-Ring

420430783

$2.00

19

Plug Screw M24 X 1.5

420241635

$6.00

20

Carbon Brush Set

420881145

$193.82
