Description

Price

10>10k

Carbon Black, Muffler Exhaust Sec. | Includes 10 to 10p

219800442

$954.00

10a

Carbon Black, Heat Shield | Includes 10b to 10b2

707601381

$76.00

10b

Panel Nut M6 X 1.0

250100198

$1.73

10c

Black, Flat Washer 6 mm

234061670

$1.00

10d

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

10e

Carbon Black, Heat Shield | Includes 10g to 10g2

707601054

$27.00

10f

Panel Nut M6 X 1.0

250100198

$1.73

10g

Black, Flat Washer 6 mm

234061670

$1.00

10h

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

10i

Carbon Black, RH Rear Muffler Trim | Includes 10m to 10m2

707601995

$82.00

10j

Black, Flat Washer 6 mm

234061670

$1.00

10k

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

15>15c

Carbon Black, Muffler Exhaust Sec. | Includes 10 to 10d

707602475

$954.00

15a

Carbon Black, Heat Shield | Includes 10b to 10b2

707601560

$82.00

15b

Carbon Black Muffler End Cap | Includes 10c to 10c2

707601561

$82.00

15c

Rivet-Pop 5/32

293150219

$1.00

20

Primary Exhaust Muffler | North America Man. Date Aug 1rst 2016 And Up

707602866

$1,197.00

30

Exhaust Tuned Pipe | Includes 30 to 30d

707601605

$339.00

40

Exhaust Manifold | Includes 40 to 40j

707601922

$770.00

50

Hex. Flange Nut M8

233081416

$1.63

60

Exhaust Seal

707601985

$8.00

70

Exhaust Clamp

707600980

$23.05

80

Exhaust Clamp

707600980

$23.05

90

Exhaust Gasket

514054174

$27.66

150

Socket Screw M10 X 60

244006060

$3.32

160

Washer 10 mm

506150000

$2.63

170

Hex. Flange Nut M10

233101600

$4.39

220

Spring

415107100

$6.20

230

Hex Flange Screw M10 X 20

207502044

$4.28

240>240a

Muffler Support | Includes 240 to 240c

707601550

$46.00

240a

Rubber Bushing

293830167

$15.00

245>245d

Support | Includes 240 to 240d2

707601940

$76.00

245a

Muffler Support | Includes 240a to 240a2

707601683

$68.00

245b

Anti-Vibration Rubber

293830162

$13.00

245c

Black Bushing | Includes 240d to 240d2

707601657

$18.00

245d

Bushing

707601589

$16.00

270

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

350

Anti-Vibration Rubber

707600702

$8.34

360

Front Bracket | Includes 360 to 360b1a

707600661

$13.00

370

Hex. Flange Screw M6 X 12

210261250

$1.56

460

Oxygen Sensor

707600872

$115.67

470

Tie-Rap 180 mm

414115200

$0.09

500

Heat Shield interior

707603641

$54.00

510

Heat Shield Exterior

707603642

$54.00

520

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

530

Flat Washer M6, Stainless

234062600

$0.64

540

Panel Nut M6 X 1.0

250100198

$1.73

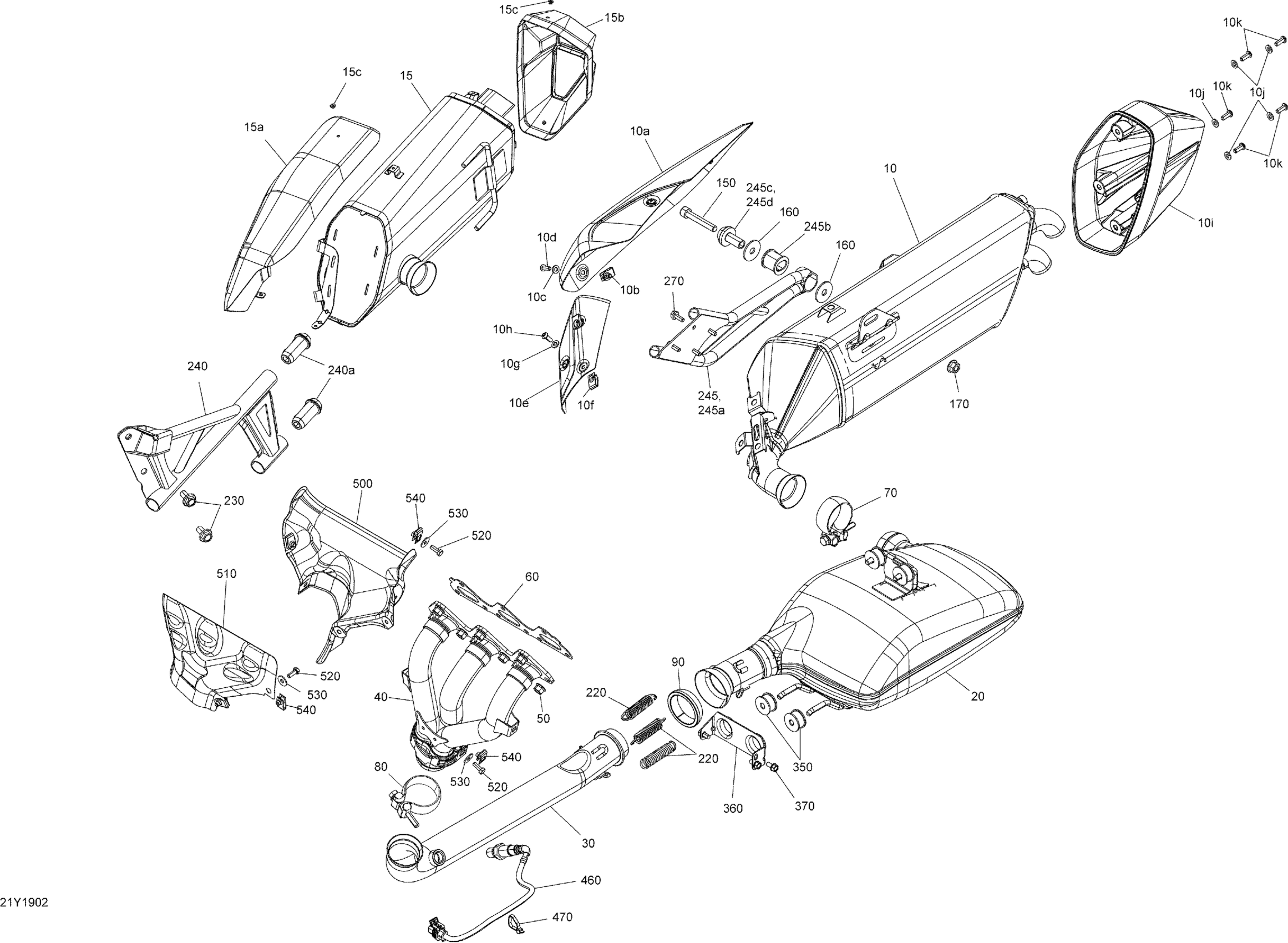

Can-Am F3 S SM6, 2019 Exhaust System Diagram

Carbon Black, Muffler Exhaust Sec. | Includes 10 to 10p

Carbon Black, Heat Shield | Includes 10b to 10b2

Panel Nut M6 X 1.0

Black, Flat Washer 6 mm

Black, Socket Screw, M6 X 16 S.Grip

Carbon Black, Heat Shield | Includes 10g to 10g2

Panel Nut M6 X 1.0

Black, Flat Washer 6 mm

Black, Socket Screw, M6 X 16 S.Grip

Carbon Black, RH Rear Muffler Trim | Includes 10m to 10m2

Black, Flat Washer 6 mm

Black, Socket Screw, M6 X 16 S.Grip

Carbon Black, Muffler Exhaust Sec. | Includes 10 to 10d

Carbon Black, Heat Shield | Includes 10b to 10b2

Carbon Black Muffler End Cap | Includes 10c to 10c2

Rivet-Pop 5/32

Primary Exhaust Muffler | North America Man. Date Aug 1rst 2016 And Up

Exhaust Tuned Pipe | Includes 30 to 30d

Exhaust Manifold | Includes 40 to 40j

Hex. Flange Nut M8

Exhaust Seal

Exhaust Clamp

Exhaust Clamp

Exhaust Gasket

Socket Screw M10 X 60

Washer 10 mm

Hex. Flange Nut M10

Spring

Hex Flange Screw M10 X 20

Muffler Support | Includes 240 to 240c

Rubber Bushing

Support | Includes 240 to 240d2

Muffler Support | Includes 240a to 240a2

Anti-Vibration Rubber

Black Bushing | Includes 240d to 240d2

Bushing

Hex. Flange Screw M6 X 16, Scotch Grip

Anti-Vibration Rubber

Front Bracket | Includes 360 to 360b1a

Hex. Flange Screw M6 X 12

Oxygen Sensor

Tie-Rap 180 mm

Heat Shield interior

Heat Shield Exterior

Hex. Screw M6 X 16, Scotch Grip

Flat Washer M6, Stainless

Panel Nut M6 X 1.0
