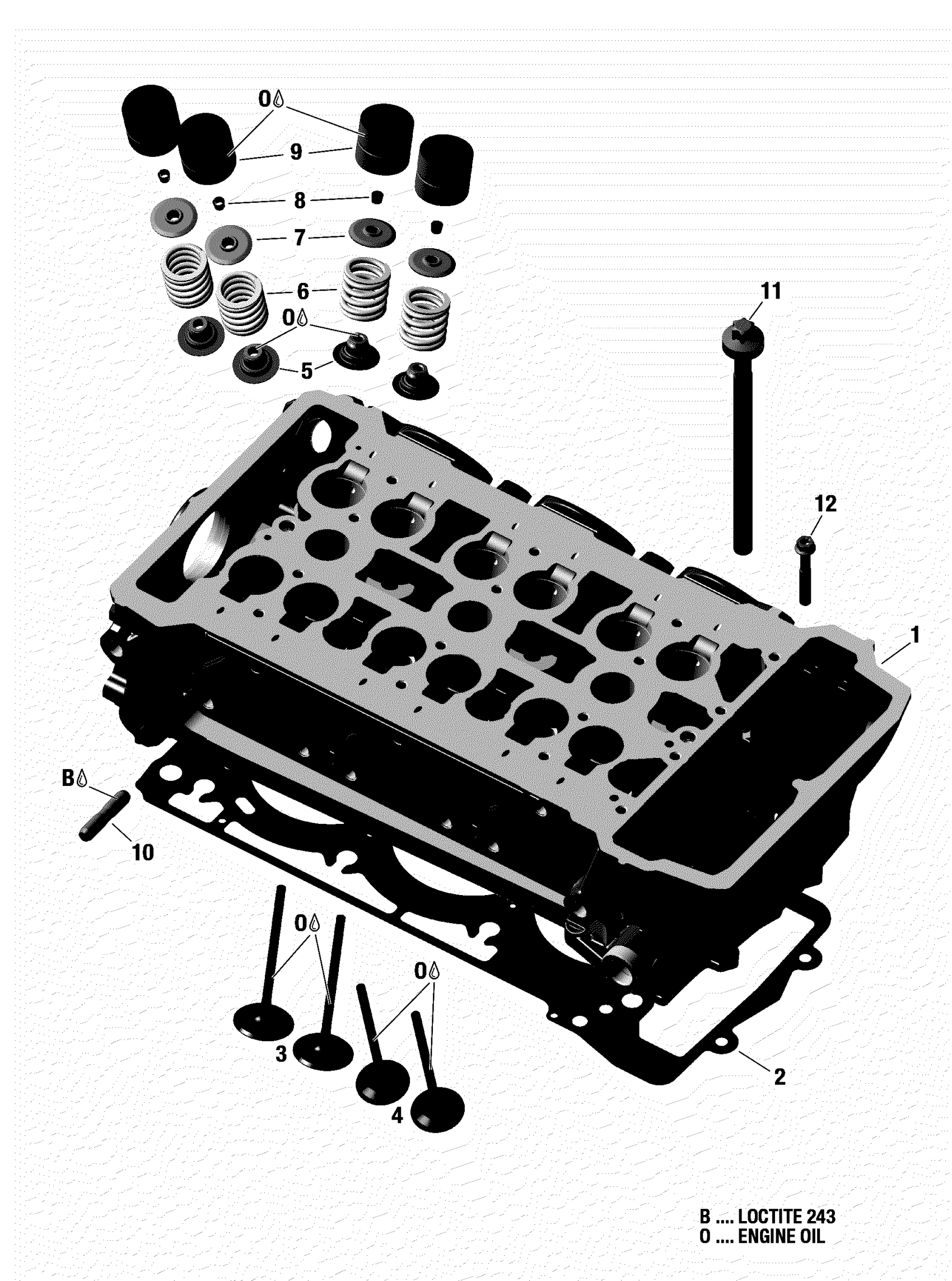

Can-Am F3 S SM6, 2019 Cylinder Head Diagram

#

Description
Price

1

Cylinder Head

420623978

$916.00

2

Cylinder Head Gasket

420431951

$36.00

3

Intake Valve, 32 mm

420253210

$40.00

4

Exhaust Valve, 28.5 mm

420253220

$90.00

5

Valve Stem Seal

420431671

$4.41

6

Valve Spring

420939540

$6.18

7

Valve Spring Retainer

420855150

$3.61

8

Cotter Valve

420254630

$0.83

9

Valve Lifter Bucket

420855165

$38.32

10

Stud

420840718

$11.06

11

Torx Flange Screw M10 X 150

420441285

$12.00

12

Torx Flange Screw M6 X 40

420440282

$3.11
