Description

Price

2e

Torx Truss Screw M6 X 16

250000721

$1.39

6y

Cable Support

710004279

$4.00

8a

Battery, 12 Volts, 21 Amperes

410922962

$160.52

8a1

Battery Bolt Kit

250000282

$2.95

8b

Latch

520000528

$6.60

8c

Battery Holder

710002893

$17.00

8d

Starter Relay

710007777

$46.89

8e

Hex. Flange Screw M6 X 12

210261250

$1.56

8f

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

219800502

$1,210.00

8f1

Shock Damper

710003279

$10.14

8h

VCM Harness Protector

710003996

$3.00

8j

PBM Module Ass'y

710005887

$480.00

8k

Torx Screw M4 X 16

250000750

$1.37

8m

Elastic Stop Nut M4

232541484

$0.61

8n

Flat Washer 4 mm

234041480

$0.61

8p

Horn

710004940

$29.00

8q

Horn Support

710005769

$16.00

8r

Torx Truss M8 X 25

250000874

$1.74

8s

Hex. Flange Elastic Nut M8

233281414

$1.14

8t

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

8u1

Reverse Cable

710002889

$32.00

8u2

Actuator

710011269

$65.00

8u3

Elastic Stop Nut M4

232541414

$0.48

8u4

Socket Head Screw M4 X 40

205444056

$1.74

8u5

Pop Rivet 5/32

390403000

$0.34

8u6

Reverse Actuator Support

710005642

$31.00

8u7

Clip

270000141

$8.33

8u8

Pop Rivet 3/16"

390402400

$0.25

8v

Hex. Flange Screw M6 X 12

210261250

$1.56

8w

Actuator Motor

710007256

$228.00

8x

Hex. Flange Screw M6 X 20

207662054

$0.83

8y

Elastic Stop Nut M6

232561434

$1.55

8z

Brake Pressure Switch Ass'y

710001379

$41.51

8aa

Pop Rivet

293150150

$2.31

8ab

Yaw Rate Sensor

710005658

$166.12

8ac

Hex. Flange Screw M6 X 16

210261650

$1.22

1150

Dess Module

710004916

$180.00

1153

Wire Support

710004308

$13.00

1154

Hex. Forming Screw M6 X 10

210261050

$1.42

1155

Hexagonal Head Screw

210262050

$1.74

1156

Flat Washer 6 mm

234062410

$0.64

1160

Rubber Bumper

293830091

$8.29

1300

CCK Module Ass'y | Includes 1300 to 1300d

710006467

$195.00

1300a

Hex. Screw Forming M4 X 30

250000955

$1.00

1300b

Push Nut | Not shown

211100002

$0.83

1300c

Flat Washer, Emhart

213200016

$0.68

1300d

Flat Washer 5 mm, Stainless

234052400

$2.34

2000

Starter Cable Ass'y

710006399

$85.00

2005

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

2020

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

2021

Serrated Lock Washer 8 mm

234481608

$1.09

2160

Stainless Flat Washer M6

234061600

$0.25

2161

Elastic Stop Nut M6

232561434

$1.55

2170

Lock Washer Helical M6

234161601

$0.92

2171

Hex. Nut M6

232061600

$0.91

2250

Pos Cable

710005026

$85.00

2260

Hex. Nut M6

232061600

$0.91

2261

Lock Washer Helical M6

234161601

$0.92

2270

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2271

Hex. Nut M6

232061600

$0.91

2272

Lock Washer Helical M6

234161601

$0.92

2280

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2281

Hex. Nut M6

232061600

$0.91

2282

Lock Washer Helical M6

234161601

$0.92

4010

Diagnostic Harness

710006986

$26.00

4042

Lock

710001222

$1.68

4044

Pop Rivet 3/16"

390402400

$0.25

4045

Clip

270000141

$8.33

4052

Tuflok Plastic Rivet

293150230

$1.21

4065

Support Cable

293750083

$2.75

4070

Rubber Pad

709000401

$9.98

4074

Support

710004613

$8.00

4075

Connector Plug

710004901

$13.00

4076

Connector Plug

710004901

$13.00

4077

Wire Support

710004669

$7.00

4090

Harness Holder

710004794

$3.00

4095

Tuflok Plastic Rivet

293150230

$1.21

4200

Harness Holder

710004931

$2.00

4210

Tuflock Phillips Plastic Screw

414745900

$1.30

4220

Tie Rap

710004424

$6.00

4225

Tuflock Phillips Plastic Screw

414745900

$1.30

4230

Tie Rap

710004424

$6.00

4235

Tuflock Phillips Plastic Screw

414745900

$1.30

4360

Fuse Holder Support

710004472

$9.29

4361

Hex. Flange Screw M6 X 12

210261250

$1.56

4380

Cable Support

710004299

$4.00

4800

Tail Harness

710006428

$18.00

4810

Connector With Cap

710004456

$12.00

5001

Lock Washer 8 mm, Stainless

234181601

$0.46

5002

Hex. Nut M8

232081414

$0.60

5400

Fuel Tank Cable

710006436

$19.00

5405

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.57

5410

Lock Washer Serrated M6

250200041

$0.92

5415

Serrated Lock Washer 8 mm

234481608

$1.09

5420

Washer

250200111

$1.74

6001

Wiring Harness Adaptor

710007190

$21.00

8604

Connector Holder

710002033

$3.22

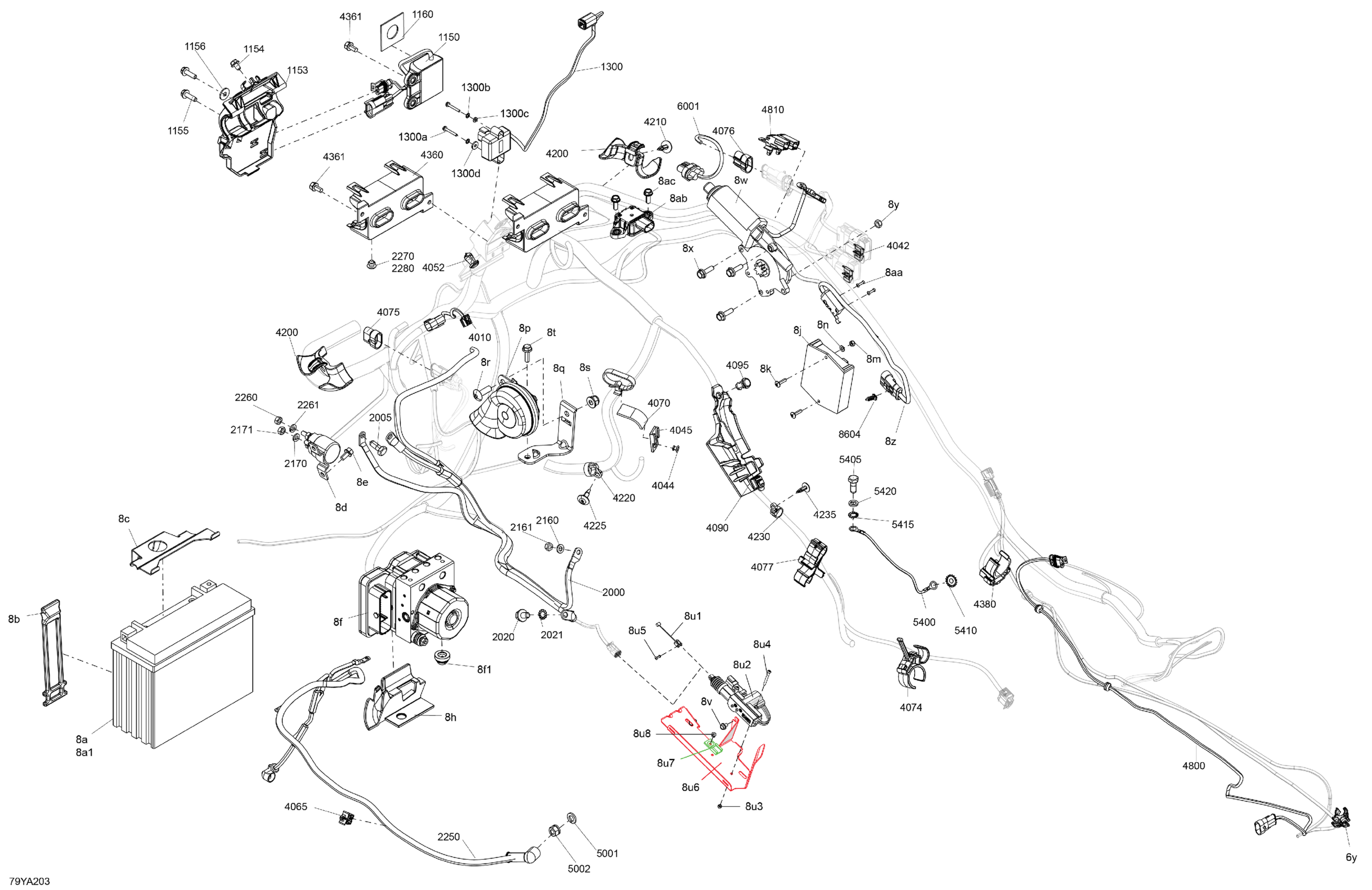

Can-Am F3 S SE6 - Monolith Black Satin, 2021 Electric - System Diagram
