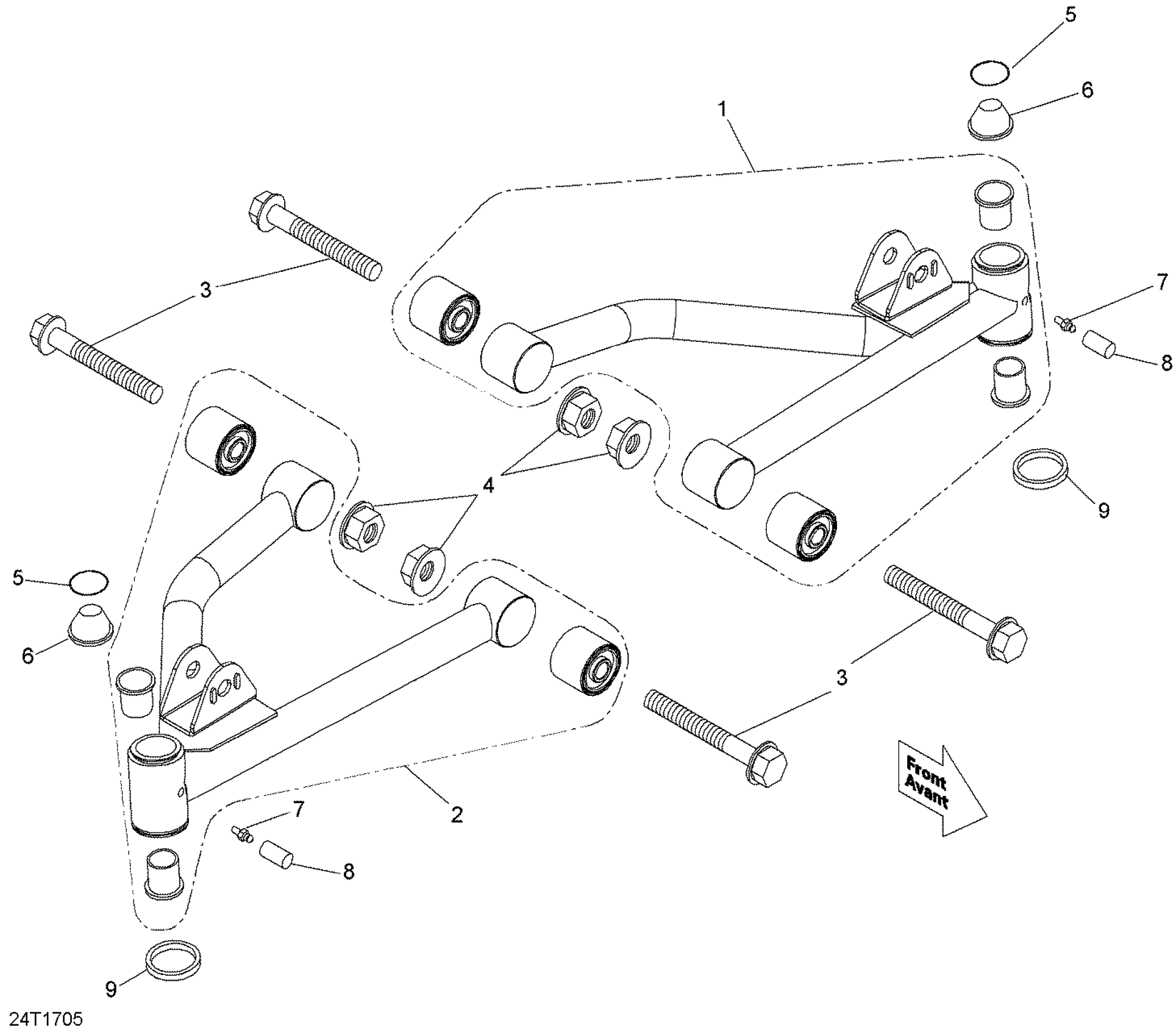

Can-Am DS 90, 2021 Front Suspension Arm Diagram

#

Description
Price

1

LH Suspension Arm

V51449DGF060

$115.35

2

RH Suspension Arm

V51459DGF050

$115.35

3

Hex. Flange Bolt

V9600010048020LL

$3.98

4

Elastic Flange Nut M10

232501416

$1.25

5

Circlip

V95011CEK000

$6.92

6

Rubber Protector

V52247DGF010LL

$5.97

7

Grease Valve

V43350MAA000LL

$4.60

8

Grease Valve Cap

V52225MAA000

$7.37

9

Seal Cover

V52245MAA000

$7.69
