Description

Price

1

Gasket 0.9 | Included in gasket kit

420831074

$20.74

1

Gasket 0.8 | Included in gasket kit

420831073

$23.05

1

Gasket 0.7 | Included in gasket kit

420831072

$19.20

1

Gasket 0.6 | Included in gasket kit

420831071

$18.43

1

Gasket 0.5 | Included in gasket kit

420831070

$16.89

2

Cylinder Block Plasma

420413524

$929.99

3

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.66

4

Square Ring | Included in gasket kit

420430044

$5.69

5

O-Ring Cylinder | Included in gasket kit

420831825

$5.52

6

Cylinder Head

420413429

$274.99

7

Fittin 90D

420924802

$3.23

8

Collar Hex Screw M8 X 68.5

420640959

$6.09

9

Hose Nipple

420924724

$12.29

10

Hex. Screw M8 X 35

207083544

$0.92

11

Temperature Sensor This part replaces 420664508.

420664509

$142.28

12

Aluminum Sealing Ring

420250016

$4.41

13

Spark Plug NGK ILKR8Q7 This part replaces 420297938.

415130651

$17.52

14

Gasket | Included in gasket kit

420430487

$8.23

15

Exhaust Manifold

420873040

$269.97

16

Washer

420427290

$2.06

17

Allen Screw M8 X 22

420841051

$2.06

18

Locking Tie 175 X 4 MM

420651817

$0.86

19

Engine Gasket Set

420894374

$243.82

20

Cylinder Gasket Set

420894262

$276.12

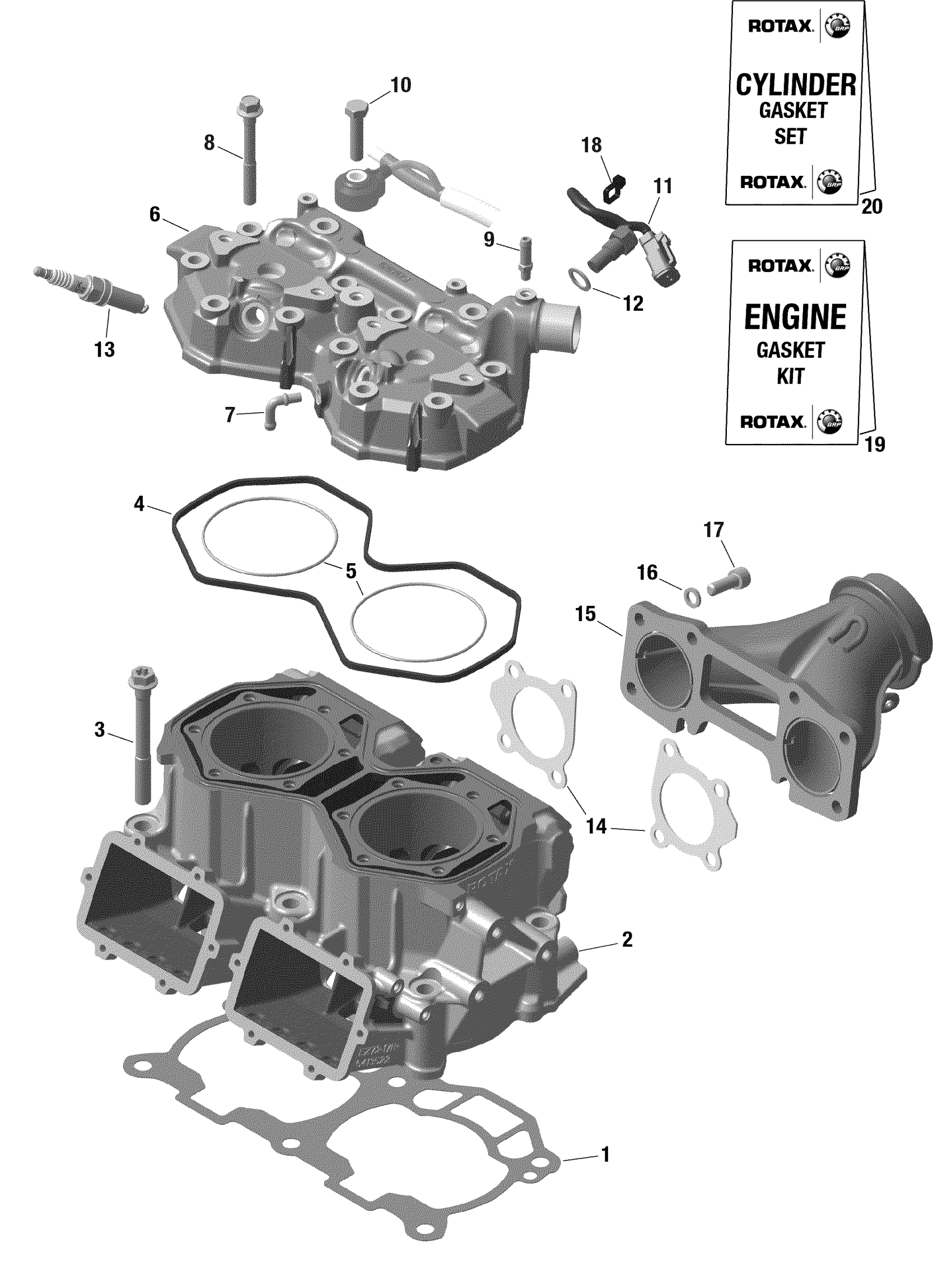

Ski-Doo BACKCOUNTRY 600R E-TEC - STD - 2022 Rotax - Cylinder And Cylinder Head Diagram
