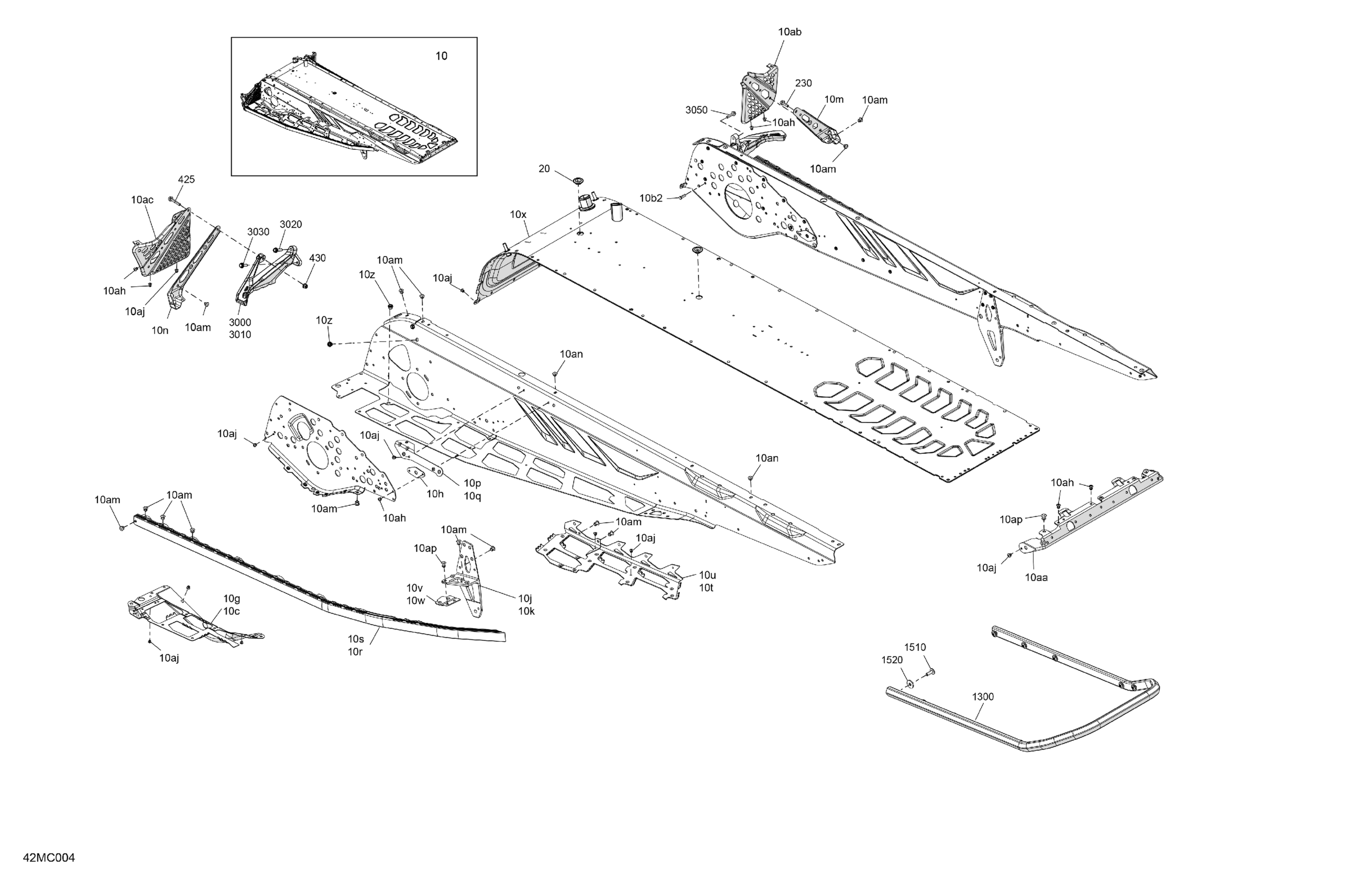

Ski-Doo BACKCOUNTRY 600R E-TEC - STD - Europe, 2023 Frame - System - Rear Section Diagram

Description

Price

Catalyst Gray, Chassis Tunnel Module 146" | Includes 10 to 10ap

518334201

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$1.92

10c

RH Footrest Reinforcement

518332578

$81.51

10g

LH Footrest Reinforcement

518332577

$81.51

10h

Reinforcement Plate

518326647

$4.34

10j

LH Suspension Bracket

518328467

$43.05

10k

RH Rear Suspension Support

518334391

$96.12

10m

Stirrup Reinforcement

518334507

$18.43

10n

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10p

LH Under Chassis Reinforcement

518331744

$16.12

10q

RH Under Chassis Reinforcement

518331745

$16.89

10r

RH Roller

518328451

$180.74

10s

LH Roller

518328452

$180.74

10t

RH Tunnel Liner

518329646

$33.05

10u

LH Tunnel Liner

518329647

$33.05

10v

LH Reinforcement Plate

518329088

$3.08

10w

RH Reinforcement Plate

518329089

$4.22

10x

Radiator Tunnel 146

518334489

$692.28

10z

Clinch Nut M6 Hexsert

605636003

$4.12

10aa

Rear Cap

518328990

$20.74

10ab

RH Footrest

518333006

$38.43

10ac

LH Footrest

518333007

$38.43

10ah

Avex Rivet

390909100

$0.29

10aj

Avex Rivet

390909200

$0.29

10am

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10an

Ornit Rivet 6,5 X 14.5

293150266

$1.94

10ap

Rivet Ornit 6,5 X 16.5

293150267

$1.94

Black, Plug

293730052

$6.37

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 x 35

207663546

$0.95

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1300

Rear Bumper 146

518329553

$165.35

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11

3000

Black Toe-hold

518330358

$23.05

3010

Toe Hold

518329134

$16.12

3020

Hex. Flange Screw M6 X 25

250000793

$1.74

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

3050

Hex Screw Forming M6 x 25

250001124

$1.64
