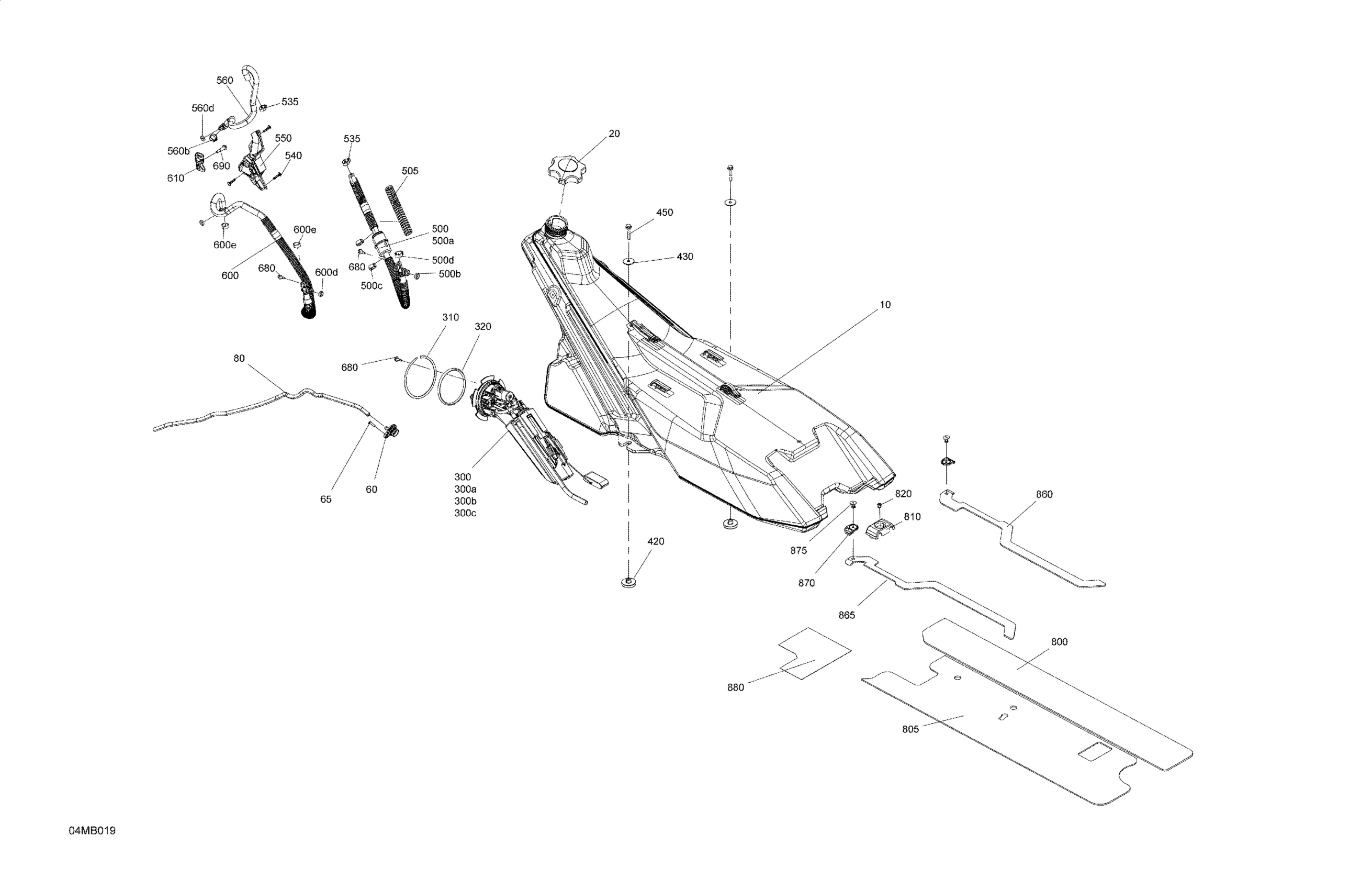

Ski-Doo BACKCOUNTRY 600R E-TEC - STD - Europe, 2022 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank

513034078

$324.58

20

Fuel Tank Cap

513033943

$25.35

60

Check Valve

513033849

Unavailable

65

Truss Torx Screw K40 X 16

250000918

Unavailable

80

Polyurethane Hose 10000Mm Long

219704410

Unavailable

300

Fuel Pump Ass'y | Includes 300 to 300b

861805526

Unavailable

300a

Fuel Filter

415131068

Unavailable

300b

Fuel Level Sensor

415130726

Unavailable

300c

Canister

415130507

Unavailable

310

Circlip

513033798

$12.83

320

O-Ring

513033862

Unavailable

420

Bushing

513033807

$7.48

430

Washer | Not Shown

503193995

Unavailable

450

Hex. Flange Screw M6 X 35

207663544

$0.74

500

Hose Ass'y | Includes 500 to 500d

513034023

$119.97

500a

Fuel Filter

513034047

Unavailable

500b

O-Ring

513033668

Unavailable

500c

Oetiker Clamp

293650125

$2.69

500d

Crimp Clamp

293650053

Unavailable

505

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

535

Crimp Clamp, 15.3-706R

293650047

Unavailable

540

Torx Screw Truss Head K50X20 T20

250000760

Unavailable

550

Hose Guide

513034051

$7.43

560

Fuel Tank Hose Ass'y | Includes 560 to 560d

513034055

$59.97

560b

Crimp Clamp

293650053

Unavailable

560d

O-Ring

513033668

Unavailable

600

Hose Ass'y | Includes 600 to 600e

513034063

$73.82

600d

O-Ring

513033668

Unavailable

600e

Crimp Clamp

293650053

Unavailable

610

Bracket

513033903

$1.26

680

Hex. Flange Screw M5 X 16

250000911

Unavailable

690

Hex. Flange Screw M5 X 28 S.Grip

250001018

$1.07

800

Insulated Foam

513033913

Unavailable

805

Insulated Foam

513033914

$15.35

810

Tank Guide

513033826

$2.12

820

Pop Rivet 3/16"

390402200

$0.26

860

Foam

513033915

Unavailable

865

Foam

513033916

Unavailable

870

Retainer Plate

513033917

$0.54

875

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

880

Fuel Tank Protection Decal

516009818

$9.94
