Description

Price

10

Black, Frame Ass'y

715007515

$2,589.99

30

Front Cage Ass'y

715008404

$649.99

35

Rear Cage Profile Ass'y

715006532

$649.99

50

Deep Black, Front Bumper

705207588

$519.97

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

52

Hex. Elastic Flange Nut M8

233281416

$1.25

70

Module Support

705209388

$52.28

71

Hex. Flange Screw M8 X 20

207682044

$0.92

72

Hex. Elastic Flange Nut M8

233281416

$1.25

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

80

Support

705208740

$40.74

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

82

Hex. Elastic Flange Nut M8

233281416

$1.25

83

Hex. Flange Screw M8 X 20

207682044

$0.92

90

Steering Column Support | Includes 90 to 90d

705209190

$34.58

90a

Insert Half Hex Body M6 x 1.0

250100199

$2.54

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

110

Deep Black, RH Protector Tube

705204592

$46.12

120

Support

705208742

$28.43

121

Hex. Elastic Flange Nut M8

233281416

$1.25

122

Hex. Flange Screw M8 X 20

207682044

$0.92

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

145

Insert Half Hex Body M6 x 1.0

250100199

$2.54

150

Heat Shield

705014849

$2.75

210

Anchorage Strap F Ass'y | Includes 210 to 210c

705208973

$44.58

210a

Pin

605456518

$3.92

210b

Socket Screw M10 x 30 | XT

205003044

$2.61

210c

Hex. Flange Elastic Nut M10

233201414

$1.26

220

Licence Plate Support

705014656

$106.89

221

Hex. Flange Screw M6 X 16

207661644

$0.61

222

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

230

Drawbar Ass'y | Includes 230 to 230c

705208230

$156.89

230a

Elastic Flange Nut M20

250100104

$9.71

230b

Hitch Pin

705204490

$54.58

230c

Hitch Approval Decal

704906897

$16.89

500

Rear Chassis Reinforcement

705207753

$31.51

510

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

600

Voltage Regulator Support

710007522

$16.12

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

610

Spacer

705208203

$17.66

615

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1510

Hex. Flange Screw M10 X 35

250000855

$1.46

1520

Hex. Flange Elastic Nut M10

233201436

$1.74

1530

Flange Elastic Nut M10

233201466

$2.63

1540

Hex. Flange Screw M10 X 6

207606046

$3.38

1550

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

1560

Offset Washer

705202223

$4.98

1570

Torx Truss M6X14

250000789

$4.41

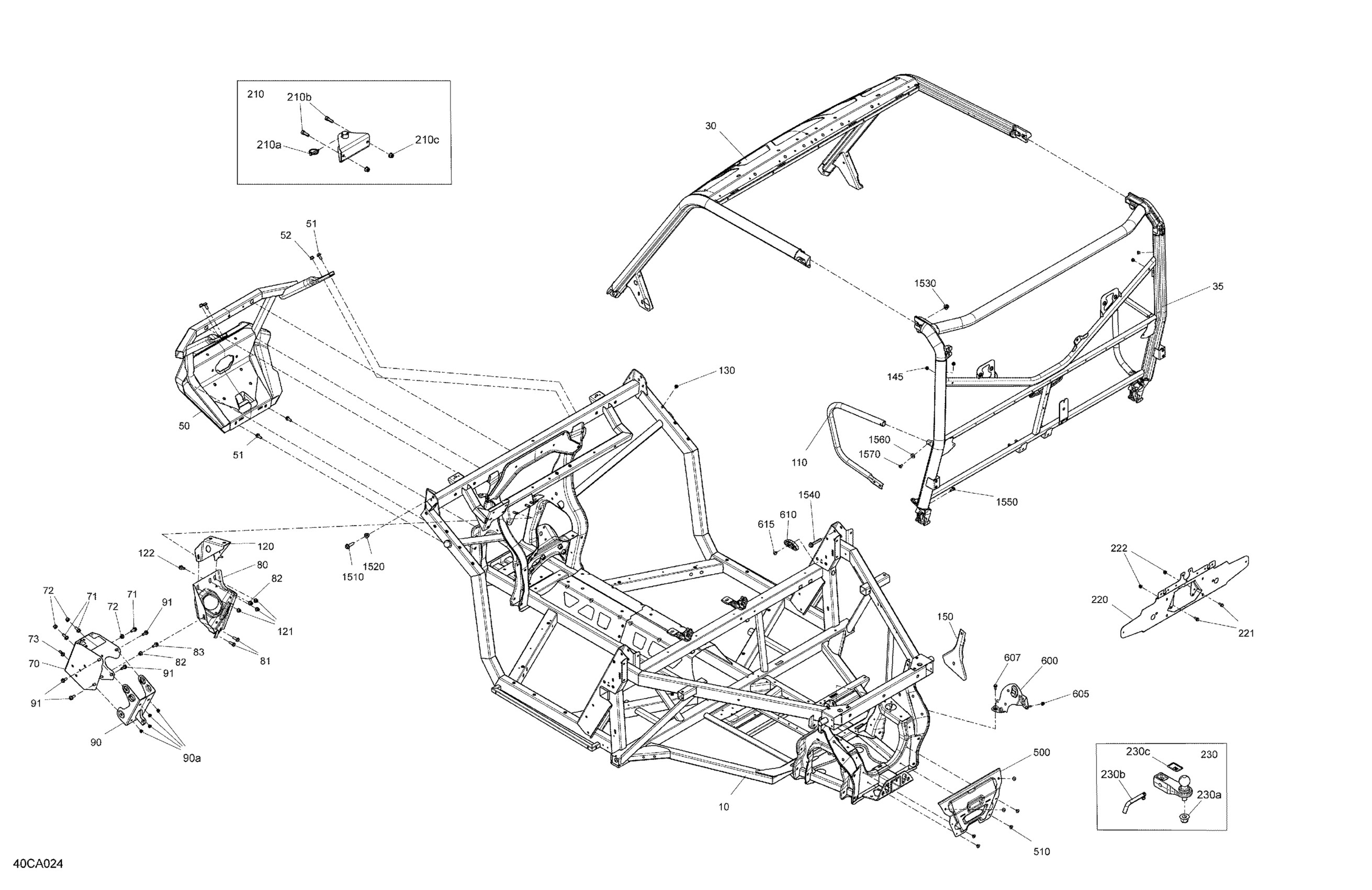

Can-Am Traxter T HD5 - BASE - T Regulation, 2021 Frame - System Diagram
