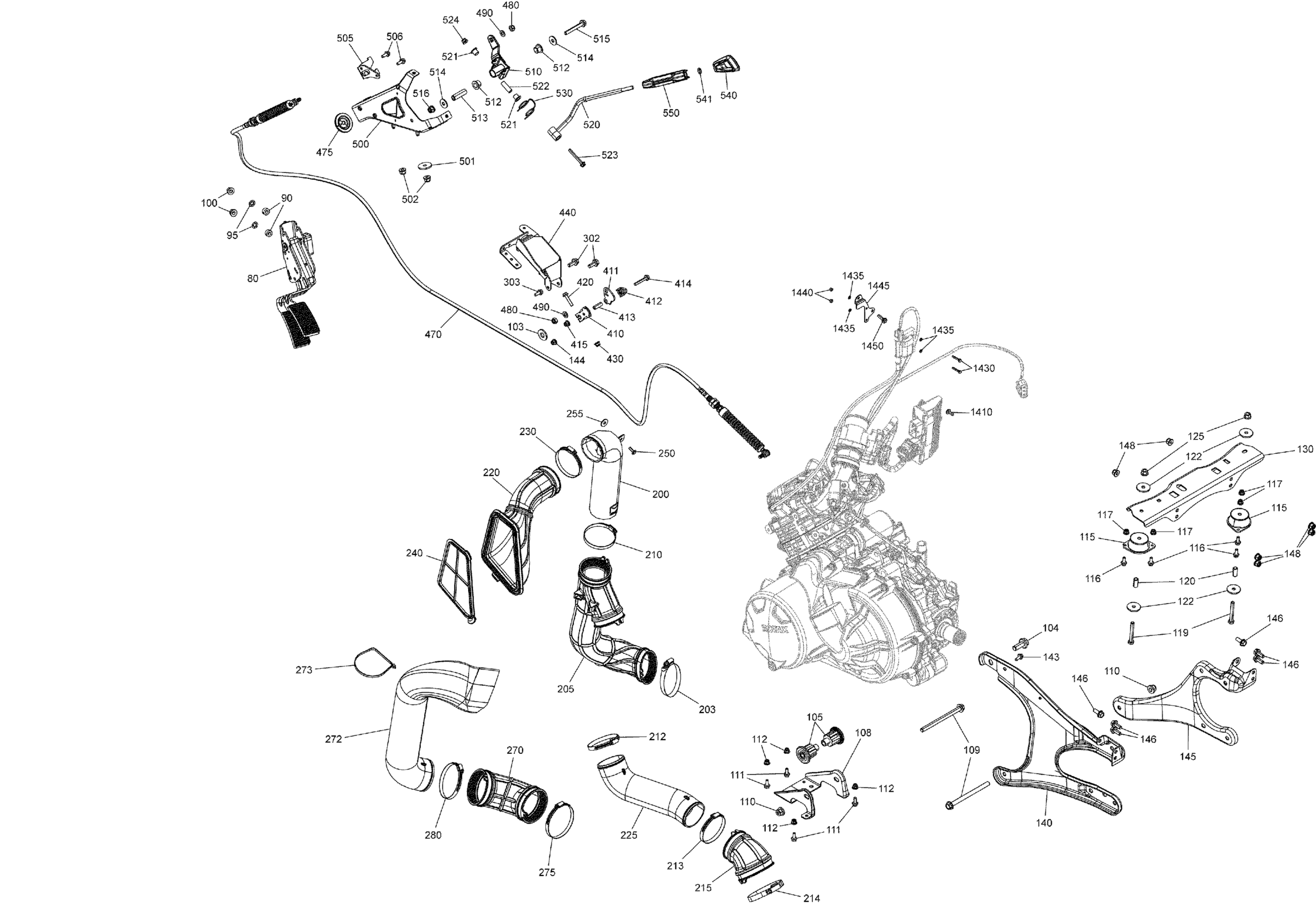

Can-Am Traxter HD5 - T1B Series, 2019 Engine - HD5 Diagram

#

Description
Price

12

Norma Spring Clamp

293650214

$15.35

80

Accelerator Pedal

707001599

$276.89

90

Bushing

707000848

$1.08

95

Push Nut

250100031

$6.86

100

Hex. Flange Nut M8

233081416

$1.63

103

Conical Spring Washer M12

250200005

$2.65

104

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.07

105

Vibration Damper

707001169

$41.51

108

Front Engine Bracket

707001989

$14.37

109

Hex. Flange Screw M10 X 135

230603546

$6.08

110

Hex. Flange Elastic Nut M10

233201436

$1.74

111

Hex. Flange Screw M6 X 16

207661644

$0.61

112

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

115

Rubber Mount

707002590

$59.97

116

Hex. Flange Screw M6 X 20

207662044

$1.66

117

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

119

Hex. Flange Screw, M8 X 65

207686544

$9.74

122

Flat Washer M8

250200158

$1.74

123

Flat Washer M8

250200180

$1.79

125

Hex. Flange Nut M8

233081416

$1.63

130

Rear Link Bracket

707002290

$32.28

140

Bracket -Engine

707001991

$25.35

142

Plate | Not Shown

707002146

$14.37

143

Hex. Flange Screw M6 X 16

207661644

$0.61

144

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

145

Bracket -Engine

707001992

$16.89

146

Hex. Flange Screw M8 X 20

207682046

$1.82

148

Hex. Elastic Flange Nut M8

233281416

$1.25

200a

Front CVT Cooling Duct

706600326

$59.97

203

Norma Clamp

293650091

$4.60

205

Flex Adapter

706600144

$23.05

210

Norma Clamp

293650091

$4.60

212

Norma Clamp

293650091

$4.60

213

Norma Clamp

293650091

$4.60

214

Norma Clamp

514052924

$10.58

215

Adap -Flex.

706600153

$10.98

220

Flexible Adaptor

706600084

$41.51

225

Duct

706600154

$16.89

230

Norma Clamp

293650091

$4.60

240

CVT Filter

706600156

Unavailable

250

Torx Screw Truss Head K50X20 T20

250000760

$1.74

255

Washer M5

250200025

$0.61

270

Adap -Flex.

706600145

$23.05

272

Duct

706600155

$32.28

273

Tie Wrap 368 mm

293750008

$0.85

275

Norma Clamp

514052924

$10.58

280

Norma Clamp

514052924

$10.58

302

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

303

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

410

Lever

707000503

$36.89

411

Pivot Plate

707001988

Unavailable

412

Spring

707000310

$9.37

413

Bushing

293900079

$8.49

414

Hex. Flange Screw M6 X 40

207664044

$2.18

415

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

420

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

440

Cable Support

707001986

$15.22

470

Shifting Cable

707002227

$69.20

475

Grommet

293720109

$8.05

480

Hex. Elastic Stop Nut M8

232581414

$0.47

490

Flat Washer 10 mm

234001410

$0.98

495

Stainless Flat Washer, 10 mm

250200105

$1.74

500

Shifter Braket

707002003

$39.97

501

Flat Washer M8

250200158

$1.74

502

Hex. Flange Elastic Nut M8

233281414

$1.14

505

Cable Support

707002038

$15.22

506

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

510

Lower Shifter Arm

707002268

$15.22

512

Venturi Bushing

293900001

$6.14

513

Bushing

707003445

$10.62

514

Flat Washer 8 mm

234082410

$1.11

515

Hex. Flange Screw M8 x 60

207686044

$2.56

516

Hex. Flange Elastic Nut M8

233281414

$1.14

520

Welded Arm

707002230

$23.05

521

Flanged Bushing

707000869

$2.20

522

Bushing

707001376

$4.22

523

Hex. Flange Screw M6 X 50

207665044

$3.38

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

530

Lever Arm Spring

707000750

$2.75

540

Lever Trim

707003211

$7.95

541

Hex. Jam Nut M8

232180491

$6.18

550

Shifting Arm Cover

707001899

$12.31

1410

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

1430

Hex. Screw M4 X 25

207142544

$1.63

1435

Flat Washer 4 mm

234040600

$0.46

1440

Elastic Stop Nut M4

232541414

$0.48

1445

Ignition Coil Bracket

707002024

$10.77

1450

Hex. Flange Screw M6 X 20

207662044

$1.66
