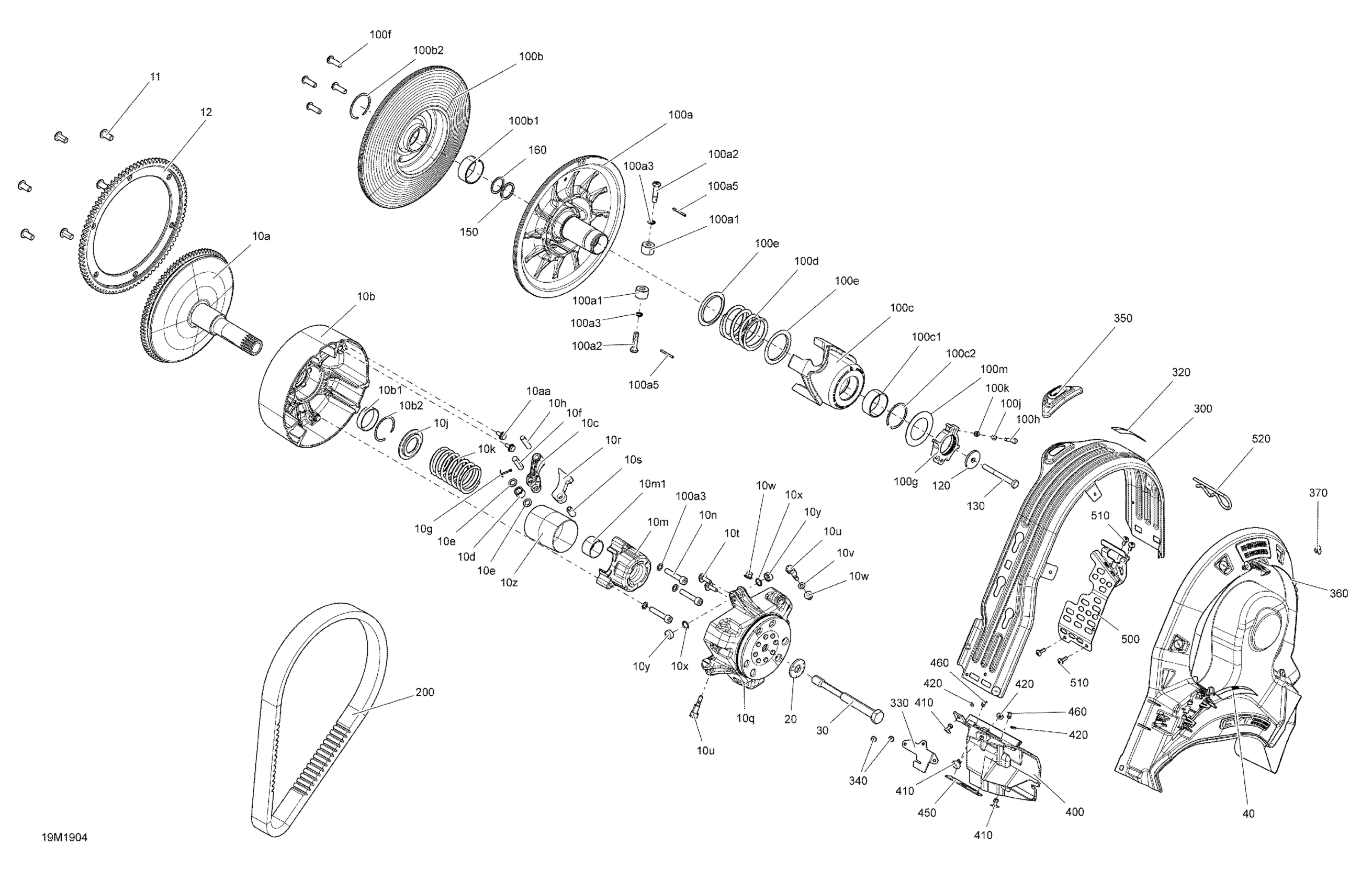

Ski-Doo SUMMIT 600 CARB, 2019 Pulley Diagram

#

Description
Price

10a

Fixed Flange Ass'y

417222937

$226.12

10b

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

10b1

Bushing

417222758

$20.74

10b2

Circlip

293370037

$3.02

10c

Lever | Includes 10f to 10g

417222671

$32.28

10d

Roller

417222947

$19.97

10e

Stopper Washer

417004302

$15.99

10f

Pin

417004308

Unavailable

10g

Cotter Pin

250400060

$1.60

10h

Lever Axle

417223164

$4.25

10j

Spring Seat

417222312

$8.28

10k

Spring (Blue/Pink)

414916300

Unavailable

10m

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

10m1

Bushing

417009204

$16.12

10n

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

10p

Lock Washer 8 mm

250200009

Unavailable

10q

Governor Cup Ass'y

417223669

$456.89

10r

Ramp 417

417222552

Unavailable

10s

Spring Pin M10 X 22

250400050

$2.38

10t

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

10u

Calibration Screw

417223501

$27.66

10v

Washer

417005600

$3.86

10w

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

10x

O-Ring

732401030

$0.95

10y

Slider Shoe

417222992

Unavailable

280

Guard

417009205

$16.89

290

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

20

Conical Spring Washer M14

250200144

Unavailable

30

Drive Pulley Bolt

417120000

$63.82

40

Decal English

516005503

Unavailable

100a

Fixe Flange Ass'y | Includes 100a to 100f

417127392

$336.89

100a1

Pulley Roller

417127016

Unavailable

100a2

Pivot Stud

417127294

Unavailable

100a3

Lock Washer 8 mm

250200009

Unavailable

100a5

Spring Pin M3 X 30

250400063

$1.74

100b

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$147.66

100b1

Bushing ID 41mm OD 45mm X 19mm L

417127318

Unavailable

100b2

Circlip

293370049

Unavailable

100c

Cam Ass'y | Includes 100m to 100q

417127371

Unavailable

100c1

Bushing ID 41mm OD 45mm X 19mm L

417127318

Unavailable

100c2

Circlip

293370049

Unavailable

100d

Black, Return Spring

417127039

Unavailable

100e

Swivel Abutment

417127116

Unavailable

100f

Button Head Torx Screw M8 X 25 S.Gr

250000757

Unavailable

100g

Calibration Ass'y

415129604

Unavailable

100h

Socket Screw M5 X 25

250000981

Unavailable

100j

Flat Washer M5

234051410

Unavailable

100k

Elastic Stop Nut M5

232551414

Unavailable

100m

Washer

417127155

Unavailable

120

Strength Washer

517302322

$11.09

130

Hex. Cap Screw M8 X 75

207287544

$4.24

150

Spacer

417300252

$5.17

160

Spacer

417300265

$2.12

200

Drive Belt

417300586

$154.58

300

Belt Guard

417300357

$86.12

320

Safety Belt Guard Decal

516005509

Unavailable

330

Front Bracket

417300423

$5.17

340

Avex Rivet

390909200

Unavailable

350

Guide

417300381

$9.23

360

CVT Air Duct

417300439

Unavailable

370

Pop Rivet 3/16"

293150103

Unavailable

400

Front Support

417300422

Unavailable

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

420

Flat Washer

517225900

$0.17

450

Reinforcement Plate

417300421

$4.14

460

Avex Rivet

390909100

$0.29

500

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$29.20

510

Torx Screw M5 X 14

250000742

$1.20

520

Hair Pin

114045200

Unavailable
