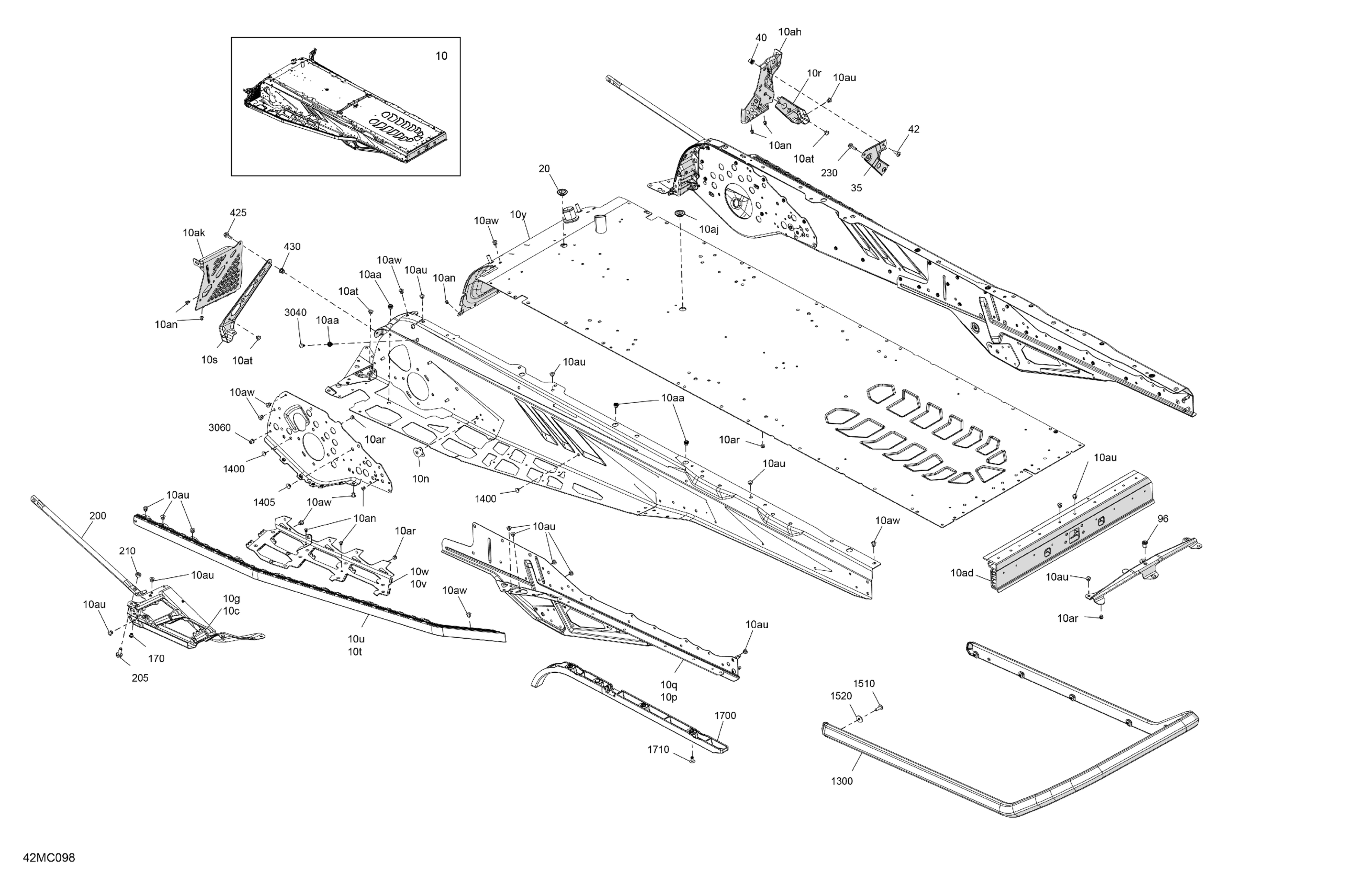

Ski-Doo SKANDIC SPORT 600 EFI - (AJPA) - 2023 Frame - System - Rear Section Diagram

#

Description
Price

10

Chassis Tunnel Module 154" | Includes 10 to 10aw

415130582

$3,299.97

10c

Deep Black, RH Footrest Reinforcement

518332803

$79.97

10g

Deep Black, LH Footrest Reinforcement

518332802

$16.89

10n

Front Suspension Arm Reinforcement

518335959

$3.85

10p

RH Rear Suspension Support

518333792

$102.28

10q

LH Rear Suspension Support

518333791

$102.28

10r

RH Footrest Reinforcement

518329789

$18.43

10s

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10t

RH Roller

518329648

$180.74

10u

LH Roller

518328452

$180.74

10v

RH Tunnel Liner

518329646

$33.05

10w

LH Tunnel Liner

518329647

$33.05

10y

Radiator Tunnel Ass'y 154

518332622

$693.05

10aa

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10ad

Rear Cap

518332315

$66.89

10ah

RH Footrest

518331822

$23.05

10aj

Black, Plug

293730052

$6.37

10ak

LH Footrest

518332978

$40.74

10an

Rivet Avibulb 3/16

293150203

$0.29

10ar

Henrob Rivet

293150245

$1.65

10at

Rivet Ornit 6,5 X 10.5

293150264

$1.94

10au

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10aw

Ornit Rivet 6,5 X 14.5

293150266

$1.94

20

Black, Plug

293730052

$6.37

35

RH Stirrup Reinforcement

518331727

$18.43

40

Insert

293450275

$9.89

42

Torx Head Screw M6 X 16

250000717

$1.74

96

Insert

293450275

$9.89

170

Insert M5 - 0.8

293450267

$4.22

200

Lateral Reinforcement

518332541

$18.43

205

Hex. Flange Screw M8 X 20

207682044

$0.92

210

Hex. Nut M8

232081414

$0.60

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1300

Rear Bumper | Includes 1300 to 1300c

518331043

$109.20

1400

Full Moon Dart 8 mm

293730041

$2.12

1405

Full Moon Dart 10 mm

293730059

$4.42

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11

1700

Front Protector

518329982

$17.66

1710

Pop Rivet 3/16”

293150108

$1.23

3040

Dart

293730079

$1.92

3060

Collar Huck Magna-Grip 6.4

293150149

$0.37
