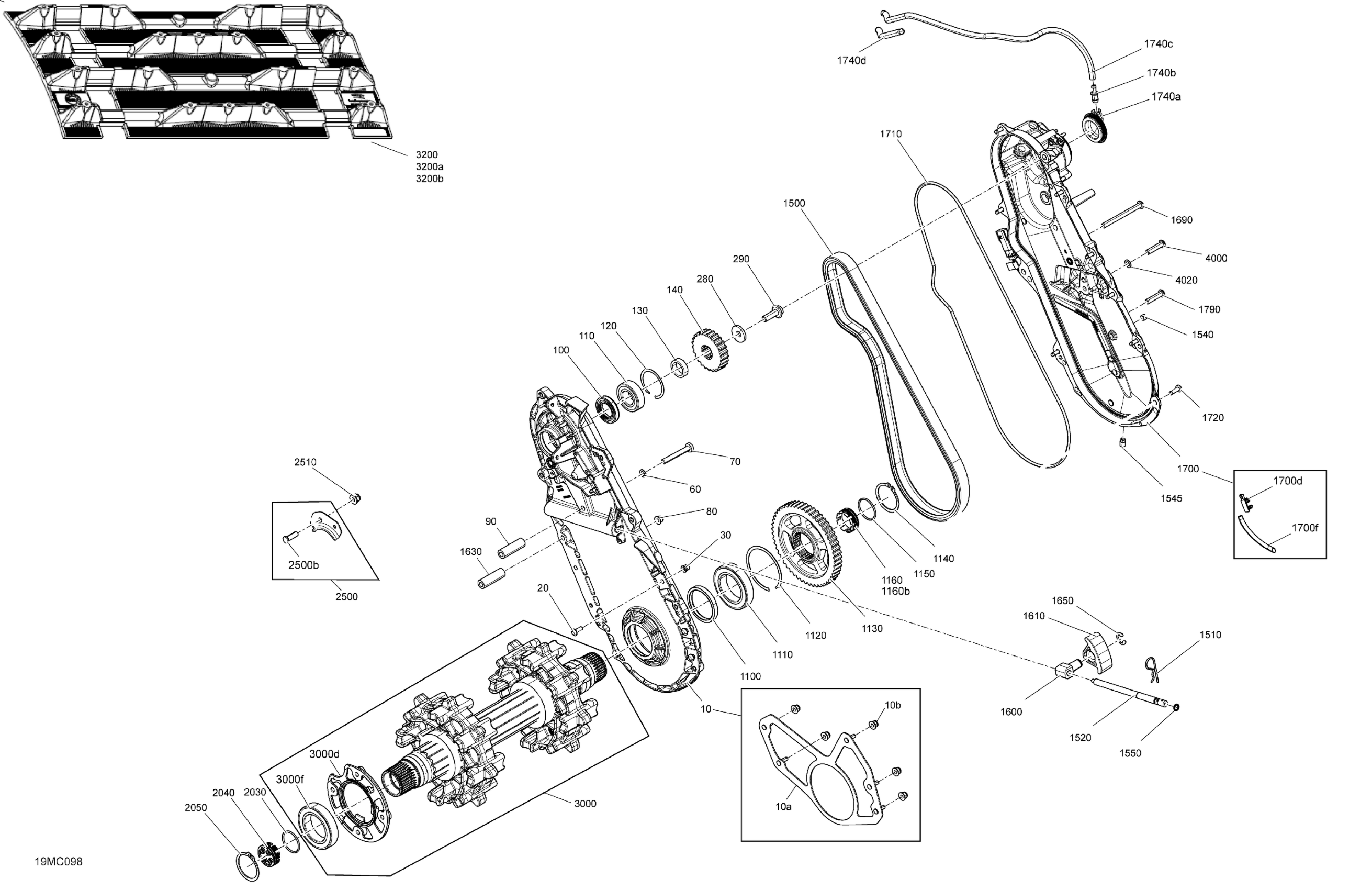

Ski-Doo SKANDIC SPORT 600 EFI - (AJPA) - 2023 Drive - System Diagram

#

Description
Price

10

Black, Chain Case Ass'y | Includes 10 to 10b

504154227

$95.49

10a

Plate Ass'y

504153560

$71.61

10b

Flange Elastic Nut M6

233261434

$4.15

20

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.64

30

Collar Huck Magna-Grip 6.4

293150149

$0.36

60

Washer

504082900

$2.51

70

Torx Screw Button Head M8 x 70

250001052

$4.00

80

Flange Elastic Nut M6

233261434

$4.15

90

Spacer

504153929

$3.27

100

Oil Seal

293200168

$13.24

110

Ball Bearing

293350153

$10.82

120

Circlip

504152576

$8.45

130

Shim

504152628

$8.15

140

Sprocket 19 Teeth

504153909

$99.22

280

Spring Washer M10

504152784

$6.07

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.82

1100

Oil Seal

293200159

$12.73

1110

Ball Bearing

293350059

$29.82

1120

Circlip

504152582

$8.45

1130

Sprocket 53 Teeth

504153998

$44.75

1140

Circlip

504152572

$6.07

1150

O-Ring

293300201

$0.96

1160

Magnetic Cap | Includes 150c to 150c2

504154019

$25.34

1160b

Cap

504154043

$2.03

1500

Drive Chain 116 Links

504153397

$216.39

1510

Hair Pin

414575600

$1.73

1520

Adjustment Screw

504153760

$23.10

1540

Hex. Countersunk Drain Plug

250500013

$6.58

1545

Hex. Countersunk Drain Plug

250500013

$6.58

1550

O-Ring

293300202

$0.96

1600

Chain Tensioner

504154577

$14.61

1610

Slider Chain

504153312

$65.64

1630

Spacer

504154305

$3.82

1650

Circlip

293370105

$2.00

1690

Hex. Flange Screw M8 X 85, Scotch Grip

207588544

$3.19

1700

Deep Black, Chain Case Cover Ass'y | Includes 1700 to 1700f

504154078

$174.60

1700d

Clip Connector

515178223

$1.87

1700f

Braided Sleeve

415130141

$54.45

1710

O-Ring

293300200

$11.18

1720

Hex. Flange Screw M6X20

250001153

$2.01

1740a

Cap

504152930

$6.07

1740b

Straight Pipe Fitting

293710180

$8.42

1740c

Polyurethane Hose 10000Mm Long

219704410

$52.96

1740d

Heat Shield

515179201

$3.13

1790

Hex. Flange Screw M6 X 35

250001015

$1.22

2030

O-Ring

293300201

$0.96

2040

Cap

504154043

$2.03

2050

Circlip

504152572

$6.07

2500

Bearing Housing Ass'y | Includes 2500 to 2500b

504153695

$17.88

2500b

Clinch Stud, M8 X 25

250300028

$4.15

2510

Hex. Flange Elastic Nut M8

233281414

$1.31

3000

Drive Axle Ass'y | Includes 3000 to 3000f

504154435

$352.96

3000d

Retaining Ring

504154417

$17.88

3000f

Ball Bearing

293350059

$29.82

3200

Track 20 X 154 X 1,25 | Includes 3200 to 3200b

504154705

$1,249.99

3200a

Track Guide | Track Width 16''

415129528

$3.03

3200b

Cleat

504152651

$7.97

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.91

4020

Washer

504082900

$2.51
