Description

Price

100a

LH Upper Frame

705208901

$145.00

100b

Dart Clip

293730080

$1.00

100c

Panel Nut M6 X 1.0

250100208

$1.07

100d

LH Holder (support)

705013415

$4.00

100f

Torx Truss PT K40 x 12

250001131

$1.74

100g

LH Upper Front Acoustic Foam

705013944

$4.00

100h

LH Upper Rear Acoustic Foam

705013946

$19.00

100j

RH Upper Frame

705208902

$145.00

100k

Dart Clip

293730080

$1.00

100m

Panel Nut M6 X 1.0

250100208

$1.07

100n

RH Holder (support)

705013416

$4.00

100p

Torx Truss PT K40 x 12

250001131

$1.74

100q

RH Upper Front Acoustic Foam

705013945

$5.00

100r

RH Upper Rear Acoustic Foam

705013947

$19.00

100s

Hex. Flange Screw M6 X 20

207662054

$0.83

100t

Hex. Flange Elastic Nut M6

233261466

$1.66

100u

Tank Trim

705016523

$215.00

100v

Tuflok Plastic Rivet

293150230

$1.21

100w

Connector Support

515179692

$1.63

100x

Storage Compartment Front

705205819

$110.00

100y

Neoprene Seal Joint

708200794

$16.00

100z

Push Latch

705007380

$63.00

100aa

Torx Truss PT K40 x 12

250001131

$1.74

100ab

Acoustic Foam, Storage Compartment

705013943

$4.00

100ac

Center Front Fairing

705013110

$21.00

100ad

Driver Seat

708002411

$250.00

100af

Rear Spoiler

705013202

$20.00

100ag

Torx Truss PT K40 x 12

250001131

$1.74

100ah

LH Side Cap

705013413

$16.00

100aj

Torx Truss PT K40 x 12

250001131

$1.74

100ak

RH Side Cap

705013414

$16.00

100am

Torx Truss PT K40 x 12

250001131

$1.74

100an

Large Shoulder Nut M6

705014119

$6.00

100ap

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

100aq

Torx Truss Screw M6 X 25

250000807

$1.74

100ar

Stainless Steel Flat Washer

234062670

$1.74

100as

Torx Truss Screw M6 X 16

250000721

$1.39

100at

Deep Black, Front Cover | Includes 100at to 100at2

705015113

$81.00

100at2

Decal Aesthetic Notice

704907056

Unavailable

100au

Fuel Door Filler Ass'y | Includes 100au to 100au3

705017593

$52.00

100au2

Fuel Door Filler

705017575

$52.00

100au3

Torx-Truss Screw K40 X 10

250001034

$0.81

100av

Upper Fairing

705017574

$39.00

710

Tuflok Plastic Rivet

293150230

$1.21

720

Torx-Truss Screw K40 X 10

250001034

$0.81

740

Pivot

705013475

$1.00

750

Torx Truss PT K40 x 12

250001131

$1.74

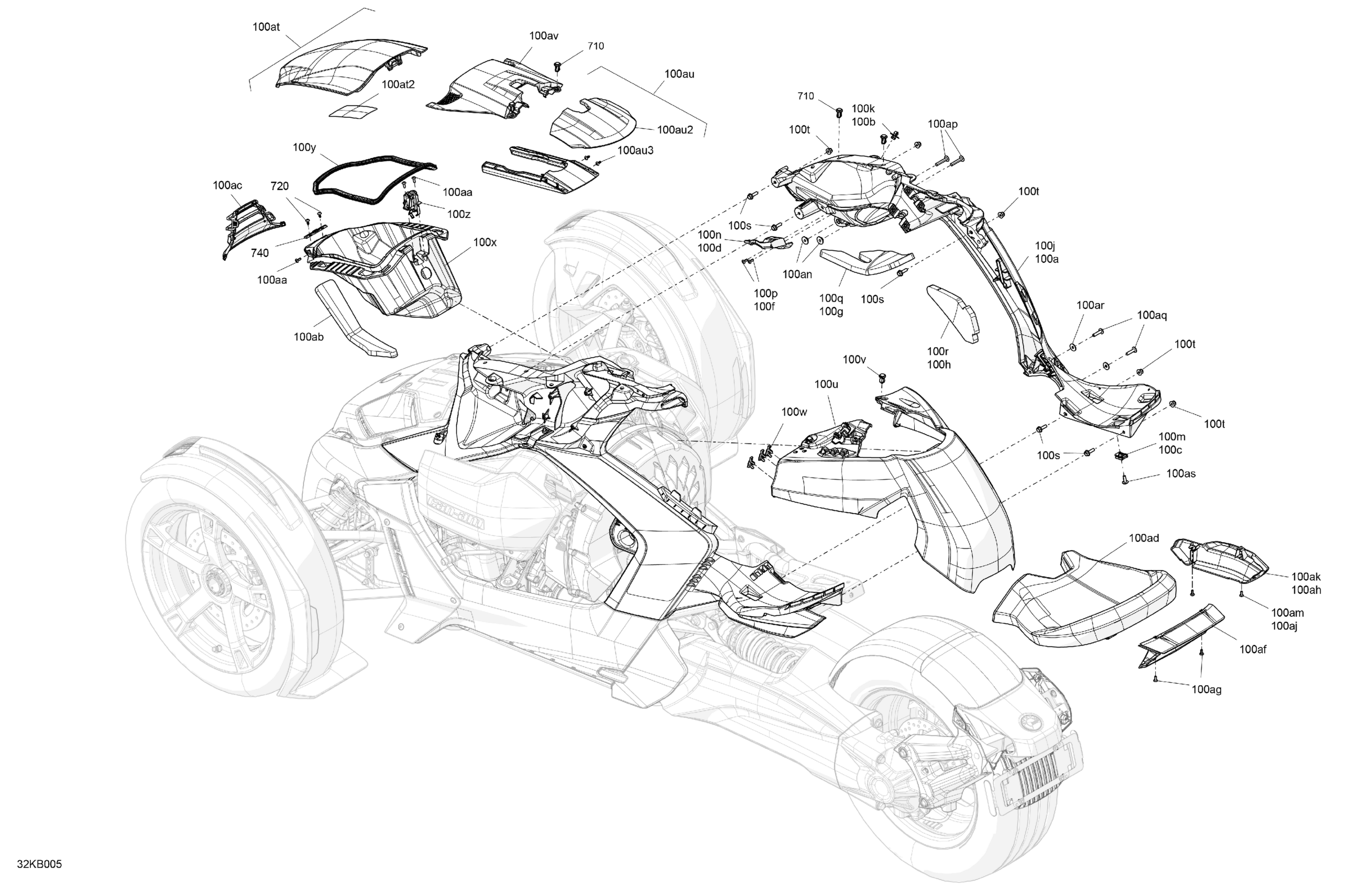

Can-Am RYKER STD 600 ACE - 2022 Body - Upper Section Diagram

Decal Aesthetic Notice
