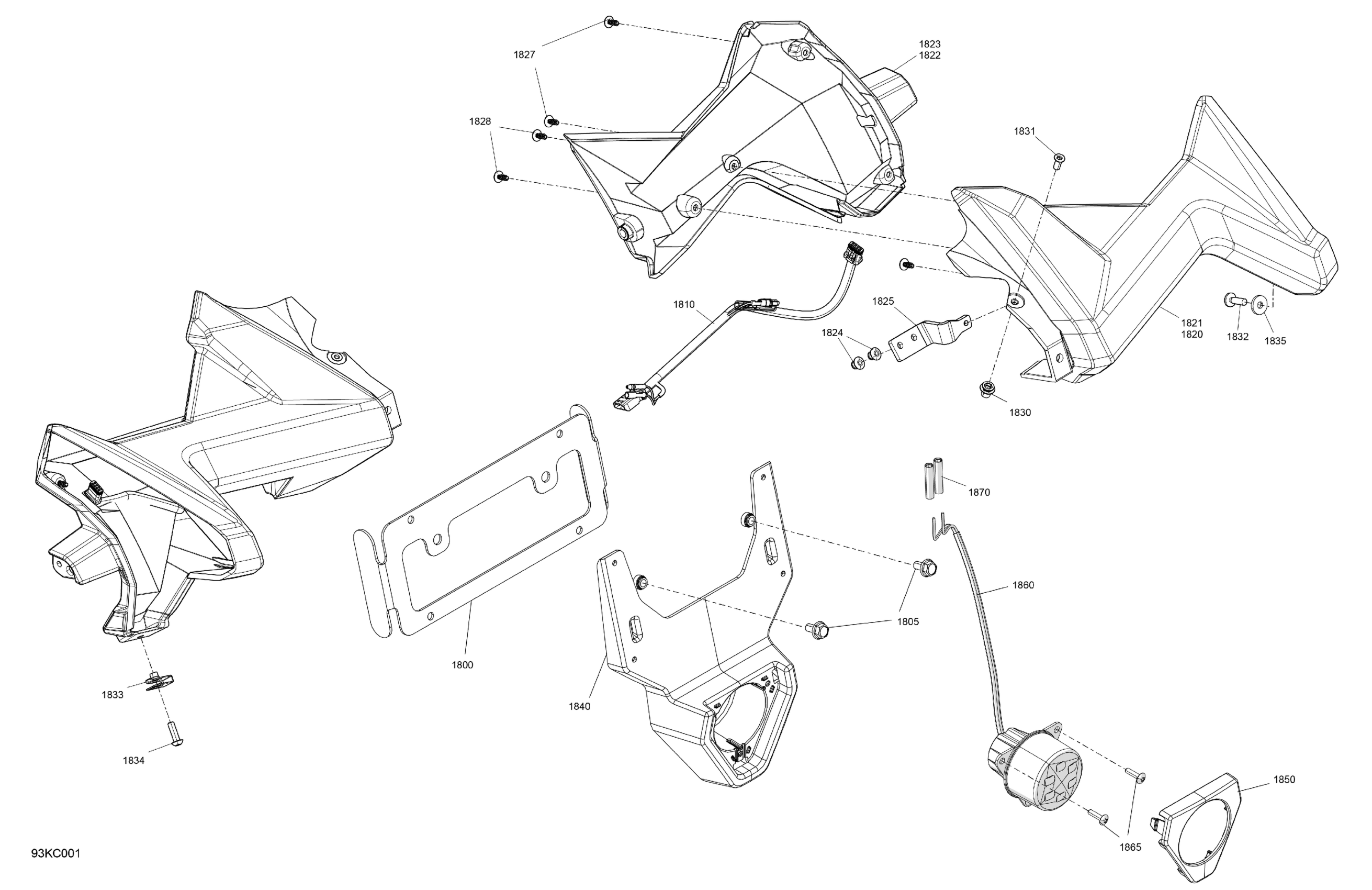

Can-Am RYKER 600 ACE, North America (F1PA), 2023 Miscellaneous - Taillight - Japan - Conformity Kit Diagram

Description

Price

Japan Mandatory PDI Kit | Not shown

219401139

$1,170.00

1800

Rear Licence Plate Support Ass'y

706004834

$65.00

1805

Hex. Flange Screw M6 X 12

207661254

Unavailable

1810

Taillight Wiring Harness

710006493

$19.00

1820

LH Rear Taillight Support

710008238

$91.00

1821

RH Taillight Support

710008239

$71.00

1822

LH Taillight Trim

710006342

$155.00

1823

RH Taillight Trim

710008241

Unavailable

1824

Rivet 3/16"

293150102

Unavailable

1825

RH Reinforcement

710006572

$52.00

1826

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

Unavailable

1827

Torx-Truss Screw K40 X 10

250001034

Unavailable

1828

Torx-Truss Pt K40 X 16

250000759

Unavailable

1830

Insert M5 - 0.8

293450267

Unavailable

1831

Phillips Screw M5 x 12

250000319

Unavailable

1832

Torx Screw K50 X 16

250000720

Unavailable

1833

Panel Nut M5 X 0.8

250100176

$4.00

1834

Torx Truss Screw M5 X 16, T25

250000578

Unavailable

1835

Flat Washer 5 mm, Stainless

234052400

Unavailable

1840

Support Back-up Light

710006547

$74.00

1850

Trim Back-up Light

710006564

$65.00

1860

Back-up Light

710006390

$291.00

1865

Torx-Truss Pt K40 X 16

250000759

Unavailable

1870

Solder Sleeve

710004915

$3.00
