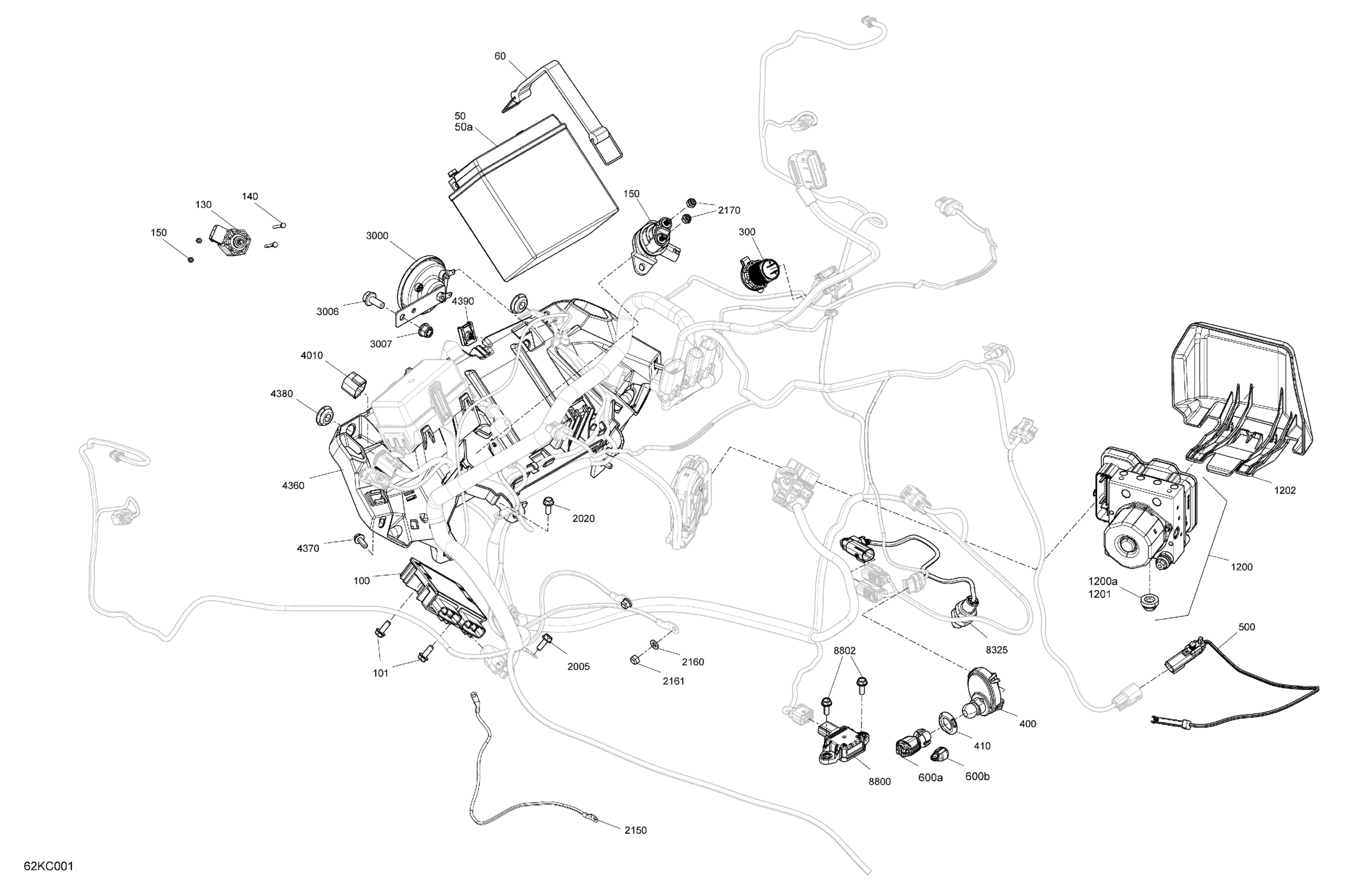

Can-Am RYKER 600 ACE, North America (F1PA), 2023 Electric - System Diagram

#

Description
Price

300

USB Outlet

219400510

Unavailable

400

Terminal DESS One Wire

515179305

$60.42

410

Specialized Nut

278004274

Unavailable

500

Passenger Footpeg Position Sensor

705601717

$30.00

600a

Grey, Can-Am DESS Key

710009109

$63.00

600b

Receptacle

705013894

$8.00

50

Battery 12 Amperes | Includes 50 to 50a

219800472

$105.92

50a

Battery Bolt Kit

219800541

$7.46

60

Holding Strap

293850112

Unavailable

100

Voltage Regulator

710006002

$175.00

101

Hex. Flange Screw M6 X 16

210261650

Unavailable

150

Starter Relay

278003012

Unavailable

1200

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

219800502

$1,210.00

1200a

Shock Damper

710003279

Unavailable

1201

Shock Damper

710003279

Unavailable

1202

VCM Module Protector

710005542

$8.00

2005

Hex. Flange Screw M6 X 16

210261640

Unavailable

2020

Hex. Flange Screw M6 X 16

210261640

Unavailable

2150

Starter Cable

710007463

$8.00

2160

Stainless Flat Washer M6

234061600

Unavailable

2161

Elastic Stop Nut M6

232561434

Unavailable

2170

Hex. Elastic Stop Nut M6

232561600

Unavailable

3000

Horn

710006157

$36.00

3006

Hex. Flange Screw M8 X 20

207682046

Unavailable

3007

Hex. Elastic Flange Nut M8

233281416

Unavailable

4010

Connector Plug

710004904

Unavailable

4360

Front Electronic Component Support

710007891

$22.00

4370

Hex. Flange Screw M6 X 16

210261650

Unavailable

4380

Grommet

705003264

Unavailable

4390

Panel Nut M6 X 1.0

250100208

Unavailable

8325

Brake Switch

710008326

$50.00

8800

Yaw Rate Sensor

710005658

Unavailable

8802

Hex. Flange Screw M6 X 16

210261650

Unavailable

130

Steering Position Sensor

219800354

$270.00

140

Hex. Cap Screw

207144044

$0.98

150

Elastic Stop Nut M4

232541484

Unavailable
